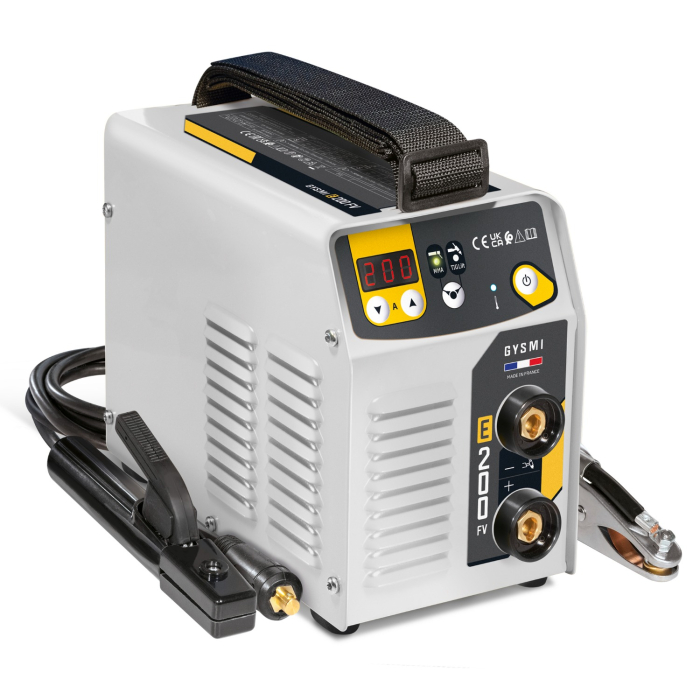

GYS GYSMI E200 FV MMA Welder (With Case)
The GYS GYSMI E200 FV MMA Welder is a compact, professional-grade inverter welder engineered for reliable performance on both 110V and 230V supplies. Thanks to its PFC (Power Factor Correction) and Flexible Voltage technology, it delivers stable welding even when used with long extension leads or generators. Supplied in a durable carry case with leads included, it’s perfect for workshop, on-site and mobile welding applications.
GYS GYSMI E200 FV MMA Welder (With Case).
The GYS GYSMI E200 FV is a high-performance MMA inverter welder designed for fabricators, engineers, tradespeople and on-site professionals who demand power, flexibility and reliability. Built around advanced inverter technology and microprocessor control, this welder delivers a consistently smooth arc, exceptional stability, and efficient power consumption. With the ability to run on both 110V and 230V supplies, plus full compatibility with generators and up to 100m extension leads, the GYSMI E200 FV is ideal for demanding welding environments. Whether you're welding steel, stainless steel, cast iron, rutile or basic electrodes, this machine is engineered to help you achieve high-quality results every time.
Features:
- Dual Voltage Operation (110V / 230V): Works seamlessly across different site power supplies.
- PFC – Power Factor Correction: Ensures energy efficiency, reduced power loss, and stable welding performance.
- Flexible Voltage (85–265V): Maintains output stability even with power fluctuations—ideal for on-site use.
- High Duty Cycle: Achieves up to 64% @ 200A (230V) for intensive welding sessions.
- Welds All Electrode Types: Suitable for Ø1.6–5.0mm rods including rutile, basic, cast iron, stainless steel, and cellulosic.
- Advanced Arc Control:
- Adjustable Hot Start – easy ignition on all metals.
- Arc Force – improves penetration and prevents sticking.
- Anti-Sticking – reduces the risk of electrode sticking.
- Lift TIG Capability: Supports smooth TIG welding when paired with an optional TIG torch with valve.
- Digital Display & Sealed Front Panel: Accurate amperage reading with dust-protected controls.
- Generator-Friendly: Operates reliably with generator tolerance of ±15%.
- Lightweight and Portable: Compact 5.5kg design with carry case included.
- Made in Europe (France): High manufacturing quality, durability, and reliability.
- Automatic Arc Release (TIG): Allows crater-free finishing during TIG welding.
- Model: GYS GYSMI E200 FV
- Amperage Range: 10–200A (230V) / 10–130A (110V)
- Input Voltage: 85–265V (110V / 230V 1-phase)
- Input Current: 16A (230V) / 20A (110V)
- Duty Cycle: 64% @ 200A (230V)
- No Load Voltage: 96V
- Minimum Generator Size: 10 kVA
- Electrode Diameter: Ø1.6–5.0mm
- Dimensions: 270 x 210 x 140 mm
- Cable Plug Size: 10–25
- Weight: 5.5kg
- Protection: PROTEC 400 overvoltage protection
Kit Includes:
- Carry case
- Earth clamp (1.6m / Ø16mm²)
- Electrode holder (2m / Ø16mm²)
The GYS GYSMI E200 FV MMA Welder is a versatile, reliable and professional solution for fabricators who need performance both in the workshop and on-site. Its dual-voltage capability, advanced inverter technology and superior arc stability make it an ideal choice for welding a wide range of materials with confidence and precision. Lightweight, portable and equipped with essential accessories, this machine delivers exceptional value and welding quality whether you're carrying out repairs, fabrication work or heavy-duty site welding.
The GYS GYSMI E200 FV operates on both 110V and 230V power supplies thanks to its Flexible Voltage (85–265V) technology. This makes it ideal for workshop use, site work and generator applications.
This machine can weld all major electrode types including rutile, basic, stainless steel, cast iron and cellulosic in sizes from Ø1.6mm to 5.0mm.
Yes. When fitted with an optional TIG torch with valve, the welder supports Lift TIG welding. This allows smooth arc initiation and features automatic arc release for crater-free finishing.
Yes. The E200 FV is generator-friendly with a ±15% tolerance and is recommended for use with a generator of at least 10kVA. It also performs well on long extension leads up to 100m.
The kit includes a heavy-duty carry case, a 1.6m earth clamp and a 2m electrode holder, giving you everything you need to start welding immediately.
Weighing just 5.5kg and supplied with a strong carry case, the E200 FV is extremely portable and ideal for mobile welding, repairs and on-site work.
hints and tips for using GYS GYSMI E200 FV MMA Welder
Start with the right power
Plug into the correct supply (110V or 230V) and, if you're using an extension lead, choose a heavy-duty cable. The GYSMI E200 FV tolerates long leads and generator use, but thicker cables help maintain stable power and a smooth arc.
Choose electrodes thoughtfully
Match electrode type and diameter to the job — thin sheets need smaller rods and lower settings, while thicker or rusty metals benefit from larger electrodes and a higher amperage. Take a moment to set the machine within the recommended range for best results.
Use the Hot Start gently
The adjustable Hot Start makes striking an arc easier. For delicate work choose a lower Hot Start, and for dirty or oxidised metal increase it slightly — just enough to help the arc without overheating the workpiece.
Let Arc Force help penetration
If the arc feels weak or sticks, try a small increase in Arc Force to improve penetration and stability. Make small adjustments and test on scrap so you can feel the difference before working on the final piece.
Anti-sticking saves time
Enable or rely on the Anti-Sticking feature when working with tricky rods or awkward positions. It reduces the chance of the electrode sticking, which keeps your workflow steady and reduces rod waste.
TIG lift basics
If you’re using the Lift TIG function, touch the tungsten to the work briefly to start the arc, then lift smoothly to begin welding. The automatic arc release helps avoid craters, so experiment with the timing to get a neat finish.
Keep the panel clean and dry
The front panel is sealed, but it’s good practice to keep the machine away from heavy dust and damp. Wipe down leads and connectors after use and store the unit in its case to extend its life.
Mind your duty cycle
The E200 FV has a strong duty cycle for its size, but if you’re running at high amperage give it short rests to avoid overheating. If you need long continuous welds, plan breaks or swap with a cooled unit where possible.
Practice on scrap first
Before committing to a critical piece, try a few beads on scrap material using your chosen electrode and settings. This helps you fine-tune amperage, arc control and travel speed so your finished welds look and perform better.
