GYS PROTIG 201 Flexible Voltage AC/DC TIG Welder
The GYS PROTIG 201 AC/DC FV TIG Welder is a professional, flexible-voltage TIG and MMA welding machine designed for precision welding across all metals, including aluminium, steel, stainless steel, copper and titanium. Offering high-frequency ignition, multiple AC/DC TIG processes and advanced user controls, it’s built for production, maintenance, pipework and on-site welding. With dual-voltage capability and robust French engineering, it delivers reliable performance wherever you work.

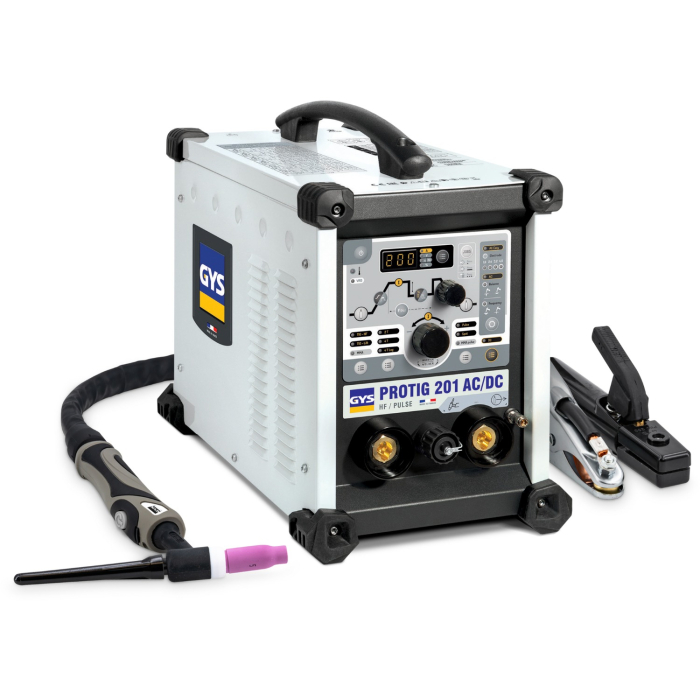

GYS PROTIG 201 AC/DC FV TIG Welder (With Accessories).
The GYS PROTIG 201 AC/DC HF FV is a high-performance TIG welding solution engineered for welders who need accuracy, flexibility and full control over their arc. Designed to weld all metal types up to 4–6 mm thick, this machine excels in fabrication shops, maintenance departments, pipework applications and mobile on-site operations. Thanks to flexible voltage technology (110V/230V) and integrated PFC, the PROTIG 201 performs perfectly even on weak mains supplies, long extension leads or generator power making it one of the most versatile AC/DC TIG welders in its class.
The intuitive front panel and digital interface offer precise adjustment of every parameter, including pre-gas, post-gas, upslope, downslope, pulse settings and spot welding modes. Whether you’re welding aluminium using AC, joining thin stainless using pulsed DC TIG, or switching to MMA with advanced Hot Start and Arc Force controls, the PROTIG 201 ensures stable performance and exceptional weld quality.
Key Features:
Advanced AC/DC TIG Welding
- Full AC/DC capability for welding all metals including steel, stainless steel, aluminium, copper and titanium
- AC TIG options for deep cleaning action on aluminium
- DC TIG, Pulsed DC TIG and SPOT TIG for thin sheet and precision work
- Secondary regulation for exceptional arc stability
- Automatic torch detection for latch or dual-button torches
Flexible Voltage + PFC Technology
- Operates from 85V – 265V for maximum on-site versatility
- Stable welding even with long extension leads or generator use
- PFC reduces energy consumption by up to 30% and suppresses voltage peaks
- PROTEC 400 for protection against supply surges up to 400V
Professional TIG Ignition + Trigger Control
- HF (high-frequency) start for contamination-free arc initiation
- Lift TIG mode for welding near electro-sensitive electronics
- 2T, 4T and 4T Log trigger modes for complete torch-side control
Enhanced MMA Welding Performance
- Compatible with rutile and basic electrodes up to Ø 4 mm
- Hot Start for easier arc ignition
- Anti-Stick for electrode release
- Adjustable Arc Force to prevent sticking during difficult welds
- Pulsed MMA for positional welding
- VRD safety function (optional activation)
Designed for Mobility & Durability
- Reinforced chassis with shock-resistant corner protection
- Lightweight and compact (10–15 kg depending on model variant)
- Stores up to 50 programs per process
- Digital display showing current/voltage during and after welding (DMOS/QMOS)
- Compatible with remote controls and foot pedals
Technical Data
- Input Voltage: 110V / 230V (Flexible Voltage 85V – 265V)
- Process: AC/DC TIG, Pulsed TIG, SPOT TIG, MMA
- Output Range AC TIG: 10 – 200 A (230V) / 10 – 160 A (110V)
- Output Range DC TIG: 5 – 160 A (230V/110V)
- Output Range MMA: 10 – 200 A (230V) / 10 – 140 A (110V)
- Pulse Frequency: 0.2 – 20 Hz
- Duty Cycle @ 40°C:
- TIG: 60% @ 110–115 A
- MMA: 60% @ 90 A
- No-Load Voltage: 70 V
- Dimensions: approx. 410 × 200 × 230 mm (DC model) / 240 × 410 × 360 mm (AC/DC model)
- Weight: 10–15 kg (model dependent)
- Minimum Generator Size: 7.5 kW
- Cable Plug Size: 35–50
Kit Includes
- 4 m TIG 26B Torch
- 2 m MMA welding lead
- 2 m earth return lead
- MMA kit
- Instruction manual
The GYS PROTIG 201 AC/DC FV is the ideal solution for welders who demand reliability, flexibility and precision from a compact machine. Whether working in the workshop or on-site, its powerful AC/DC performance, flexible voltage input and advanced TIG/MMA features make it suitable for welding aluminium, stainless steel, mild steel, copper alloys and more. Rugged, lightweight and packed with high-end capabilities, this French-built welder delivers outstanding results for professionals across fabrication, engineering and maintenance industries.
The PROTIG 201 AC/DC can weld all major metal types, including steel, stainless steel, aluminium, copper, and titanium. AC mode is ideal for aluminium and its alloys, while DC mode delivers excellent results on ferrous metals.
Yes. Thanks to Flexible Voltage (85–265V) and PFC technology, the machine runs reliably from generators and long extension leads, even where mains power is weak or inconsistent. A minimum generator size of 7.5 kW is recommended.
Yes. The PROTIG 201 offers HF start for clean, non-contact arc ignition, as well as Lift TIG for use in electrically sensitive environments such as automotive workshops.
The welder comes complete with a 4m TIG 26B torch, a 2m MMA electrode holder, a 2m earth return lead and an MMA welding kit. It is ready to use straight out of the box.
The PROTIG 201 AC/DC can weld metal sections up to approximately 4–6 mm depending on material type, joint design and operator technique. Thin sheet welding from as low as 0.3 mm is also possible using pulsed DC TIG.
Yes. The machine allows storage of up to 50 welding programs per process, enabling quick recall of preferred settings for repeat jobs or workshop procedures.
Yes. If you require more units than the quantity available, please contact us at sales@weldingsuperstore.co.uk and we will arrange additional stock for you. Lead times may vary.
Hints and Tips for Using GYS PROTIG 201 Flexible Voltage AC/DC TIG Welder
Take Time to Get Familiar with the Controls
The PROTIG 201 offers a wide range of settings, and exploring them at a relaxed pace can help you find combinations that work well for your style. Even small adjustments can gently improve arc comfort and weld appearance.
Choose the Right Tungsten for the Job
Using a suitable tungsten type and diameter can make the arc feel smoother and easier to guide. For example, many users find that using a dedicated tungsten for AC aluminium and another for DC steels keeps results more consistent.
Let the Machine Warm Up with You
Allowing a short warm-up period can help the welder stabilise, especially if the workshop temperature changes often. This can support a steadier arc as you begin your first weld of the day.
Make Use of the Flexible Voltage Feature
The flexible voltage capability can offer more convenience when moving between locations. Trying the machine on both 110V and 230V, where suitable, may help you understand how each supply affects arc behaviour.
Experiment with AC Balance on Aluminium
Adjusting the AC balance can gently influence cleaning action and penetration. Small tweaks can help you find a setting that feels smoother and produces cleaner results on different aluminium thicknesses.
Try Pulse Mode for Added Control
Pulse settings can help when you’re seeking a steadier bead or working on thinner material. Starting with lower pulse frequencies may make the rhythm easier to follow as you get used to it.
Develop a Comfortable Torch Angle
Keeping the torch at a relaxed, consistent angle can support better gas coverage and minimise turbulence. Many users find that a slightly lowered hand rest or support point can ease longer welds.
Check Gas Flow and Cup Size
A suitable gas flow and cup size help maintain good shielding around the weld pool. If you notice occasional porosity, adjusting the flow slightly or trying a different cup size may gently improve results.
Use Clean, Well-Prepared Materials
Even a brief clean of the joint area can make welding feel smoother and more predictable. Removing light oils, dust, or oxidation helps the arc behave more consistently.
Take Breaks to Maintain Comfort
Short breaks can help reduce fatigue, making torch control easier and welds more consistent. A steady, relaxed hand tends to make a noticeable difference in bead appearance.
