Kingsland Compact 65 Hydraulic Steelworker 415v

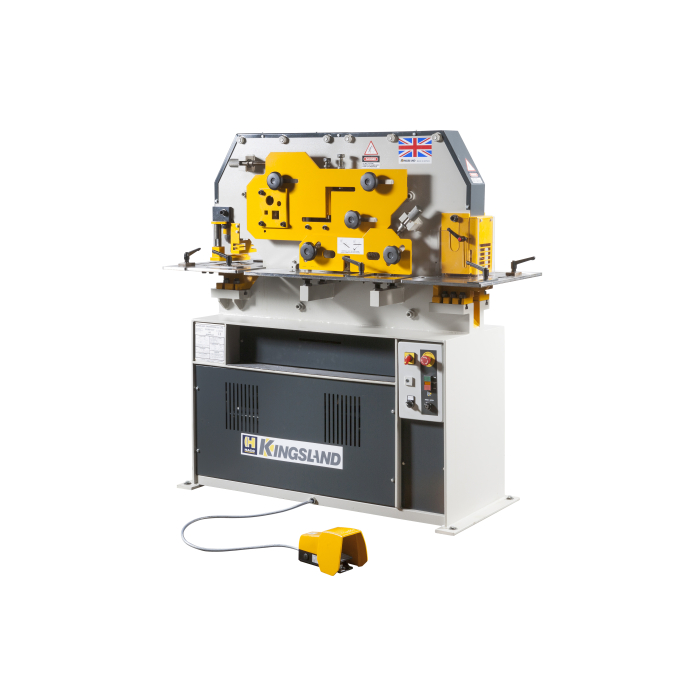

Kingsland Compact 65 Hydraulic Steelworker.

The Kingsland Compact 50, 65, and 80 series are versatile, high-performance hydraulic steelworkers designed for efficient production in various metalworking tasks. These machines come with 5 integrated workstations, making them ideal for punching, shearing, notching, and cutting. Built to last, they feature comprehensive safety guards, minimal maintenance needs, and straightforward setup, requiring only an electrical connection to get started.

5 Work Stations:

• Punch Station - The easy tool change system and swingaway stripper with fast manual adjustment assures a
  quick setup and is designed for a wide range of punching applications
• Section Cutting Station - The machines are fitted as standard with blades for cutting round and square bars. With extra
  equipment in this aperture, the machines are able to cut channel, beams or joist, T-s
• Angle Station - Cropping angle iron is possible for every angle between 45° and 90°, both internal and external
• Shearing - Specially designed blade approach angle to avoid the necessity to change blade settings
  when cutting thick or thin material and yet offer minimum distortion cropping
• Notching Station - This versatile station is standard equipped with a rectangular notch unit. The notch table has
  adjustable back and side stops. Side notch applications are also possible

Features:

• 5 Workstations: Punching, notching, shearing, section cutting, and angle cutting stations for versatile production tasks.
• Efficient Hydraulic Operation: Powered by a shielded foot pedal with an inching mode for precise workpiece positioning and tool alignment.
• Adjustable Stroke: Limit switches for accurate stroke length adjustment, offering maximum efficiency with automatic return functionality.
• Angle Cutting Station: Cut angles from 45° to 90° (internal and external) without machine adaptations. Flanges can be mitre-cut with precision.
• Low Maintenance Design: Centralised pressure lubrication system reduces maintenance, ensuring long-term reliable use.
• Heavy-Duty Equipment: Large tables on punch, shear, and notching stations come as standard, complete with adjustable hold-downs for safety and accuracy.
• Robust Construction: Durable steel-welded, interlocked design ensures stability during operations.
• Ready to Use: Freestanding units requiring only an electrical connection for immediate operation on 415v/3Ph/50Hz power.

Standard Equipment:

• 1000mm Ruled Length Stop
• Easy change Punch Holder, Ring, Adaptors
• Swing away Punch Stripper with simple Thumbscrew adjustment
• Universal Die Bolster for the punching of flats, angle and flanges of Channel and I Beam
• Blades for cropping angle
• Blades for cropping round and square
• Blades for shearing flat bar
• Rectangular Notch Punch and Dies
• Punch Support Table c/w Stops
• Notch Support Table c/w Stops
• Shear Support Table and Squaring Guide
• Adjustable Hold Downs for Shear, Angle and Section Stations
• Shielded Foot Pedal Control to both Punch and Shear ends
• Power Inching and Adjustable Stroke
• Remote Foot Pedal Control
• Manual and service tools
• Automatic Overload Relief on Hydraulic System
• Electric I.P. 55 Class T.E.F.C. Motor
• Low volt electrical control circuit
• Comprehensive Safety Guards to all Work Stations
• Complete Service Tool Kit

Data Specification:

Punching:

• Punching: 28 x 15mm
• Diameter x Thickness: 38 x 11mm
• Stroke Length: 55mm
• Standard Throat Depth: 220mm
• Largest Hole – Standard Equipment -38mm
• Largest Hole (Optional): 110mm
• Maximum Section: 160mm
• Working Height: 940mm

Shearing:

• Flat Bar - Max. Thickness: 200 x 20mm
• Flat Bar - Max. Width: 300 x 15mm
• Angle Flange Trim: 80 x 10mm
• Working Height: 940mm

Angle Cutting:

• 90° Cut: 120 x 12mm
• 45° Mitre Max 45 Degree: 80 x 8mm
• Working Height: 1140mm

Section Cutting:

• Round – 40mm
• Square – 35mm
• Channel/Beam - 102 x 51mm
• Tee - 76 x 10mm

Notching:

• Material Thickness: 10mm
• Width – Rectangle: 42mm
• Depth – Rectangle: 100mm
• Depth - Vee (*): 60mm
• Angle Flange - Max. Profile: 100 x 10mm

Corner Notching:

• Maximum Capacity: 150 x 4

Tube Notching:

• Max Diameter: 60mm

Bending:

• Sheet Bending Max Capacity - 150 x 5
• Bar Bending on Notch End - 150 x 12

Punching at Notch Station:

• Throat Depth: 110mm
• Maximum Capacity: 20 x 12mm

Technical Data:

• Motorpower: 4kW
• Net Weight - Std. Throat: 1250kg
• Gross Weight - Std. Throat: 1370kg
• Machine Dim. (L x W x H): 152 x 59 x 170cm
• Packed Dim. (L x W x H): 166 x 77 x 190cm
