AER 201 Portable Welding Fume Extractor

This portable extraction unit designed for intermittent use with low to medium amounts of welding smoke in closed or difficult-to-reach environments where standard fume extraction devices cannot be used.

£834.00 £695.00

In stock

Only 7 left

SKU

AER-20100000000-230V

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

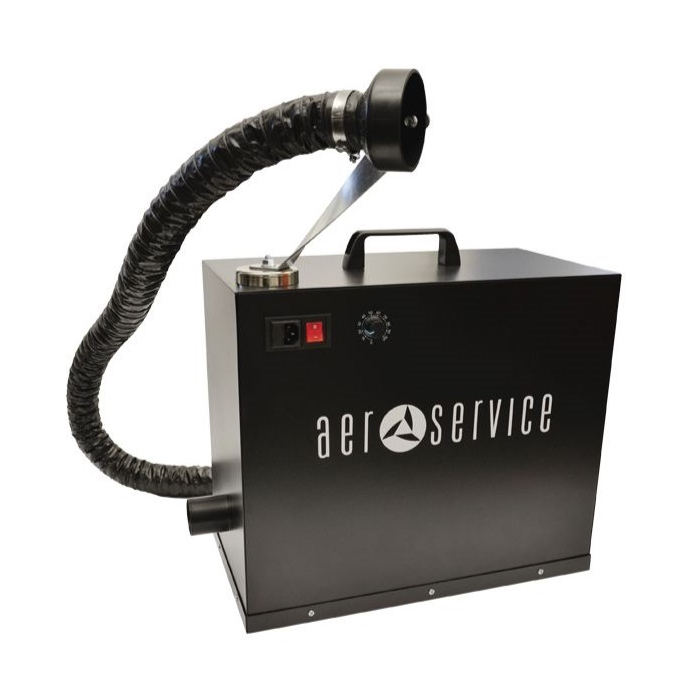

AER 201 Portable Welding Fume Extractor.

Portable filter unit for medium-low concentrations of pollutants in closed environments or confined spaces which are difficult to reach with normal fume extractor systems.

This unit is not suitable for use in potentially hazardous work areas.

Applications: MIG/MAG – MIG MAG PULSED – MMA WELDING – TIG WELDING

Features:

Lightweight and portable
Designed for use in confined spaces or hard to reach environments
Powder coated steel casing - resistant to accidental impacts
It has a DC motor with motor protection
2 meter flexible hose
Magnetic positioner that allows secure fixing in any position on the metal parts of the unit
Adjustable motor speed regulation

Data Specification:

Input Supply: 230V
Input Power: 1.1kW
Max. Flow Rate: 250m³/hr
Max Suction: 110m³/hr
Hose Ø: 50mm
Hose Length: 2000mm
Filter Type: 3 Stage Filter (Antispark filter + Cartridge filter + Active Carbon Filter)
Filtration Efficiency: >99%
Noise: 72dB
Dimensions (mm): W 530 x L 270 x H 450
Weight: 20KG

Supplied with:

Magnetic Hose
2mtr Flexible Hose (50mm Diameter)
