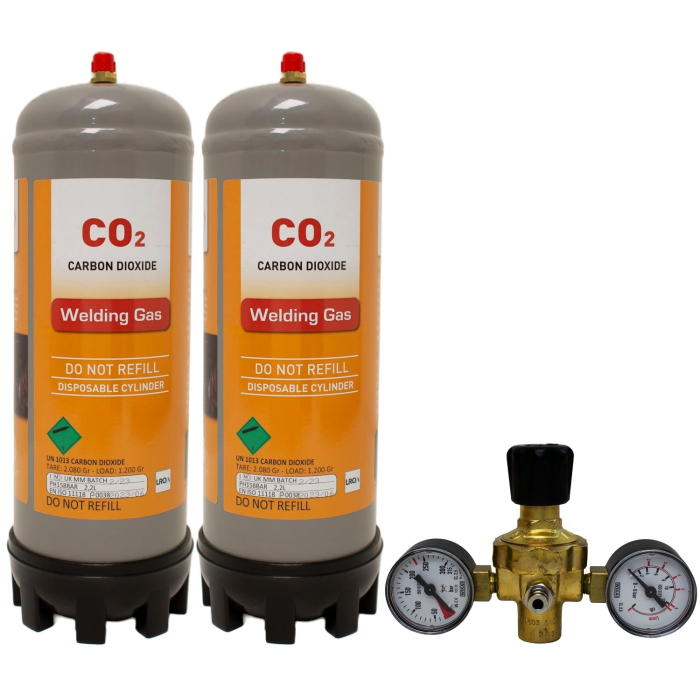

CO2 Disposable Gas Cylinder & Regulator Package
2 x CO2 disposable gas cylinders, suitable for most portable MIG welding machines. 1 x Twin gauge regulator for disposable cylinders.
Regulator fitted with 4mm push fit hose connector (additional adaptor available, see related products).
CO2 Disposable Gas Cylinder & Regulator Package.
Package includes two cylinders and a twin gauge regulator showing contents and gas flow in LPM.
Disposable CO2 gas bottles are ideal for those situations where you don't use a lot of gas but need to have it for a particular job, or people who don't want to be tied into a gas contract. Ideal for taking on site for small odd jobs.
Cylinder Details:
CO2 disposable gas bottles are suitable for most portable MIG welding machines. CO2 gas bottles are a handy, cost effective alternative to stationary industrial size gas cylinders.
2.2ltr Cylinders offers up to 55 minutes of welding time at 4Ltr/Min (gas flow rate)or 30minutes use at 6ltr/Min.
Most important factor when using the disposable gas bottles is to set the gas flow to the bare minimum, to obtain the maximum gas usage & welding time.
- Volume: 2,2 Litres
- Content: 1000gr.
- Dimension (mm): Diam. 102 x Length 300
- Weight/Tare (gr): 1745
- Material: Steel P355NB EN 10120
- Valve: Uni EN 10297 - UNI EN 13340
- Non Refillable Gas Bottle: EN 12205 TPED
Regulator Details:
Features:
- Twin gauges for cylinder contents and outlet pressure.
- Fitted with 4mm push fit hose connector (additional adaptor available, see related products)
- Reliable and safe, fitted with a relief valve which ensures safe venting of pressures.
Data Specifications:
- Inlet Pressure 150 bar
- Outlet pressure 0-6 bar
- Standard delivery flow <1m3/h
- Connection M10x1Rh
