Overview

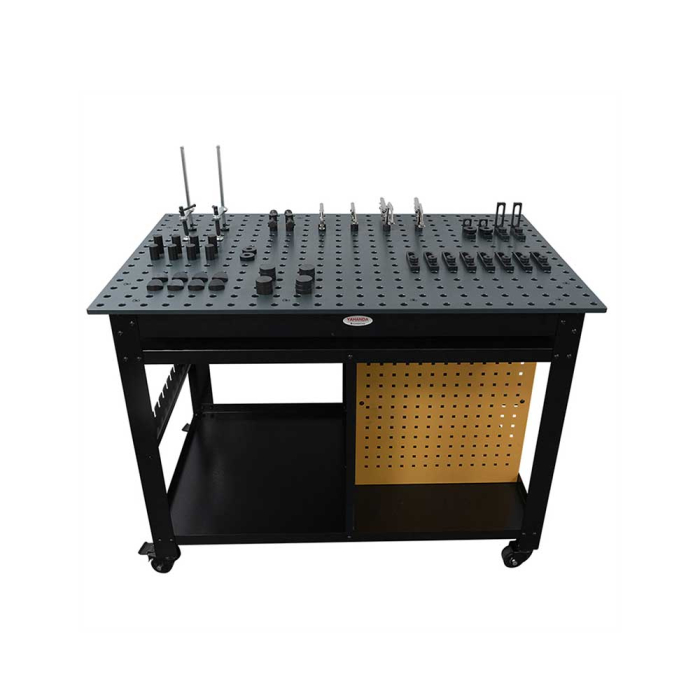

A high‑precision mobile welding and fabrication workstation designed for steel fixture assembly. Built for durability and performance, it features a D16 system compatible with 16 mm clamps and accessories, making it ideal for both workshop and on‑site operations.
Key Features
Technical Data
| Size | 1200mmx750mmx900mm |
| Weight | 160kg |
| Material | 2311 Tool steel (Annealing) |
| Table thickness | 13± mm |
| Hole pitch | 50±0.02mm (tolerance between any two holes) |
| Grid pattern | 50mm x 50mm (tolerance between any two holes) |
| Hole diameter | 16mm |
| Resistant to wear, corrosion, abrasion and scratching | |
| Hardness rating | HV450 - 550 Vickers |
| Chamfered edges, corners and boreholes | |
| Frame cabinet suppport | |
| Uniformly distributed load(UDL) | 900kg/m2 |
| Max loading | 810kg |
| Central concentrated load(CCL) | 600kg/m2, Max defelection ≤0.4mm |
