GYS GALAXY 320T Multi-Process Welder
The GYS GALAXY 320T Multi-Process Welder is a powerful 400V professional welding machine designed for MIG/MAG, TIG DC and MMA welding applications. Featuring advanced pulse technology, intelligent synergies and a robust industrial build, it delivers exceptional weld quality across steel, stainless steel and aluminium.

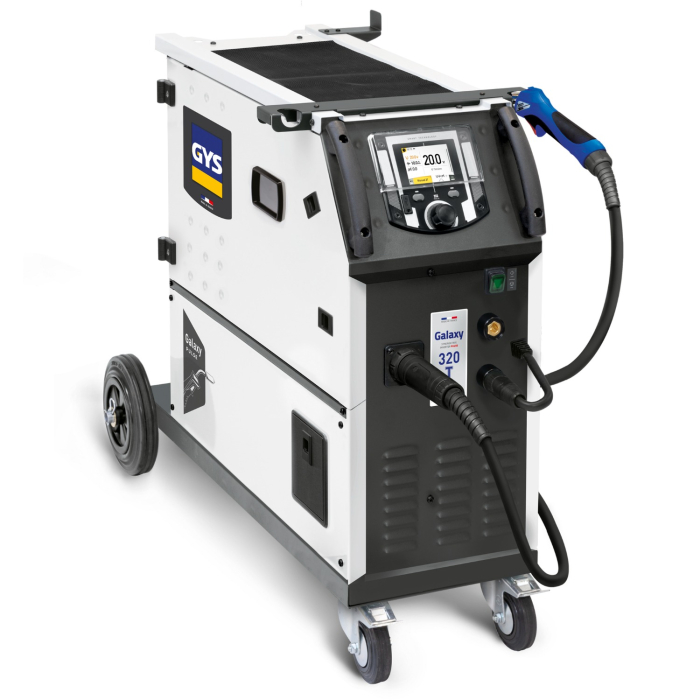

GYS GALAXY 320T Multi-Process Welder.
Built for demanding workshop and fabrication environments, the GYS GALAXY 320T offers precise energy control, reduced spatter and faster welding speeds. Its intuitive interface and advanced digital control make it suitable for both experienced welders and production settings where repeatable, high-quality welds are essential.
The pulsed MIG/MAG capability allows the GALAXY 320T to significantly reduce heat input and distortion, making it ideal for thin-gauge materials and aluminium welding. Combined with over 40 pre-programmed synergies and full customisation options, this machine provides outstanding flexibility for a wide range of industrial welding tasks.
- Multi-process welding: MIG/MAG, TIG DC Lift (Pulse) and MMA DC (Pulse)
- Pulsed MIG/MAG welding for reduced spatter, improved bead appearance and lower distortion
- 4 MIG/MAG welding modes: Standard, Pulse, ModulArc and Manual
- Up to 30% faster welding speeds using pulse arc technology
- 4-roller motorised wire feeder with digital encoder for smooth and consistent wire feed
- Over 40 synergic programs for steel, stainless steel, aluminium and brazing wires
- 3.5” multilingual colour HMI with Easy and Expert display modes
- Job memory for up to 200 programs for repeat welding tasks
- USB connectivity for software updates, job transfer and machine configuration
- Traceability compliant with EN 3834
- IP23S rated for tough industrial environments
- Integrated gas bottle holder (up to 20L / 4m³)
- LED lighting on wire feeder and spool area for improved visibility
Technical Data:
- Input Voltage: 400V (Three Phase)
- Welding Processes: MIG/MAG Pulse, TIG DC Lift Pulse, MMA DC Pulse
- Maximum Welding Current: Up to 320A
- MIG Wire Diameter (Steel/Stainless): 0.6 – 1.0 mm
- MIG Wire Diameter (Aluminium): 0.8 – 1.2 mm
- Flux-Cored Wire Diameter: 0.9 – 1.6 mm (polarity reversible)
- Electrodes: Basic and rutile
- Protection Rating: IP23S
Kit Includes:
- GYS GALAXY 320T Power Source
- MB36 MIG Torch – 4m
- Earth Clamp
The GYS GALAXY 320T is an excellent choice for professional workshops, fabrication businesses and industrial users looking for precision, flexibility and reliability. With advanced pulse control, intelligent software and rugged construction, it is designed to deliver consistent, high-quality welds day after day.
| Brand | GYS |
|---|
The GALAXY 320T supports MIG/MAG (including pulsed), TIG DC Lift (pulsed) and MMA DC (pulsed) welding, making it suitable for a wide range of professional applications.
Yes, the pulsed MIG/MAG function and ModulArc mode make it particularly effective for welding aluminium, including thin-gauge materials, with reduced distortion and excellent bead appearance.
Yes, the GALAXY 320T includes over 40 synergic programs for materials such as steel, stainless steel, aluminium and brazing wires, helping optimise settings automatically.
Yes, user profiles and job memory allow multiple welders to store and recall their preferred settings, making it ideal for shared workshop environments.
The GYS GALAXY 320T operates on a 400V three-phase power supply and is designed for professional and industrial workshop use.
Hints and Tips for Using GYS GALAXY 320T Multi-Process Welder
Take advantage of synergic programs
The built-in synergic settings are designed to help you get consistent results quickly. Selecting the correct material and wire type allows the machine to automatically adjust key parameters, which can be especially helpful when switching between jobs.
Use pulsed MIG for thinner materials
Pulsed MIG welding helps control heat input, which can reduce distortion and improve weld appearance. This is particularly useful when working with aluminium or thin-gauge stainless steel.
Save jobs for repeat work
If you regularly weld the same materials or components, saving your settings as a job can save time and improve consistency across multiple welds.
Switch display modes to suit experience level
The Easy mode offers a streamlined interface for day-to-day welding, while Expert mode provides deeper control for experienced welders who want to fine-tune every stage of the welding cycle.
Keep the wire feed system clean
Regularly checking the wire feed rollers and liner can help maintain smooth wire feeding and reduce the risk of welding interruptions, particularly in high-duty environments.
Use USB features for updates and backups
Backing up your settings and keeping the machine software up to date via USB can help ensure reliable performance and make it easier to transfer configurations between machines if needed.
