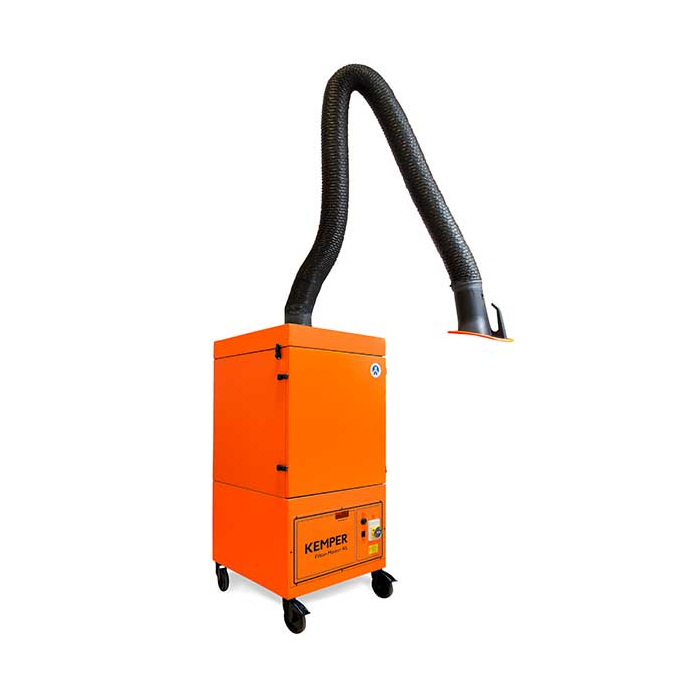

Kemper FilterMaster XL Fume Extraction Filter Unit
The Kemper FilterMaster XL Fume Extraction Unit provides reliable and efficient smoke extraction for high-demand welding applications. Designed with a cleanable filter system and W3 IFA certification, it's perfect for continuous use with all materials, including high-alloy steels. Its advanced filtration technology ensures maximum protection from ultra-fine particles, making it an essential tool for a safe and productive work environment.
Kemper FilterMaster XL Fume Extraction Filter Unit.
The Kemper FilterMaster XL is an advanced fume extraction unit that combines high performance with user-friendly operation. Featuring a KemTex® ePTFE membrane filter cartridge, it effectively captures particles below 0.1 µm, ensuring superior air quality for your workspace. With its automatic filter cleaning system and flow-optimized exhaust hood, this unit is ideal for non-stop operation in demanding welding environments, offering top-tier health protection for your team.
Applications:
- Suitable for all materials, including high-alloy steel
- High levels of smoke and particles
- Non-stop operation
Benefits:
- High efficiency due to automatic filter cleaning
- Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
- Best health protection for employees by use of KemTex® ePTFE filter cartridge with surface filtration
- Safe operation by rotation field control
Properties:
- 360 degrees rotating exhaust hood with damper
- W3/IFA certified
- Automatic filter cleaning
- KemTex® ePTFE filter cartridge
- Rotation field control
- Exhaust arm up to 4 m
- Rotating exhaust hood
Filter:
- Filter Stages - 1
- Filter Method - Cleanable filter
- Filter Cleaning Method – Rotating nozzle
- Filter Surface - 10 m²
- Type of filter – Filter cartridge
- Filter material - ePTFE membrane
- Filter efficiency - > 99.9 %
- Dust classification - M
Technical Data:
- Extraction capacity - 1000 m³/h
- Dimensions (w x t x h) - 643 x 816 x 1457 mm
- Weight - 155 kg
- Noise level - 69 dB(A)
Additional Information:
- IFA-Certification - W3-Approved
- Fan type – Radial fan
- Compressed air supply – 5-6 bar
