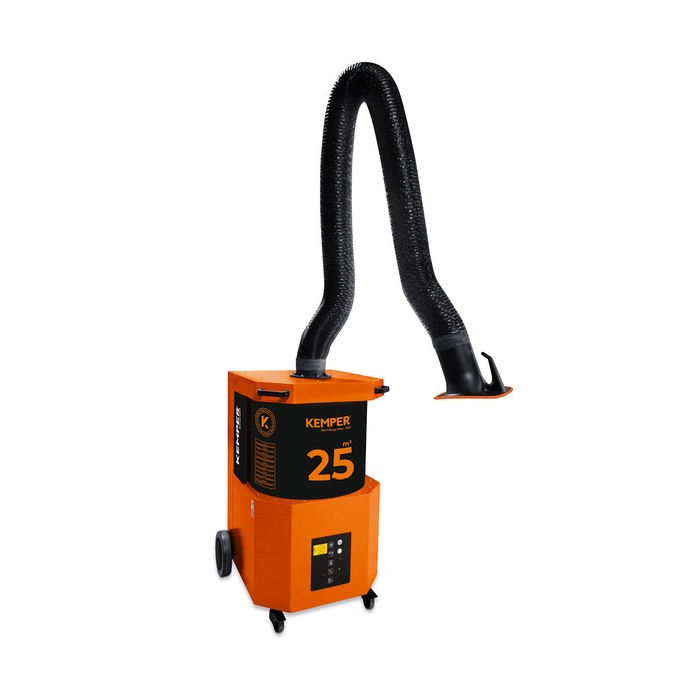

Kemper SmartFil Mobile Fume Extractor

Kemper SmartFil Mobile Fume Extractor.

The Kemper SmartFil Extraction Filter Unit is engineered to provide superior protection in welding environments that generate medium amounts of fumes and dust. Its 25 m² filter surface ensures efficient, long-lasting fume extraction, while the flow-optimized exhaust arm reduces adjustments during operation. With features like safe filter changes, automatic start-stop functionality, and certified safety, the SmartFil is an ideal choice for frequent welding tasks across various workplaces.

Applications:

• Suitable for all materials, including high-alloy steel
• Medium levels of smoke and dust
• Frequent use
• Alternating work places

Benefits:

• Exhaust arm requires less adjustment due to flow-optimised exhaust hood design
• Increased safety due to filter monitoring
• Increased safety with safe filter change
• Very economic due to long lasting high capacity filters

Properties:

• 360 degrees rotating exhaust hood with damper
• 25m² filter surface
• Compact and solid design
• W3/IFA certified
• Automatic Start-Stop (optional)
• Lighting in the hood (optional)
• Exhaust arm 3 m

Filter:

• Filter Stages - 2
• Filter Method - Storage filter
• Filter Surface - 25 m²
• Type of filter – Safe Change Filter

• Filter material - Cellulose with polyester nanofibre fleece
• Filter efficiency - > 99.5 %
• Filter class – E12
• Additional filters – Pre-filter (aluminium)

Technical Data:

• Extraction capacity - 1100 m³/h
• Dimensions (w x t x h) - 795 x 836 x 1169 mm
• Weight - 131 kg
• Motor power - 1.5 kW
• Power supply - 3 x 400 V / 50 Hz
• Rated current - 3.1 A
• Control voltage - 24 V, DC
• Noise level - 70 dB(A)

Additional Information:

• IFA-Certification - W3-Approved
• Fan type – Radial fan
