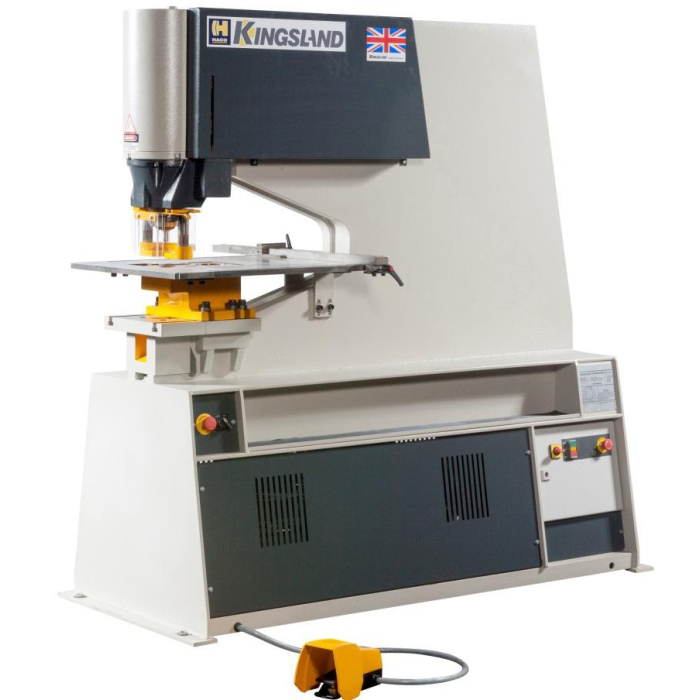

Kingsland Single Punch 80P Hydraulic Punching Machine
The Kingsland Hydraulic Single Punching Machines are built for strength and versatility, featuring all-steel welded construction with a deep throat design for efficient punching. With models available ranging from 60 to 80 tons, these machines deliver exceptional precision and can handle various materials. Compatible with a wide range of tooling, they are a flexible solution for heavy-duty workshop needs.
Kingsland Single Punch 80P Hydraulic Punching Machine.
Kingsland Hydraulic Punching Machines offer robust, all-steel construction designed for durability and precision. With a throat depth of 625mm as standard, these machines are engineered for heavy-duty performance, ideal for a wide range of applications such as punching plate, flat bar, and angle iron. Available in models from 60 to 80 tons, these punching machines are compatible with tooling from other brands without the need for special modifications.
Key Features:
- Fully adjustable stroke for versatile performance
- Low-power inching and customizable stroke length
- Universal die bolster, capable of punching up to 57mm diameter
- Large punch table with removable table block for overhanging channel and joist flange punching
- Minimal maintenance requirements
- Suited for multiple tasks, including crimping, tube notching, bar bending, and punch press applications
- Standard deep throat depth for added flexibility
- Hydraulic system overload relief for safety and reliability
- Interchangeable bearings, seals, and valves readily available from hydraulic equipment suppliers
Optional machine attachments are also available to enhance functionality.
Standard Equipment:
- Heavy Duty Punch Support Table complete with Back Gauge and Side Stops
- Set Round Punch & Die
- Swing away Punch Stripper with simple adjustment
- Universal Die Bolster for the punching of flats, angle and flanges of Channel and I Beam
- Shielded Foot Pedal
- Power Inching and Adjustable Stroke
- User Manual
- Machine painted in light grey RAL 7044, dark grey RAL 7031 and yellow RAL 1007
- Automatic Overload Relief on Hydraulic System
- Electric I.P. 55 Class ‘F’ T.E.F.C. Motor
- Low volt electrical control circuit
- Complete Service Tool Kit
- New Power Saving Electric BoxLow volt electrical control circuit
- Comprehensive Safety Guards to all Work Stations
- Complete Service Tool Kit
Data Specification:
Punching:
- Rated Capacity: 80 Ton
- Maximum Capacity: 28 x 20mm
- Diameter x Thickness: 57 x 10mm
- Stroke Length: 55mm
- Standard Throat Depth: 625mm
- Deep Throat Model DP: 305 + 305mm
- Deep Throat Model DPX: 305 + 625mm
- Largest Hole (Optional): 160mm
- Maximum Section: 305mm
- Working Height: 1075mm
Corner Notching:
- Maximum Capacity: 250 sq x 2
Tube Notching:
- Max Outside Diameter: 83
Bending:
- Max Bar Bending - 250 x 15
- Max Sheet Bending - 500 x 3
Technical Data:
- Motorpower: 7,5kW
- Net Weight - Std. Throat: 1610kg
- Gross Weight - Std. Throat: 1745kg
- Machine Dim. (L x W x H): 176 x 71 x 183cm
- Packed Dim. (L x W x H): 191 x 86 x 200cm
