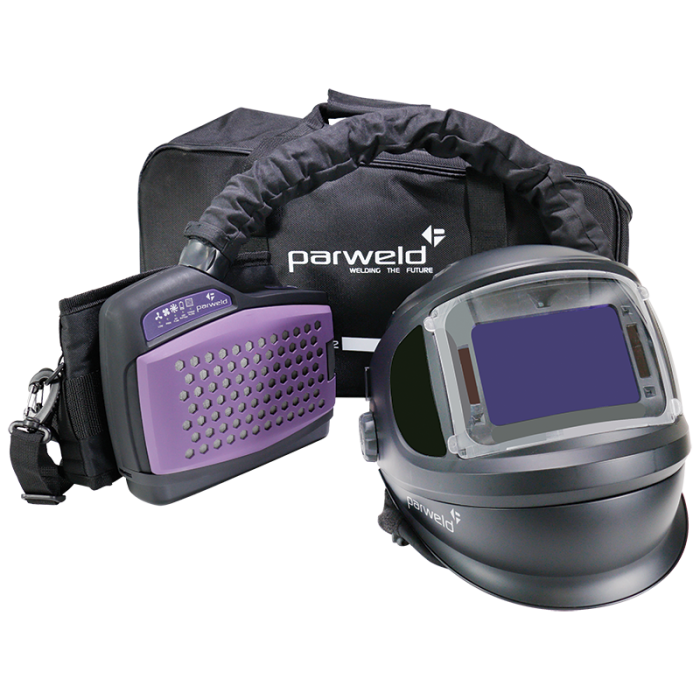

Parweld XR943A Welding and Grinding PAPR Helmet

Parweld XR943A Welding and Grinding PAPR Helmet.

Designed for welders working in environments with airborne particulates, the Parweld XR943A delivers advanced respiratory protection with a TH3P-certified filtration system. The helmet features a flip-up front for seamless transition between welding and grinding, a True Colour Auto-Darkening Filter (ADF) for crystal-clear visibility, and multiple adjustable settings to enhance comfort and performance. Its ergonomic design includes a comfort belt with detachable shoulder straps, reducing fatigue during extended use. Audible and vibration alerts keep users informed of system status, ensuring safe operation at all times.

Key Features:

• Flip-Up Front Design – Effortlessly switch between welding and grinding.

• Wide-View Grinding Visor – Expansive field of vision for precision tasks.

• True Colour ADF – Optical clarity with a 1/1/1/1 rating.

• Variable Shade Control (DIN 4-13) – Adjustable settings for various welding applications.

• Gradual Lightening Feature – Reduces eye strain during extended use.

• Multiple Operating Modes – Auto Shade, High-Speed Tacking, Weld, Grind, and Cut modes.

• Settings Memory Function – Quickly recall preferred configurations.

• Ergonomic, Adjustable Headgear – Secure and comfortable fit for all-day wear.

• Two-Speed Airflow Control – Choose between 170nl/min or 220nl/min for optimal ventilation.

• Lightweight Design (1.1kg) – Reduces neck and shoulder strain.

• Audible and Vibration Warnings – Stay informed about filter and battery status.

Technical Specifications:

• Weight: 1.097 kg

• Viewing Size: 108mm x 74mm (4.56" x 3.20")

• Helmet Material: High Impact Polyamide Nylon

• Air Flow Rate: 170 or 220nl/min

• Battery: 14.8V Li-ion Rechargeable

• Charging Time: Approx. 2.5 hours

• Run Time: 11 hours (170nl/min), 9 hours (220nl/min)

• Noise Level: Maximum 60dB(A)

• Pre-Filter: Carbon (Odour)

• Helmet Light State: DIN Shade 3

• Helmet Dark State: DIN Shade 4-8/9-13 (Variable)

• UV/IR Protection: Permanent Shade DIN16

• Operating Temperature: -5°C to +55°C (23°F to 131°F)

• Storage Temperature: -20°C to +70°C (-4°F to -158°F)

• Impact Rating: E (120 m/s)

• Certification: EN12941:1998, A2:2008, BS EN 175, TH3 P R SL, BS EN 150 16321-1

What’s Included:

• PAPR Respiratory Filter System

• XR1020 – Flip-Up Welding & Grinding Helmet (with Face Seal & Air Duct)

• XR1021 – Air Duct & Internal Diffuser Assembly

• XR1022 – Face Seal & Fixing Kit

• XR423 – Front Cover Lens

• XR353 – Auto-Darkening Filter (ADF)

• XR435 – Side Window Replacement Kit (with Obscure Cover)

• XR433 – Grinding Protective Lens (Curved)

• XR434 – Inside Cover Lens (ADF)

• XR342 – Adjustable Headband

• XR372 – Sweatband

• XR373 – Headband Fixing Hand Nuts (Pair)

• XR436 – Diopter Holder Bracket (Pair)

• XR344 – Hose Clip for Headband

• CR2450 – Battery (Single)

The Parweld XR943A PAPR Helmet is the perfect solution for welders needing reliable respiratory protection in high-particulate environments. Combining a cutting-edge auto-darkening welding lens, a flip-up grinding visor, and an advanced PAPR system, it ensures both safety and efficiency. Whether working with stainless steel, aluminium, or zinc-coated materials, this helmet provides superior clarity, comfort, and protection. Invest in the XR943A for a seamless and safe welding experience.
