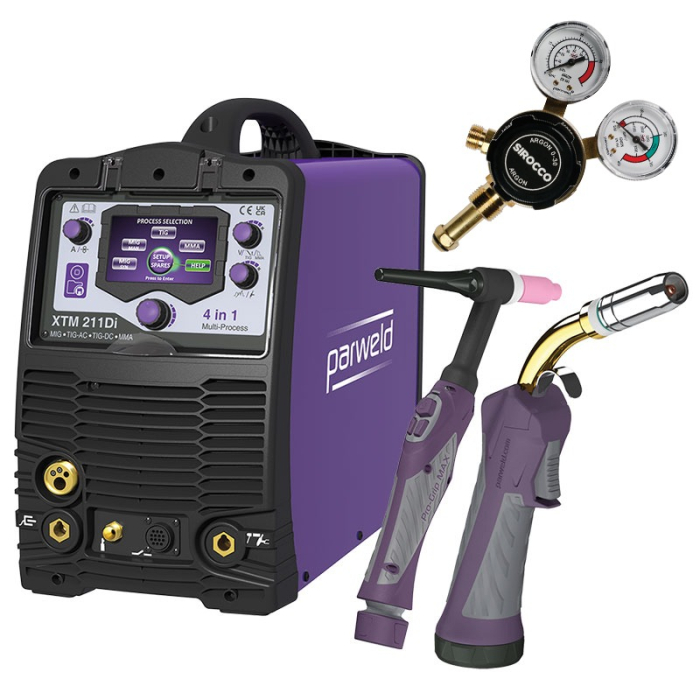

Parweld XTM 211Di Multi-Process 4-in-1 Welding Inverter Package
The Parweld XTM 211Di is a highly versatile multi-process welding inverter designed for MIG, AC TIG, DC TIG, and MMA welding. Ideal for welding steel, stainless steel, and aluminium, this machine features auto polarity switching and an intuitive digital interface, making it perfect for workshop and on-site applications.
Package includes Parweld Pro-Grip Max 250A 3mtr Torch, Parweld WP26 4mtr (12.5ft) TIG Torch, Argon Regulator, 5kg MW508 MIG Welding Wire, CKE403 MMA Lead, 3m Input Cable, 3m Earth Lead and Gas Hose.
Parweld XTM 211Di Multi-Process 4-in-1 Welding Inverter Package.
The Parweld XTM 211Di is engineered for maximum flexibility, allowing seamless switching between welding processes. With its advanced auto polarity switching, users no longer need to manually change work lead connections, enhancing efficiency and ease of use. The instant swap feature between MIG and TIG at the touch of a torch trigger makes it particularly well-suited for pipe welding and multi-process workshops. Equipped with a large, high-quality colour screen and a multilingual digital interface, this inverter ensures an effortless setup, even for those with minimal welding experience.
Features:
- 4-in-1 Multi-Process Welding: Supports MIG, AC TIG, DC TIG, and MMA welding.
- Auto Polarity Switching: No need to manually change lead connections.
- Intuitive Digital Interface: Large colour screen with multi-language functionality for easy operation.
- MIG Torch Parameter Control: Adjust settings directly from the torch handle with an OLED digital display.
- HF Start TIG: Ensures superior arc starting performance.
- Quick Process Switching: Instantly swap between MIG and TIG with one touch.
- Rapid Synergic Setup: Automatically sets welding parameters for MIG, TIG, and MMA.
- Pulse TIG Function: Provides superior arc control and precision.
- Memory Function: Save and recall welding programs for all processes.
- Spool Compatibility: Compatible with 15kg (300mm) and 5kg (200mm) wire spools.
- Includes Essential Accessories: Supplied with MMA lead set, input cable, and two gas hoses.
Technical Data:
- Weight: 27.8 kg
- Dimensions: 615 × 275 × 495 mm
- Phase: Single Phase
- Machine Style: Compact, Portable
- Machine Type: Inverter
- Maximum Current: 140A DC, 200A DC
- Duty Cycle: 200A @ 25%
- Input Voltage: 110V 1P, 230V 1P (Dual Voltage, Smart Switching)
- Voltage Ranges: MMA (110-200V), MIG (140-200V), TIG (140-200V)
- Wire Size: 0.6-1.0mm
- Spool Size: 200mm (5kg), 300mm (15kg)
- Input Current (Eff): MIG – 21.4A @ 110V / 15A @ 230V, TIG – 20.5A @ 110V / 11.3A @ 230V, MMA – 20.6A @ 110V / 15.4A @ 230V
- Minimum Fuse Rating: 16A, 32A
- KVA Requirement: 7.8
- Generator Size (AVC Required): 10 KVA
- Enclosure Protection: IP23S
- Cooling System: Air, Fan, Forced
- Compliance: IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS
What's Included:
- Parweld Pro-Grip Max 250A 3m MIG Torch
- Parweld WP26 4m (12.5ft) TIG Torch
- Argon Regulator
- 5kg MW508 MIG Welding Wire
- CKE403 MMA Lead
- 3m Input Cable
- 3m Earth Lead
- Gas Hose
- Digital User Interface
- Multi-Language Functions
- Mobile App Option for Remote Device Operation
Designed for both professional and workshop use, the Parweld XTM 211Di is a powerful and adaptable welding inverter. Its advanced technology, intuitive controls, and robust build make it a reliable choice for those who require precision and efficiency in multiple welding processes. Backed by a 5-year warranty, this machine ensures durability and long-term performance, making it a smart investment for any welder.
| Brand | Parweld |
|---|
