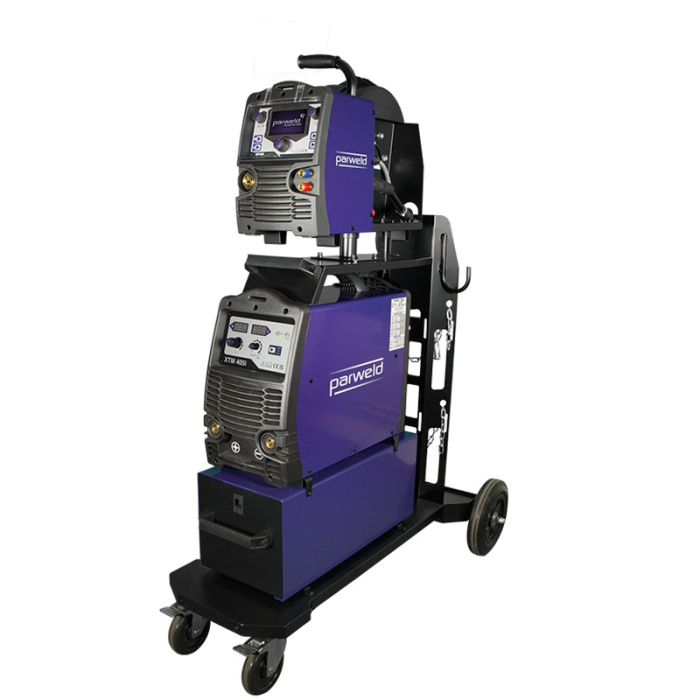

Parweld XTM 405i Multi-Process MIG Inverter Welder
Powerful, versatile, and packed with intelligent features, the Parweld XTM 405i is a 400A multi-process inverter welder built for demanding industrial applications. With MIG, Lift TIG, and MMA capabilities, it’s designed to deliver premium performance with user-friendly controls and energy-saving inverter technology.
Parweld XTM 405i Multi-Process MIG Welder.
The Parweld XTM 405i Multi-Process Synergic MIG Welder is a high-output three-phase welding machine engineered for professional and industrial use. Offering MIG, Lift TIG, and MMA processes, this inverter-based welder features a separate wire feeder with an intuitive colour display, synergic control for simplified parameter adjustments, and advanced memory functions. Designed for precision and ease of use, it’s supplied ready-mounted on a robust trolley with a built-in storage drawer and is upgradeable to a water-cooled system for continuous heavy-duty welding.
Key Features:
- Multi-process capability: MIG, Lift TIG, and MMA welding
- 400A output with inverter technology for energy efficiency
- Synergic MIG control for automatic parameter adjustment
- Advanced digital interface with intuitive graphical display
- Memory function allows storage and recall of welding programs
- Separate 4-roll wire feed unit with clear protective visor
- 2T/4T trigger latching modes for flexible operation
- Fan-on-demand cooling system improves efficiency and reduces dust intake
- Supplied fully assembled on a heavy-duty trolley with storage drawer
- Optional water cooler upgrade available in place of the drawer
Technical Specifications:
- Weight: 90 kg
- Dimensions (L x W x H): 1050 × 520 × 1140 mm
- Phase: Three Phase
- Machine Style: Separate
- Machine Type: Inverter
- Maximum Current: 400A DC
- Duty Cycle: 400A @ 60% Duty Cycle
- Input Voltage: 400V 3P
- Voltage Range (MIG): 15.0–34.0V
- Feed Box: 4 Roll Drive
- Input Current (Eff): 21.2A (MIG)
- Output Type: DC
- Wire Size Compatibility: 1.0–1.6 mm
- Spool Size Support: 200 mm (5 kg), 300 mm (15 kg)
- Minimum Fuse Rating: 32A
- KVA: 22
- Generator Size (Requires AVC): 25 KVA
- Cooling Method: Air, Fan, On Demand
- Enclosure Protection: IP23S
- Conformance: IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant
- Warranty: 5 Year Warranty
Kit Includes:
- TR009 Trolley with storage drawer
- Separate wire feeder unit
- 3m input power cable
- 3m earth lead
- Gas hose
The Parweld XTM 405i Synergic MIG Welder is designed for professional fabricators who demand reliability, performance, and flexibility in one machine. Its synergic control takes the guesswork out of MIG setup, while the user-friendly interface makes switching between processes seamless. Backed by a 5-year warranty, the XTM 405i is a long-term investment for workshops seeking high output and premium weld quality. Upgradeable to a water-cooled system, it’s ready to grow with your needs.
| Brand | Parweld |
|---|
