Parweld XTS 163 MMA Inverter Package
Compact, powerful, and ready for action – the Parweld XTS 163 MMA (stick) inverter is your go-to solution for dependable arc welding. Whether you’re working on light fabrication, maintenance, or agricultural repairs, this reliable machine delivers high performance and portability in one rugged unit.
Supplied with MMA leads, welding helmet and rigger gloves.
Parweld XTS 163 MMA Inverter.
The Parweld XTS 163 MMA Inverter Package is a lightweight and durable stick welding solution built for professionals and serious DIY users. Featuring the latest inverter technology, this single-phase machine delivers smooth and stable arc performance with electrodes up to 3.2mm. Whether you're in the workshop or on-site, the XTS 163 is ideal for MMA (manual metal arc) welding applications and can also be adapted for TIG welding with an optional torch and gas supply.
Engineered to perform in fluctuating power environments, the XTS 163 operates reliably even when powered by generators. Housed in a tough steel case and weighing just 4.7kg, it's built to last while remaining easy to transport. With built-in arc force, hot start, and over-voltage protection, this versatile inverter offers enhanced control and safety across every weld.
Key Features
- 230V single-phase input
- Maximum output of 160A DC
- Lift TIG mode for steel and stainless welding
- Digital amperage display for accurate control
- Electrode re-striking with hot start function
- Arc force for easier striking and smoother welding
- Lightweight and portable – only 4.7kg
- Robust steel casing for durability
- Over-voltage and over-current protection
- 35-50mm twist-lock cable connections
Technical Data
- Input Voltage: 230V 1P
- Max Output Current: 160A DC
- Duty Cycle: 160A @ 25%
- Output Type: DC
- Open Circuit Voltage: 45V
- Max Electrode Size: 3.2mm
- Input Current (Eff): 15.9A
- KVA: 8
- Generator Size (with AVC): 10 KVA
- Cooling System: Air (fan-forced)
- Enclosure Rating: IP23S
- Weight: 4.7kg
- Dimensions: 285 x 120 x 250mm
- Cable Connection: 35-50 Dix
- Minimum Fuse Rating: 16A
- Conformity: IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS

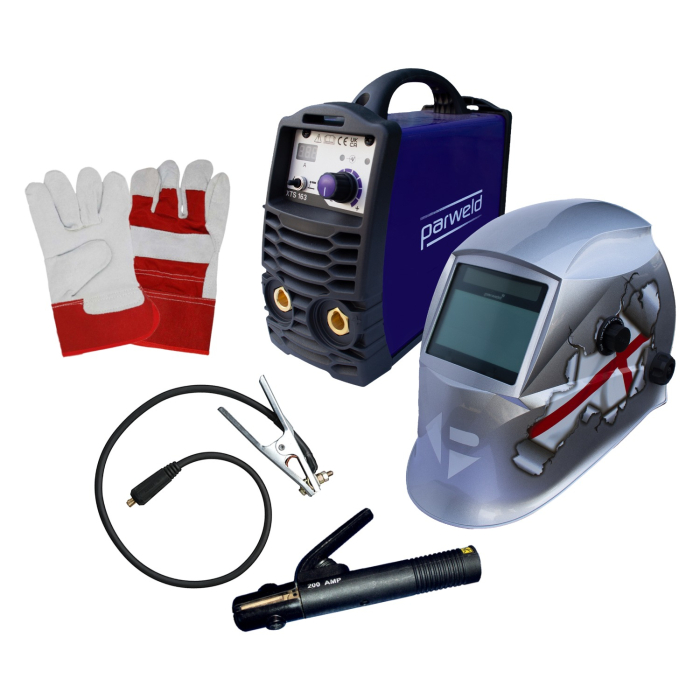

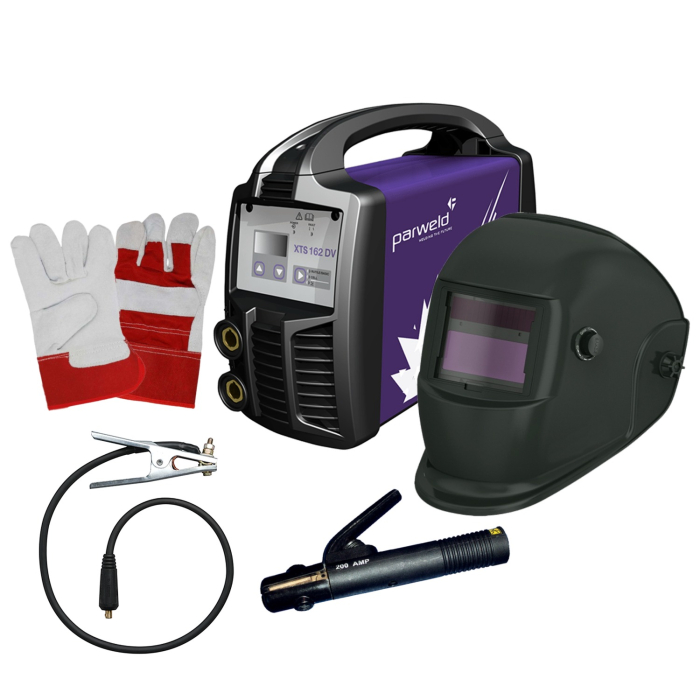

Kit Includes
- 3m electrode holder
- 3m earth lead
- Light reactive welding helmet
- Rigger gloves
- 5m input power cable (no plug fitted)
The Parweld XTS 163 MMA Inverter is an ideal arc and stick welding machine for anyone needing a compact, high-performance solution that doesn’t compromise on reliability or safety. With TIG capabilities, digital controls, and compatibility with generator power, it’s perfect for maintenance, training, agricultural, and light industrial use. Backed by a 5-year warranty, the XTS 163 is a versatile investment for any welding setup.
