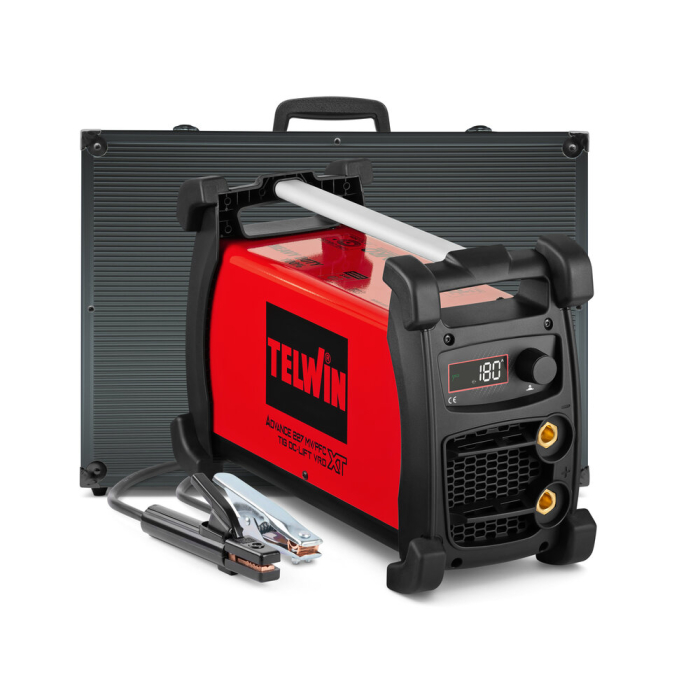

Telwin Advance 227XT MV/PFC VRD MMA Welder Dual Voltage

Telwin Advance 227XT MV/PFC VRD MMA Welder Dual Voltage.

Compact, rugged, and highly versatile, the Telwin Advance 227XT MV/PFC VRD is a professional-grade dual-voltage inverter welder designed for powerful and reliable MMA and TIG (Lift) welding in both workshop and on-site environments. Delivering up to 200A of DC output, it features advanced MV/PFC (Multi-Voltage/Power Factor Correction) technology for consistent performance even on unstable power supplies or generators, along with VRD (Voltage Reduction Device) for enhanced safety. With excellent arc control supported by hot start, arc force, and anti-stick functions, this welder ensures smooth, precise results across materials including steel, stainless steel, titanium, copper, and cast iron. Housed in a durable, shock-resistant aluminium case and weighing just 11.64 kg, the Telwin Advance 227XT offers outstanding portability without compromising on performance.

Key Features:

• MMA and TIG welding with Lift ignition in DC mode
• Dual voltage operation (100-240V) – perfect for site work and unstable power supplies
• MV/PFC for reduced power consumption and optimum efficiency from any power source
• VRD for operator safety in damp or hazardous environments
• Welds rutile, basic, stainless steel, and cast iron electrodes (Ø 1.6–4.0 mm)
• Hot start, arc force, and anti-stick functions for superior arc control
• LCD display for clear visualisation of settings
• Compatible with motor generators (230V ±15%)
• Uses long extension cables up to 250 metres
• Rugged aluminium carry case and quick connectors (Ø 50mm) for ease of use
• Compact, lightweight (11.64kg), and impact resistant design

Technical Data:

• Input Voltage: 100-120V / 200-240V (single-phase)
• Frequency: 50 / 60 Hz
• Current Range (DC): 10–120A (150A) / 10–200A
• Max Current (EN60974-1): 120A @ 30% (150A) / 200A @ 30%
• Current @ 35% DC: 110A (140A) / 160A
• DC Current Continuous: 95A (125A) / 125A (135A)
• No Load Voltage: 81V
• Max Absorbed Current: 33A (25A) / 27A (19A)
• Absorbed Current @ 60%: 24A (20A) / 16.5A (11A)
• Max Absorbed Power: 3.1kW (2.4kW) / 5.2kW (3.6kW)
• Power @ 60%: 2.3kW (1.9kW) / 3.2kW (2.1kW)
• Minimum Generator Power: 5kW / 8kW
• Efficiency: 84%
• Power Factor: 0.98
• Electrode Diameter (DC): 1.6 – 4 mm
• Protection Class: IP23
• Dimensions: 37.5 x 50 x 22 cm
• Weight: 11.64 kg

Kit Includes:

• 3-metre electrode lead with large Dinse connector
• 2-metre earth lead with large Dinse connector
• Durable aluminium carry case

For professional welders needing reliable performance wherever the job takes them, the Telwin Advance 227XT delivers powerful, flexible, and efficient welding with advanced safety features. Its dual-voltage compatibility and MV/PFC technology ensure clean welds even in fluctuating power conditions. Whether you're on a remote site or working in a controlled workshop, this rugged and portable welder is ready to go.
