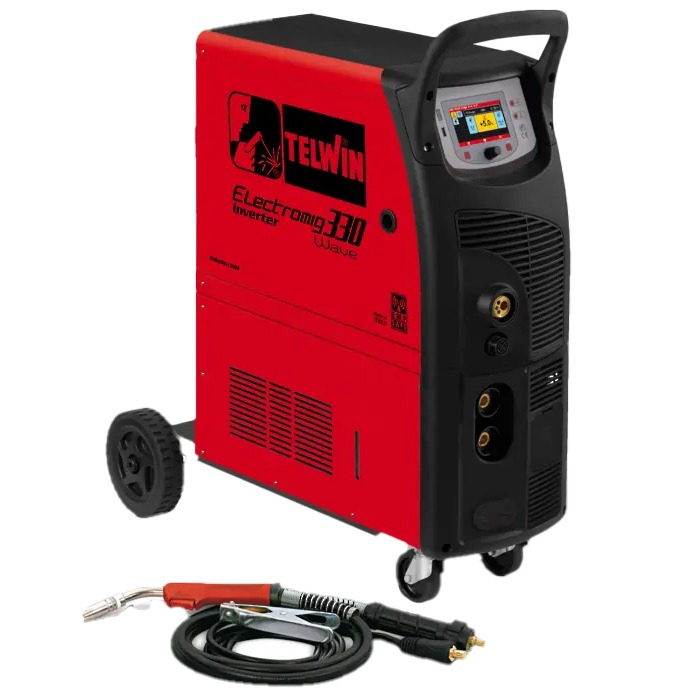

Telwin Electromig 330 Wave MIG Welder
The Telwin Electromig 330 Wave is a versatile, multiprocess inverter welder designed for professional use. Offering advanced features like continuous and pulse operation, SYNERGIC adjustment, and a user-friendly interface, this 300A machine is perfect for welding and brazing a wide range of materials with precision and efficiency. Its innovative WAVE OS operating system ensures customizability and traceability, making it an essential tool for maintenance, body shops, and installation tasks.
Telwin Electromig 330 Wave MIG Welder.
The Telwin Electromig 330 Wave MIG Welder delivers top-tier performance for professionals requiring operational flexibility and precision. Powered by a 3-phase 400V supply, this welder supports MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift processes, making it ideal for various applications across industries. Its intelligent microprocessor control ensures optimal arc stability and quality, even under challenging conditions, while the TFT colour screen simplifies operation for both EASY and EXPERT modes.
Designed for seamless adaptability, this welder handles different materials like steel, stainless steel, aluminium, and zinc-plated sheets with minimal thermal transfer. The inclusion of pulse and double-pulse welding modes (PULSE and PoP) enables superior results, particularly for aluminium and brazing. With features such as preloaded welding programs, custom program storage, and data traceability via USB or cloud, the Electromig 330 Wave is a powerhouse of innovation and efficiency.
Key Features:
- Multiprocess Capabilities: Supports MIG-MAG, FLUX, BRAZING, MMA, and TIG DC-Lift operations (Optional Torch & Leads Required)
- WAVE OS: Customizable and traceable welding processes with SYNERGIC parameter adjustment.
- User-Friendly Interface: Intuitive TFT colour screen for EASY and EXPERT modes.
- Pulse Welding Modes: Advanced pulse and double-pulse (PULSE and PoP) functionality.
- Material Versatility: Welds steel, stainless steel, aluminium, and brazed materials.
- Optimized Welding Arcs: Specialized processes like ROOT-MIG, ATC, and DEEP MIG for various applications.
- Data Storage & Export: Save and analyze data via USB or optional cloud platform.
- Accessories Included: See below for full details.
- Safety & Efficiency: Integrated VRD device and 90% efficiency rating.
Technical Data:
- Mains Voltage: 3-phase 400V
- Frequency: 50/60 Hz
- Current Range: 20 – 300A
- Max Current: 270A @ 30% duty cycle
- Absorbed Power: 9kW (max) / 6.5kW @ 60% duty cycle
- Efficiency: 90%
- Protection Degree: IP23
- Wire Compatibility:
- Steel: 0.6 – 1.2mm
- Stainless Steel: 0.8 – 1.2mm
- Aluminium: 0.8 – 1.2mm
- Flux Cored & Brazing: 0.8 – 1.2mm
- Usable Electrodes: 1.6 – 6mm
- Dimensions: 86.5 x 39 x 91.5cm
- Weight: 39kg
Supplied with:
- MB25 3mtr Torch
- 0.6/0.8mm and 1.0/1.2mm Steel Rollers
- 3mtr Earth Lead
- Gas Hose
- 2mtr Power Lead (No Plug Fitted)
The Telwin Electromig 330 Wave MIG Welder combines cutting-edge technology with robust design, offering unparalleled performance and versatility for demanding welding tasks. Whether you need precise control for delicate materials or the power to handle heavy-duty applications, this welder ensures consistent, high-quality results. Invest in the Electromig 330 Wave to elevate your welding capabilities and streamline your workflow.
