Telwin Electromig 400 synergic 816155

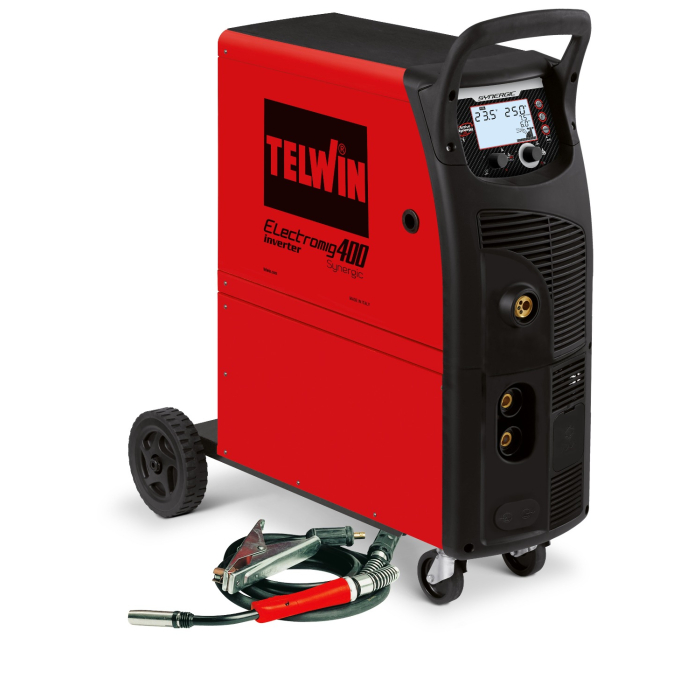

ELECTROMIG 400 SYNERGIC 400V

MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine controlled by a microprocessor, with 4-roller wire feeder.

Flexible use with various welded materials (steel, stainless steel, aluminium) or brazed materials (galvanised sheet metal).

Wide variety of application fields, from industry to maintenance, installation to bodywork activities.

Synergic adjustment makes the product simple to use. The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the art control of the arc.

Features Include

• Manual or synergic operating
• 40 pre-set synergic curves
• Possibility of creating, saving and retrieving customised welding programs
• MIG-MAG adjustments: wire up slope, electronic reactance, wire burn-back time, post gas
• 2/4 time operation selection, spot, inch and mm material thicknesses
• Protections: thermostatic, overvoltage, undervoltage, overcurrent, engine driven generator (+/-15%)
• TIG Lift (with optional Torch)

Technical Data

• 415V (16 amp) supply required
• 20 – 400A welding current
• Duty Cycle: 320A @ 25%
  400A @ 30%
• Wire diameter 0.6mm – 1.6mm
• IP23 Electrical Protection
• 2 Year warranty

Supplied with

• MT36 MIG TORCH 3M
• 3M Return Lead
• Ar/Co2 Regulator
