Telwin Infinity TIG 225 DC Inverter Welder
The Telwin Infinity TIG 225 DC is a versatile and efficient welding machine, designed for TIG and MMA applications. It delivers up to 200 amps of power, making it suitable for various welding tasks. Equipped with high-frequency (HF) or LIFT striking, TIG PULSE modes, and MMA capabilities, this machine is ideal for professionals seeking reliability and precision in their work.

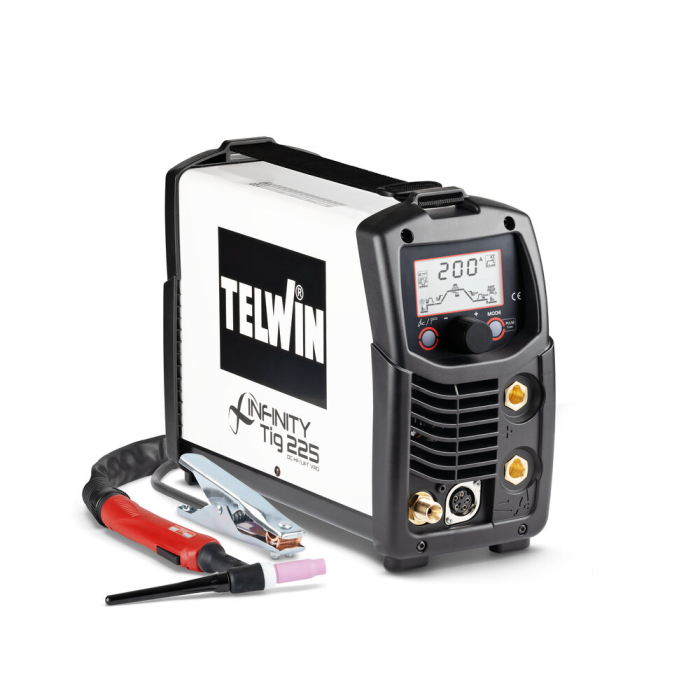

Telwin Infinity TIG 225 DC Welder.
With advanced inverter technology, the Telwin Infinity TIG 225 DC offers precise control over the welding process. Its compact design and low weight make it portable and convenient for both workshop and on-site use. Multiple adjustable parameters ensure flexibility, while safety features like VRD (Voltage Reduction Device) enhance protection during MMA welding.
Features:
- TIG Modes: Supports both HF and LIFT arc striking for enhanced control.
- PULSE TIG & EASY PULSE: Enables improved welding on thin materials.
- MMA Capabilities: Compatible with rutile and basic electrodes up to 4mm (Optional Electrode Lead Required).
- Adjustable Settings: Fine-tune parameters such as arc force, hot start, and anti-stick.
- 2/4 Stroke Operation: Offers flexibility to suit different welding styles.
- Remote Control Ready: Connector for easy integration with remote devices.
- Inverter Technology: Ensures low energy consumption and consistent performance.
- Safety Features: Includes VRD for added operator safety.
- Durable Design: Built with protections for extended durability.
Technical Data:
- Input Voltage: 230 V (Single Phase)
- Frequency: 50/60 Hz
- Current Range: 10-200 A
- Maximum Current: 200 A @ 25% duty cycle
- Open Circuit Voltage: 82 V
- Power Consumption at 60%: 3.2 kW
- Efficiency: 89%
- Power Factor: 0.7
- Electrode Compatibility (MMA): 1.6 - 4 mm
- Protection Class: IP23
- Dimensions: 39 x 15.5 x 29 cm
- Weight: 6 kg
Supplied With:
- ST26 4mtr TIG Torch
- 3mtr Earth Lead
- Gas Hose
- 2mtr Power Lead (13amp Plug Adaptor)
The Telwin Infinity TIG 225 DC + ACC combines cutting-edge technology with practical features, delivering a reliable welding solution for both TIG and MMA applications. Its portability, energy efficiency, and comprehensive safety features make it a valuable tool for welders seeking precision and versatility in their craft.
| Brand | Telwin |
|---|
