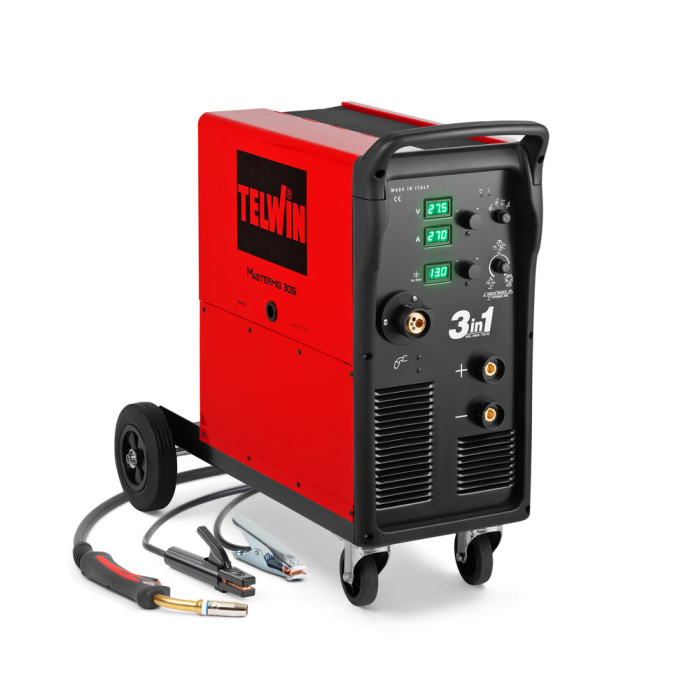

Telwin Mastermig 305i Multi Process Welder
The Telwin Mastermig 305i is a versatile and high-performance welding machine designed for professional applications. With its multi-process capabilities, including MIG-MAG, Flux, MMA, TIG DC-Lift, and brazing, it offers flexibility across a wide range of materials and welding tasks. Compact yet robust, this three-phase inverter welder is engineered for reliability, durability, and energy efficiency.
Telwin Mastermig 305i Multi Process Welder.
The Telwin Mastermig 305i combines advanced welding technology with user-friendly features to ensure exceptional performance in demanding environments. It boasts a 4-roller wire feeder and dynamic display for real-time parameter adjustments, making it ideal for welding professionals in sheet metal work, maintenance, installations, and automotive repair. Its strong yet lightweight construction and innovative ventilation system protect electronic components from dirt and dust, ensuring long-lasting durability.
This machine is designed to handle a variety of materials, including steel, stainless steel, aluminum, high-strength steel, and galvanized sheet metal. Whether you're working on heavy-duty projects or delicate tasks, the Telwin Mastermig 305i delivers precision and efficiency.
Key Features:
- Multi-Process Capability: Supports MIG-MAG, Flux gas-shielded, brazing, MMA, and TIG DC-Lift processes.
- Dynamic Display: Real-time visualization of welding parameters for precise control.
- MIG-MAG Features:
- 2/4 stroke operation modes.
- Electronic reactance adjustment for enhanced performance.
- MMA Welding:
- Synergic adjustment of Arc Force and Hot Start for different electrode types.
- Anti-stick device to prevent electrode sticking.
- TIG DC-Lift: Smooth striking and display of voltage and current (Optional Torch Extra)
- Protective Systems: Thermostatic, overvoltage (+15%), undervoltage (-25%), and overcurrent protections, as well as motor generator compatibility (+/- 15%).
- Robust Design: Durable, impact-resistant construction with reduced size and weight.
- Energy Efficiency: Designed to minimize power consumption while maintaining high performance.
Technical Specifications:
- Power Supply: 400V three-phase
- Frequency: 50/60 Hz
- Current Range: 20-270A
- Maximum Current: 270A @ 40% duty cycle
- No-Load Voltage: 63V
- Power Consumption at 60% Duty Cycle: 5.8-7.5 kW
- Efficiency: 86%
- Wire Diameter Compatibility:
- Steel: 0.6-1.2mm
- Stainless Steel: 0.8-1.2mm
- Aluminum: 0.8-1.2mm
- Flux Cored and Brazing: 0.8-1.2mm
- Electrode Diameter: 1.6-6mm
- Protection Rating: IP22
- Dimensions: 92 x 46 x 80 cm
- Weight: 45 kg
Supplied with:
- MB25 3mtr Torch
- 0.6/0.8mm & 1.0/1.2mm Steel Rollers
- 3tr Earth Lead
- 4mtr Electrode Lead
- Gas Hose
- 2mtr Power Cable (No Plug Fitted)
The Telwin Mastermig 305i Multi-Process Welder is the ultimate solution for professionals seeking flexibility, precision, and reliability. Its advanced features and robust design make it suitable for various applications, from workshop projects to industrial tasks. Compact and energy-efficient, this welder is an investment in quality and performance, delivering outstanding results every time.
Please note: This is an ex-showroom machine with no box.
