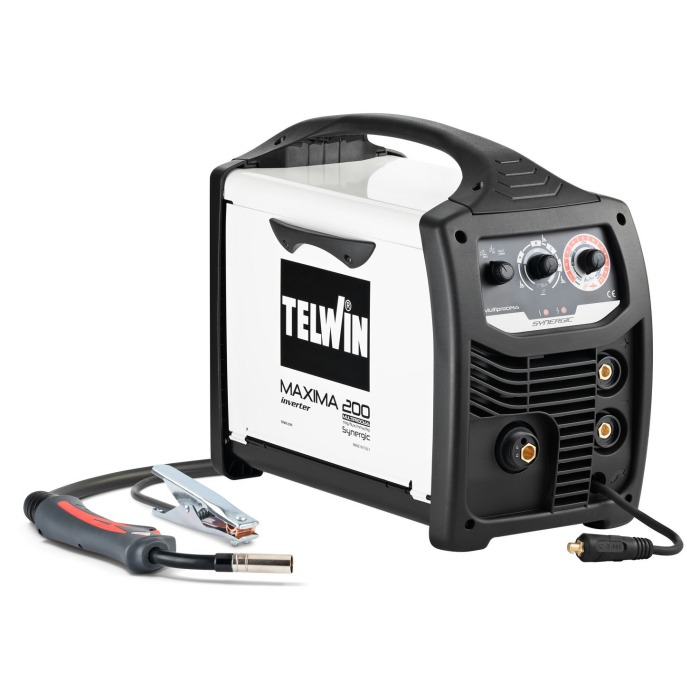

Telwin Maxima 200 Synergic Multi Process Welder with Regulator Kit

The Telwin Maxima 200 Synergic is a powerful, compact multi-process welder designed for versatility and ease of use across MIG/MAG, Flux, MMA, TIG DC-Lift, and Brazing applications. With a microprocessor-controlled inverter and SYNERGIC parameter adjustment, it offers precise, high-quality welding results on steel, stainless, and aluminium—even for less experienced users.

Supplied with MIG accessories and regulator kit.

As low as £597.60 £498.00


In stock
Only %1 left
SKU
TEL-816087
Rating:
100 % of 100

Telwin Maxima 200 Synergic Multi Process Welder.

Take your welding capabilities to the next level with the Telwin Maxima 200 Synergic Multi Process Welder—a compact yet powerful solution built for both professionals and serious DIYers. Combining cutting-edge inverter technology with user-friendly SYNERGIC control, this machine offers superb flexibility across MIG-MAG, MMA, TIG DC-LIFT, Flux-core, and Brazing applications. Whether you’re working with steel, stainless steel, or aluminium, this 170A welder delivers consistent performance and excellent weld quality in maintenance, fabrication, and on-site installation tasks.

Key Features:

  • Multiprocess functionality: MIG/MAG, MMA, TIG DC-Lift, Flux-core, and Brazing
  • SYNERGIC adjustment: intuitive setup with three quick-select parameters
  • Compatible with Ø100mm and Ø200mm wire spools
  • Microprocessor control for precise welding performance
  • Inverter technology for reduced energy consumption and lighter weight
  • Polarity reversal for gasless MIG and Brazing
  • Arc Force control for improved MMA welding
  • Thermal, over/undervoltage, and overcurrent protections
  • Generator-compatible (230V ±15%)
  • Euro torch connection
  • Lightweight and portable at just 11kg
  • Will weld up to approx 7mm mild steel material in MIG

Technical Data:

  • Code: 816087
  • Input Voltage: 230V Single Phase
  • Frequency: 50 / 60 Hz
  • No Load Voltage: 44V
  • Welding Current Range: 20 – 170A DC
  • Max Current (EN60974-1): 140A @ 20%
  • Current @ 35% Duty Cycle: 100A
  • Current @ 60% Duty Cycle: 80A
  • Max Absorbed Current: 22A
  • Absorbed Power @ Max Load: 3.2 kW
  • Absorbed Power @ 60% Load: 1.6 kW
  • Efficiency: 86%
  • Power Factor: 0.7
  • Usable Electrodes (MMA): 1.6 – 3.2mm
  • Mild Steel Wire Diameter: 0.6 – 0.8mm
  • Stainless Steel Wire Diameter: 0.8mm
  • Aluminium Wire Diameter: 0.8 – 1.0mm
  • Flux-Cored Wire Diameter: 0.8 – 1.2mm
  • Brazing Wire Diameter: 0.8mm
  • Protection Class: IP23
  • Dimensions (LxWxH): 45 x 23.5 x 37 cm
  • Weight: 11 kg

Kit Includes:

  • MB15 3m MIG torch
  • 1.8m Earth lead
  • 0.6/0.8mm steel wire drive roller
  • Gas regulator
  • 0.8mm x 0.7kg MIG wire spool
  • Assorted torch consumables

Whether you're welding mild steel up to 7mm thick or tackling stainless and aluminium projects, the Telwin Maxima 200 Synergic Multi Process Welder is your go-to for reliable, high-quality welds. Its portable design, SYNERGIC technology, and wide process compatibility make it ideal for workshops, on-site jobs, or mobile service engineers. Get the performance and flexibility you need with a welder that's built to deliver—every time.
