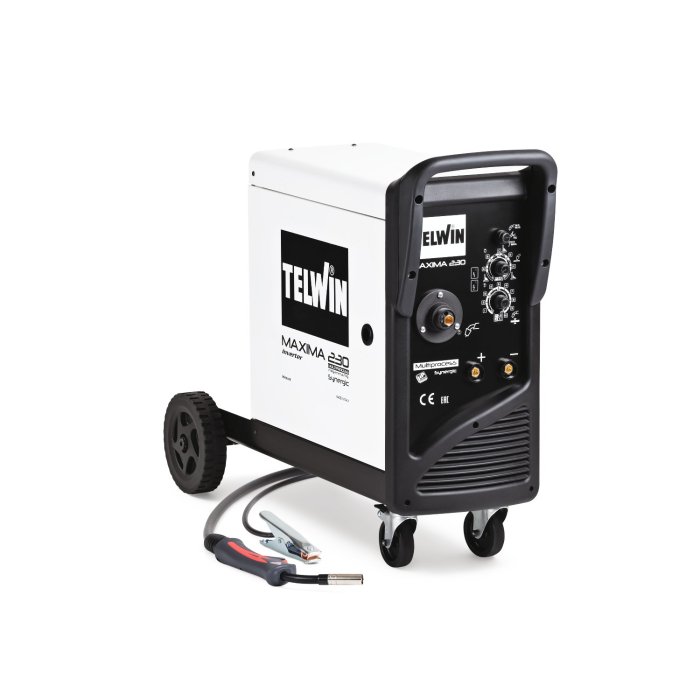

Telwin Maxima 230 Synergic Multi Process Welder
Versatile 4-in-1 welding solution for professionals and beginners alike. The Telwin Maxima 230 Synergic is a compact, lightweight multi-process welder offering MIG-MAG, TIG DC-Lift, MMA, and Brazing capabilities with advanced SYNERGIC control. Designed for ease of use and powerful performance, it delivers reliable results across various materials including steel, stainless steel, and aluminium.
Supplied with MIG accessories and regulator kit.
Telwin Maxima 230 Synergic Multi Process Welder.
The Telwin Maxima 230 Synergic Multi Process Welder is engineered for maximum flexibility and ease of use, whether you're tackling workshop repairs, installations, or on-site maintenance. This microprocessor-controlled inverter welder combines multiple welding processes—MIG-MAG, MMA, TIG DC-Lift, and Brazing—in a single compact unit, making it an excellent choice for both professionals and DIY welders. Thanks to intuitive SYNERGIC parameter adjustment, you can achieve high-quality welds quickly and consistently—even with minimal experience.
Key Features:
- 4-in-1 welding capability: MIG-MAG, MMA, TIG DC-Lift, and Brazing
- SYNERGIC control panel: Automatically adjusts parameters for cleaner welds
- Inverter technology: Improves efficiency while reducing power consumption
- Portable design: Lightweight and compact for easy transport to job sites
- Material versatility: Welds steel, stainless steel, aluminium, and brazing alloys
- Protection systems: Built-in safeguards against thermal overload, voltage fluctuations, and overcurrent
- Motor-generator compatible: Operates with generator power (230V ±15%)
- Euro torch connector: For quick and secure torch setup
Technical Data:
- Code: 816234
- Power Supply: 230 V, single phase
- Frequency: 50 / 60 Hz
- Max No-Load Voltage: 52 V
- Current Range (DC): 20 – 220 A
- Max Current (DC EN60974-1): 180 A @ 20%
- Current at 35% Duty Cycle: 135 A
- Current at 60% Duty Cycle: 100 A
- Max Absorbed Current: 32 A
- Absorbed Current at 60%: 18 A
- Max Absorbed Power: 5.0 kW
- Absorbed Power at 60%: 2.2 kW
- Efficiency: 87%
- Power Factor: 0.7
- Electrode Diameter (DC): 1.6 – 3.2 mm
- Wire Diameter – Steel: 0.6 – 1.0 mm
- Wire Diameter – Stainless Steel: 0.8 – 1.0 mm
- Wire Diameter – Aluminium: 0.8 – 1.0 mm
- Wire Diameter – Brazing: 0.8 – 1.0 mm
- Protection Degree: IP23
- Dimensions: 82.5 x 36 x 67 cm
- Weight: 21 kg
Kit Includes:
- MT15 3m MIG Torch (red)
- Parweld E700123 Argon/CO₂ Regulator
- 0.6/0.8mm Steel Roller
- 1.8m Earth Lead
- Gas Hose & Fittings
Whether you're welding thin sheet metal or heavier structural components, the Telwin Maxima 230 Synergic provides the power, control, and adaptability you need. Its compact size and generator compatibility make it ideal for both workshop and mobile applications. With high-efficiency inverter technology and intuitive controls, it's a welding solution that delivers professional-grade results with minimal effort.
