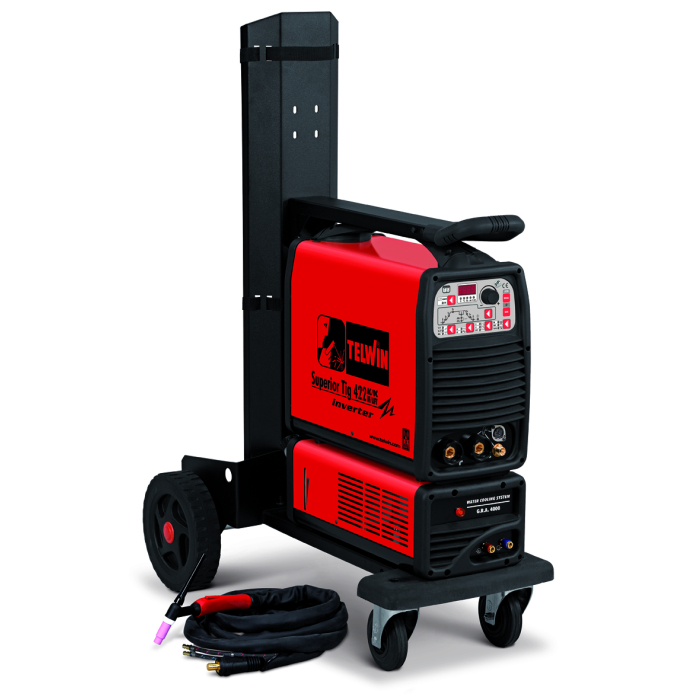

Telwin Superior Tig 422 AC/DC HF/LIFT Water Cooled

Telwin 350 amp AC/DC water cooled TIG welding machine with accessories.

Special Price £4,194.00 £3,495.00 Regular Price £4,794.00

In stock

Only 1 left

SKU

TEL-816135

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Telwin Superior Tig 422 AC/DC HF/LIFT Water Cooled.

The Telwin 422 offers, high level of control over the welding parameters through easy use control panel. Microprocessor controlled HF (High Frequency) pulsed TIG and MMA welding machine, in DC (Direct Current) and AC (Alternating Current). Suitable for use with a wide range of materials such as Steel, Stainless Steel, Titanium, Copper, Nickel, Aluminium. With the ability to save jobs and quickly change between jobs using the control panel this machine is suitable for maintenance, and production welding to a high level.

Features include:

Pulse – Welding in all positions
Easy Pulse – Pulse for everybody
Thinspot – Easy tack welding
9 customised welding programmes
Start/end current adjustment
Slope in/out adjustment
Pre/post gas adjustment
Frequency balance
Square wave frequency
Adjustable of preheating for simpler arc striking in AC
Anti-Stick and hot striking in MMA

Technical data:

415v (32A) supply required
5-350A current range
35% duty cycle @ 350A
60% duty cycle @ 250A
1.6mm – 6mm welding electrodes (DC only)
IP23 electrical protection
2 year full warranty
3 year transformer warranty

Supplied with:

4M ST18 water cooled tig torch
3m return lead
GRA 4000 Water cooler
Telwin Mondial trolley
Telwin twin gauge regulator
Gas hose kit
