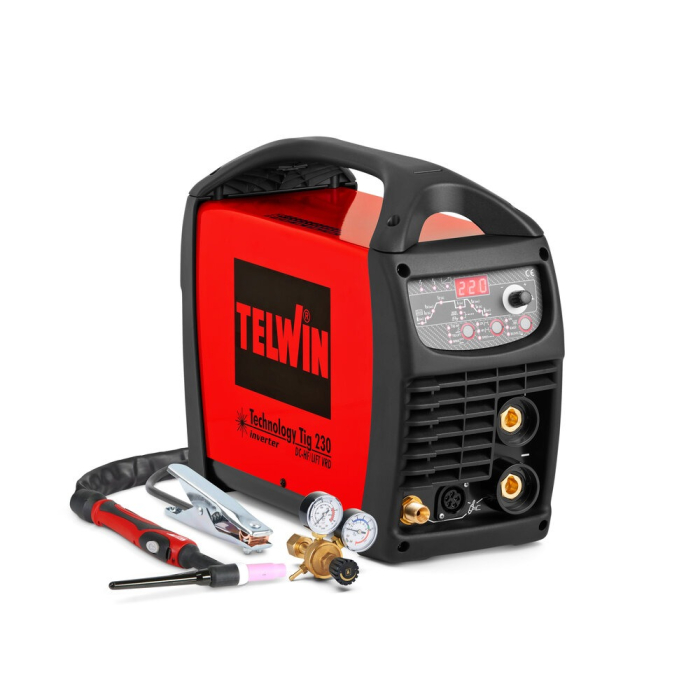

Telwin Technology TIG 230 DC Inverter Welder
Experience precision and versatility with the Telwin Technology TIG 230 DC Inverter Welder. Ideal for TIG and MMA welding, this microprocessor-controlled machine offers advanced features like PULSE, EASY PULSE, and the innovative THINSPOT function for accurate tack welding on thin sheet metal. Compact, reliable, and packed with safety features, it's the perfect solution for professionals working with a variety of metals.
Telwin Technology TIG 230 DC Inverter Welder.
The Telwin Technology TIG 230 DC is designed to deliver outstanding performance in both TIG (HF or LIFT striking) and MMA welding modes. Its PULSE and EASY PULSE functionalities ensure smooth operation, while the THINSPOT feature allows for quick and precise spot welding. Whether you're working with steel, stainless steel, titanium, copper, nickel, or their alloys, this welder provides the flexibility and control you need to achieve professional results. Equipped with advanced safety features and a robust design, it’s a reliable addition to any workshop.
Features:
- Versatile Operation: Supports TIG (HF or LIFT), TIG PULSE, and MMA welding (Optional Electrode Lead Required)
- PULSE and EASY PULSE Modes: Ensure consistent and smooth welds.
- THINSPOT Function: Ideal for accurate and rapid spot welding on thin sheet metal.
- Safety Features: Includes VRD (Voltage Reduction Device) for safe use in damp environments and built-in thermal, overvoltage, undervoltage, and overcurrent protections.
- Advanced Controls: Bi-level TIG settings, adjustable current up/down slope, spot welding timer, and pre/post-gas control.
- MMA Customization: Features arc force, hot start, and anti-stick devices.
- Remote Control Ready: Compatible with remote control accessories for added convenience.
- Compact and Durable: Designed with a robust IP23 protection rating for challenging environments.
Technical Data:
- Input Voltage: Single-phase 230V
- Frequency: 50/60 Hz
- Current Range: 10–220 A
- Maximum Current: 220 A @ 30% duty cycle
- DC Current: 125 A
- No-Load Voltage: 95 V
- Maximum Absorbed Current: 36 A
- Power Consumption: Max 6 kW; 4.1 kW at 60% duty cycle
- Efficiency: 86%
- Power Factor: 0.7
- Usable Electrodes (DC): 1.6–4 mm
- Protection Rating: IP23
- Dimensions: 43 x 17.6 x 34 cm
- Weight: 14.75 kg
Supplied With:
- ST26 4mtr TIG Torch
- 3mtr Earth Lead
- Regulator
- Gas Hose
- 2mtr Power Lead (No Plug Fitted)
With its cutting-edge features and robust construction, the Telwin Technology TIG 230 DC Inverter Welder is the ultimate tool for precise and efficient welding. Whether you're working in a workshop or on-site, this machine delivers the performance and reliability you need to tackle any project.
| Brand | Telwin |
|---|
