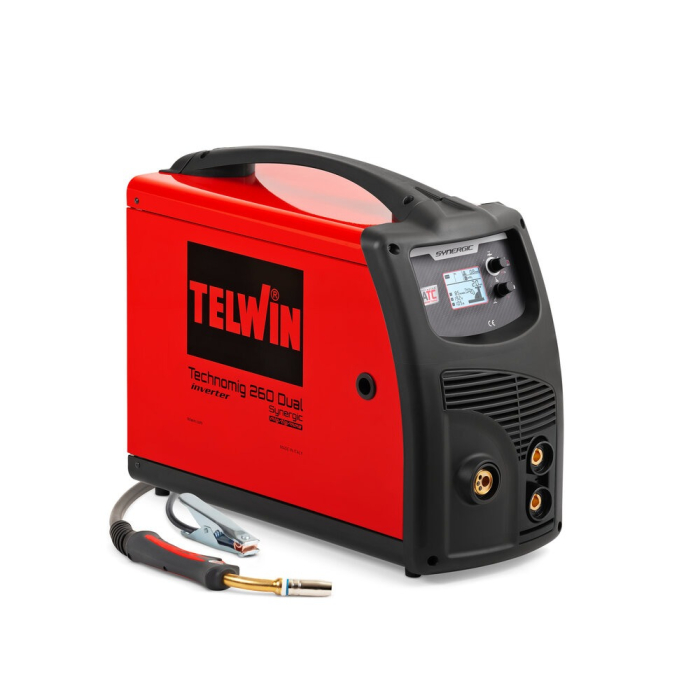

Telwin Technomig 260 Dual Synergic
The Telwin Technomig 260 Dual Synergic is a compact yet powerful 250A multiprocess inverter welder designed for MIG-MAG, Flux-Cored, Brazing, MMA, and TIG DC-Lift welding. With user-friendly OneTouch LCD synergy technology and 29 pre-set synergic curves, it’s ideal for professionals who need precision, flexibility, and portability in one reliable machine.
Telwin Technomig 260 Dual Synergic.
The Telwin Technomig 260 Dual Synergic is a high-performance microprocessor-controlled inverter welder built for versatility across various welding applications. Whether you're working with steel, stainless steel, aluminium, or brazing galvanized sheets, this machine delivers reliable, consistent results. Ideal for maintenance, installation, automotive, and bodywork, it’s equipped with advanced arc control features and OneTouch LCD synergy for simple, intuitive operation.
Its intelligent arc management adjusts parameters in real-time, ensuring top-quality welds under varying conditions. The lightweight, compact design makes it easy to transport between jobs, while the LCD display gives clear visual feedback of voltage, current, and wire speed. From beginner-friendly automation to advanced manual fine-tuning, the Technomig 260 adapts to your welding style and job requirements with ease.
Key Features
- Multiprocess inverter welder: MIG-MAG, Flux, Brazing, MMA, TIG DC-Lift
- OneTouch LCD synergy for easy setup with 29 synergic curves
- Intelligent arc control with manual arc length adjustment
- ATC (Advanced Thermal Control) for thin material welding
- LCD display showing voltage, current, and wire feed speed
- Supports polarity reversal for NO GAS/Flux-core welding
- MMA mode with arc force, hot start, and anti-stick
- Adjustable wire speed ramp-up, burn-back, post-gas
- Spot welding mode and 2/4-stroke selection
- Thermal, over/under voltage, overcurrent, and generator protections
- Compact, lightweight design for easy portability
Technical Data
- Product Code: 816056
- Input Voltage: 230V (single-phase)
- Frequency: 50/60 Hz
- Max No Load Voltage: 60V
- Current Range (DC): 20–250A
- Max Current @ 20% (EN60974-1): 220A
- Current @ 35% DC: 170A
- Current @ 60% DC: 130A
- Max Absorbed Current: 39A
- Absorbed Current @ 60%: 22A
- Max Absorbed Power: 6.3 kW
- Power @ 60%: 3.3 kW
- Efficiency: 87%
- Power Factor: 0.7
- Electrode Size (DC): 1.6–4 mm
- Steel Wire Diameter: 0.6–1.2 mm
- Stainless Steel Wire Diameter: 0.8–1.0 mm
- Aluminium Wire Diameter: 0.8–1.0 mm
- Flux-Cored Wire Diameter: 0.8–1.2 mm
- Brazing Wire Diameter: 0.8–1.0 mm
- Protection Class: IP23
- Dimensions (LxWxH): 62 x 26 x 49 cm
- Weight: 22 kg
Kit Includes
- MB25 3 Metre MIG Torch
- 0.6/0.8mm Steel Roller
- 3 Metre Earth Lead
- Parweld E700123 Argon/CO₂ Regulator
- Gas Hose & Fittings
Whether you're a professional fabricator, mobile welder, or workshop technician, the Telwin Technomig 260 Dual Synergic offers the performance, flexibility, and ease-of-use needed to get the job done right. Compact enough to carry on-site, yet powerful enough for demanding jobs, this all-in-one multiprocess welder is a reliable investment for high-quality results across a wide range of materials and processes.
