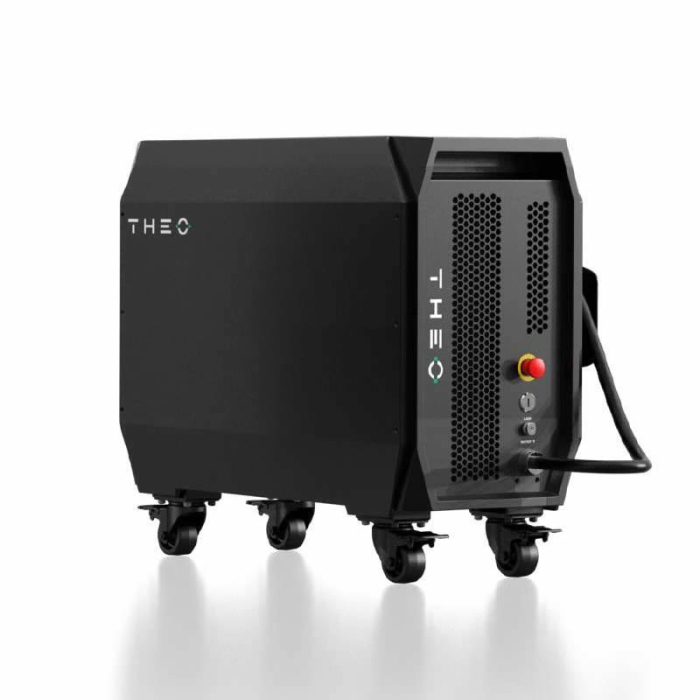

Theo Max Photonics MA1-35 Laser Welder & Wire Feed Unit
£11,998.80
£9,999.00
In stock
SKU
THE-MAX35LASWEL
Please Note: Due to new shipping regulations, we are currently unable to ship to Northern Ireland. All orders placed to Northern Ireland will be cancelled.
MA1 35 THEO LASER WELDER PRODUCT DESCRIPTION:
The Theo Max Photonics MA1-35 Laser Welder is a compact and highly efficient handheld laser welding system designed to deliver fast, precise, and professional welding performance across a wide range of fabrication applications. Built for portability and ease of use, the MA1-35 combines advanced fibre laser technology with an air-cooled design, eliminating the need for an external chiller while helping to reduce setup time and operating costs.
Ideal for stainless steel, carbon steel, aluminium, galvanised steel, and brass applications, the THEO MA1-35 offers welding penetration of up to 3.5mm while maintaining clean, low-distortion welds with minimal post-processing. The machine features an integrated wire feeder, wobble welding functionality, and a lightweight welding torch, making it suitable for both experienced fabricators and operators new to laser welding technology.
With up to 10x faster welding speeds compared to traditional TIG welding, the MA1-35 helps improve productivity while significantly reducing training requirements and labour costs. Its 800W laser output, compact 28–29kg portable design, and standard 220V/230V power compatibility make it well suited for workshops, mobile fabrication, automotive, manufacturing, and light industrial environments.
MA1 35 THEO LASER WELDER KEY FEATURES INCLUDE:
- Handheld air-cooled fibre laser welding system
- Up to 3.5mm material welding capacity
- 800W typical laser output
- Integrated wire feeder and wobble welding
- Lightweight portable design from 28kg
- Up to 80% lower energy consumption
- Fast operator training and simple operation
- CE, FDA, ETL, ISO and EN certified safety standards
- 7-inch LED touchscreen interface
- Suitable for stainless steel, aluminium, carbon steel and galvanised steel
MA1 35 THEO LASER WELDER MATERIAL THICKNESSES:
| Material | One Sided Limit Welding Seam |
| Stainless Steel | Up to 3.5mm |
| Mild Steel | Up to 3.5mm |
| Galvanized Sheet | Up to 3.5mm |
| Aluminium Plate | Up to 3.0mm |
| Brass | Up to 2.5mm |
The THEO MA1-35 is designed to provide cleaner weld aesthetics, reduced heat distortion, and improved efficiency compared to conventional MIG or TIG welding methods, making it an excellent solution for businesses seeking faster production speeds and consistent weld quality.
THEO MA1-35 LASER WELDER SUMMARY:
The latest generation of THEO handheld fibre laser welders incorporates advanced air-cooling technology, delivering exceptional long-term stability and reliability while maintaining a compact and streamlined design.
Each THEO machine is equipped as standard with a 7” intelligent graphical user interface featuring 32 pre-set welding programs, alongside storage capacity for an additional 32 user-defined settings. This enables fast setup, simplified operation, and outstanding repeatability across multiple operators and applications.
Designed with operator comfort in mind, the compact ergonomic welding torch provides excellent handling during prolonged use, while remaining durable enough for demanding fabrication environments.
Multiple welding modes, including continuous wave, pulse, and shooting mode, provide the flexibility required for a wide range of welding applications, including precision spot welding. The integrated wobble function operates across a frequency range of 0–280 Hz, while wire feed settings can be controlled directly through the graphical interface on the power source. Combined with high beam stability, this ensures consistently high-quality weld performance.
All THEO handheld fibre laser welders are supplied with a dedicated external wire feed unit featuring a robust 4-roll drive motor system for smooth, reliable wire feeding.
The MA1 series also includes an external interface for dual-channel safety integration, together with optional external interface control for compatibility with automated welding systems. An integrated 8-point safety monitoring system provides enhanced operator and equipment protection.
All THEO handheld fibre laser welding systems are fully certified to CE and UKCA standards, including EN 60825-1 and EN ISO 11553 compliance.
MA1 35 THEO LASER WELDER PRODUCT SPECIFICATION:
| Parameter | MA1-35 Theo Laser Welder |
| Classification | Class 4 near-IR fiber laser Conforms to IEC 60825-1 / EN 60825-1 |
| Wave Length | 1080 ± 10 nm |
| Output Power | 800W (±50W) |
| Input Power | 3000W |
| Weld Penetration Stainless Steel | up to ~3.5mm |
| Weld Penetration Steel | up to ~3.5mm |
| Weld Penetration Aluminium | up to ~3.0mm |
| Power Supply | Single-phase 200–240 V AC (~25 A recommended) |
| Operating Ambient Temperature | 0 - 40° |
| Relative Humidity in the Environment | 10 - 85% |
| Storage Temperature | -10 - 60°C |
| Weight (kg) | 29 ±3 |
| Dimensions (mm) | 577 x 512 x 265 |
| Airborne Noise Level | Max. 85 db (A) Automatically adjust, according to working condition |
| Cooling Method - Laser Source | Air-cooled (internal fans) |
| Cooling Method - Welding Head | Gas cooling of the fibre connector and optics |
| Operating Mode | Continuous-Wave (CW) fibre laser may be rapidly gated on/off |
| Polarisation | Random |
| Output | 750 – 800 W |
| Electro-Optical Efficiency | 27 % |
| Area of Power Control | 10 – 100 % |
| Raw Beam Diameter | 5,495 mm |
| Beam Diameter at Focus Point | 56,1 μm |
| Divergence Angle | 32,7 mrad |
| Rayleigh Length | 1,3 mm |
| Duty cycle light off time | 75 % |
| Wobble Width range | 0 - 4 mm |
| Maximum modulation frequency | 10 KHz |
| Laser switch-off duration | 0-100 ms |
| Short-term power stability | 2% |
| Beam Quality M2 | 1,3 (Typ.) |
| Laser activation time ON | 50 – 100 μs |
| Laser switch-off time | 50 – 100 μs |
| Fibre break detection | 100 μs |
| Displayed power of the red light beam | 300 – 1000 uW |
| NOHD | 118 m |
| MPE (EMZB) | 70,7 W/m2 |
| NHZ | 22 m |
| MPE | 2.000 W/m2 |
| Fibre diameter | 20 μm |
| Length of the hose pack with optical fibers | 4,35 m |
| Bending radius of fibreglass hose packs | 200 mm |
| Laser output connector | QCS integrated Fibre |
| Shielding gas | Argon (Ar) @ 99,996% purity, Nitrogen (N2) @ 99,999% purity ~10–16 L/min |
| Volume | <0.1m2 |
| Wobble frequency | 0–280HZ |
| Preset process parameters | 32 Groups |
MA1 35 THEO LASER WELDER FREQUENTLY ASKED QUESTIONS:
The THEO MA1-35 handheld laser welder is suitable for welding stainless steel, mild steel, galvanised steel, aluminium and brass. Material thickness capabilities vary depending on the metal type and joint configuration.
The MA1-35 can weld up to 3.5mm stainless steel, mild steel and galvanised steel, up to 3.0mm aluminium, and up to 2.5mm brass in suitable welding conditions.
Yes, the THEO MA1-35 is supplied complete with a dedicated external wire feed unit featuring a 4-roll drive system for smooth and consistent wire feeding performance.
Yes, the THEO MA1-35 uses advanced air-cooling technology with phase-change heat dissipation, eliminating the need for an external water chiller.
The machine is designed for simple operation with pre-set welding programs and an intuitive 7-inch touchscreen interface. Basic operator training can typically be completed in under an hour.
The THEO MA1-35 supports continuous wave (CW), pulse and shooting welding modes, allowing users to optimise settings for different materials and welding applications.
Yes, the machine features adjustable wobble welding with a frequency range of 0–280Hz and adjustable wobble width settings for wider seams and improved gap tolerance.
The THEO MA1-35 operates from a standard 230V single-phase power supply, making it suitable for many workshop and fabrication environments.
Yes, the THEO MA1-35 is designed for professional fabrication and production welding applications, offering faster welding speeds, reduced heat distortion and minimal post-weld clean-up compared to traditional TIG welding methods.
The THEO MA1-35 includes multiple integrated safety systems such as dual contact sensors, emergency stop functionality, safety interlock compatibility and key-lock protection. Appropriate laser safety PPE and safe operating procedures are also required during use.
Yes, the THEO MA1-35 is certified to CE and UKCA standards and complies with recognised laser safety and machinery standards including EN 60825-1 and ISO 11553 requirements.
Handheld laser welding can provide faster welding speeds, lower heat input, reduced distortion, cleaner weld appearance and less finishing work compared to conventional TIG welding processes.
