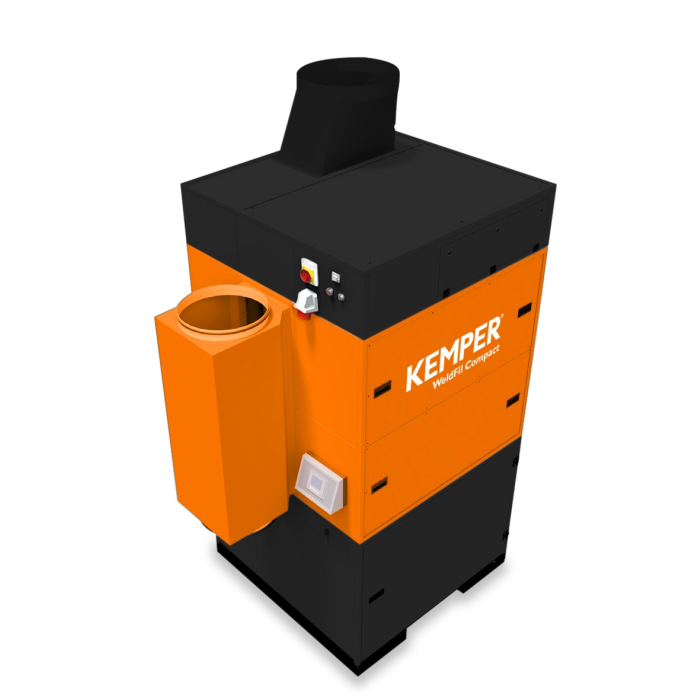

Kemper WeldFil Compact Fume Extraction Unit
The WeldFil Compact is a ready-to-install, central smoke extraction system which is ideally suited for factory buildings and welding shops with high levels of smoke and dust.
Price on Application
Details
Kemper WeldFil Compact Fume Extraction Unit.
The robust and compact WeldFil Compact welding smoke extraction system is perfect for factory buildings and welding shops with high levels of smoke and dust. This plug-and-play system, featuring forklift pockets and lifting eyes, is quickly and easily installed as a central extraction and filter solution for multiple welding stations, cutting machines, and welding robots. With KemTex® ePTFE membrane filter cartridges, it effectively captures ultra-fine dust particles down to 0.1 µm. The W3/IFA Certification ensures the WeldFil Compact is also ideal for machining chromium-nickel steel, providing exceptional filtration and air quality control.
Applications:
- High levels of smoke and dust
- Welding and grinding shops
- Training centres and robotic welding lines
- Laser, plasma and flame cutting systems
- Can be installed outdoors
Benefits:
- Contamination-free dust collection due to compressed air fixation of dust collection containers
- Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
- Little noise emission due to a low noise level
- Considerable energy cost savings by using the automatic extraction volume control
- Convenient operation due to intelligent control via touch screen with diagnostic system
- Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
- Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
Properties:
- Automatic filter cleaning, pressure-controlled
- Control via touch screen
- W3/IFA certified
- KemTex® ePTFE filter cartridges
- Dust collection container with pneumatic lifting device
- Automatic extraction volume control (optional)
Filter:
- Filter Stages - 1
- Filter Method - Cleanable Filter
- Filter Cleaning Method - Rotating Nozzle
- Filter surface - 10m²
- Type of Filter - Filter Cartridge
- Filter Material - ePTFE Membrane
- Filter efficiency - >99.99%
- Dust Classification - M
Additional Information:
- IFA-Certification - W3-Approved
- Compressed air supply - 5 - 6 bar
- Air outlet - 250 mm
Variations available:
- Extraction capacity 1,250 - 2,160 m3/h
- Extraction capacity 2,000 - 2,880 m3/h
- Extraction capacity 2,750 - 3,960 m3/h
- Extraction capacity 3,500 - 5,040 m3/h
- Extraction capacity 4,500 - 6,480 m3/h
- Extraction capacity 5,250 - 7,560 m3/h
- Extraction capacity 6,000 - 8,640 m3/h
