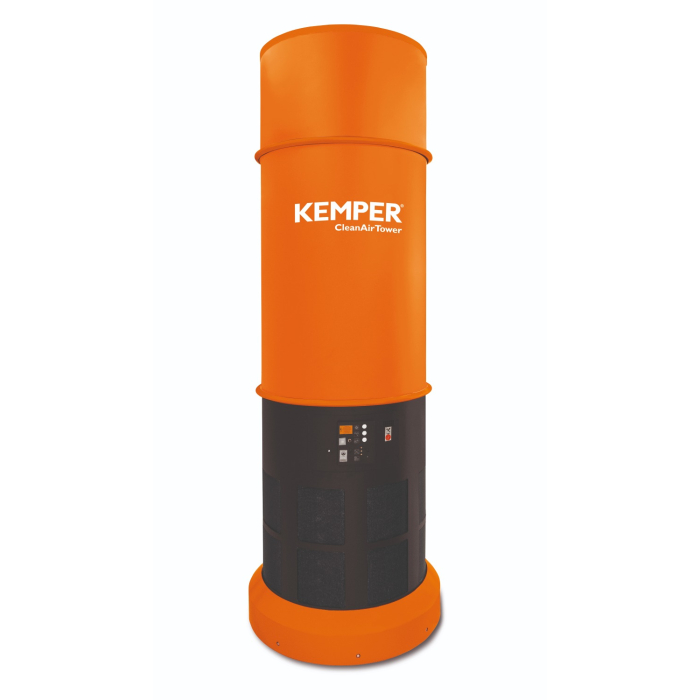

Kemper CleanAirTower General Ventilation
Ensure a cleaner, safer workspace with the Kemper CleanAirTower, the ultimate solution for environments where local extraction isn't sufficient. This advanced ventilation system effectively captures fine dust, recirculates purified air, and minimizes energy consumption, all while maintaining a turbulence-free environment.
Kemper CleanAirTower General Ventilation.
The Kemper CleanAirTower is designed for workspaces where local exhaust ventilation falls short or isn't feasible. Utilising advanced displacement ventilation, this system ensures effective fine dust removal and recirculates purified air without disturbing clean areas. With features like the pinball method for spark reduction, automatic filter cleaning, and an impressive 99.9% filter efficiency, the CleanAirTower offers an energy-efficient and safety-focused solution that’s easy to install and maintain, even in challenging environments.
Applications:
- Workshops where local exhaust ventilation is not possible
- To complement local exhaust ventilation systems
- Environments with changing sources of smoke and dust
- Workstations, Workshops, Logistic and distribution centres
Benefits:
- Effective energy reduction of possible sparks and particles by the pinball method with 7 or more collision points
- Effective efficiency through tornado principle
- Minimization of heating costs due to air recirculation and air distribution
- Enormously long filter lifetime due to optimised air flow
- Increased safety with contamination-free dust disposal
- Low risk potential due to foreign bodies
- Cost-effective installation or retrofit, as no ductwork is needed
- New head element can be retrofitted to existing systems
- Safe transportation and easy installation by crane eyes
- Permanent operation by means of automatic dust disposal in dust collection bin
Properties:
- Automatic filter cleaning
- Lifting eyes
- Effective baffle plates for spark pre-separation
- KEMPER-Cloud connection via mobile network*
- Contamination -free dust disposal in one-way containers.
- Optimised airflow
- Pinball method and tornado principle
- Displacement flow principle, recommended by health and safety bodies
- System barely generates air turbulence
Filter:
- Filter Stages - 1
- Filter Method - Cleanable Filter
- Filter Cleaning Method - Rotating Nozzle
- Filter Surface - 20m²
- Number Filter Elements - 3
- Filter Surface Total - 60m²
- Filter Material - PTFE-membrane
- Filter Efficiency - >99.9%
- Dust Classification - M
Technical Data:
- Extraction capacity - 6000 m³/h
- Height - 3617 mm
- Diameter - 1172 mm
- Weight - 666 kg
- Motor power - 5.5 kW
- Power supply - 3 x 400 V / 50 Hz
- Rated current - 11 A
- Control voltage - 24 V, DC
- Noise level - 72 dB(A)
Additional Information:
- Fan type - Radial fan, direct driven
- Compressed air supply - 5 - 6 bar
- Capacity Dust collection container - 10l
| Brand | Kemper |
|---|
