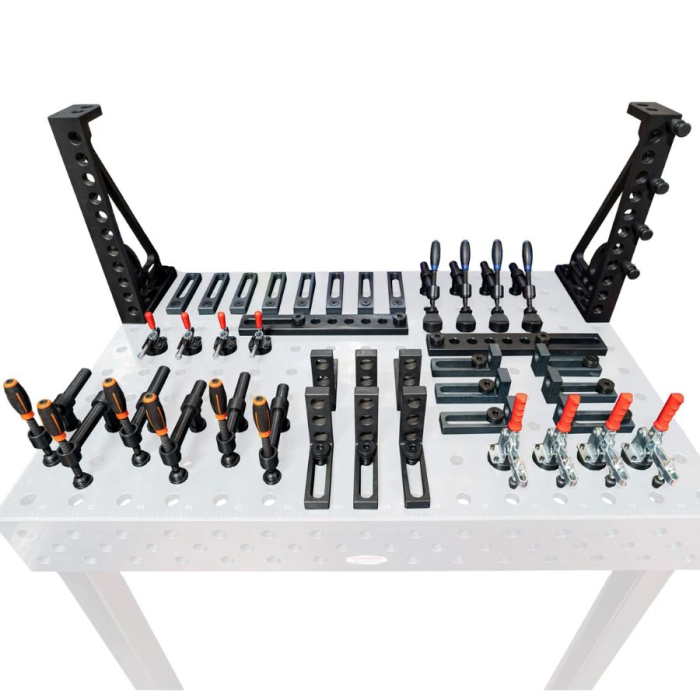

main product photo

Yahanda D28 3D Welding Table Accessories Kit-81 Pieces

Yahanda D28 3D Welding Table Accessories Kit – 81 Piece Fixture Kit for Multi-Angle Welding

Enhance your D28 3D modular welding table with the Yahanda D28 81 piece accessories kit, a complete solution for accurate, repeatable and versatile steel fabrication. This professional welding fixture kit provides clamps, V-blocks, locating bars, angles and locking bolts to help you position, align and secure workpieces with precision, making complex multi-angle assemblies fast and easy.

Compatible with all D28 welding tables (28 mm holes, 100 mm grid system), it is also suitable for other fixture or fabrication tables with the same dimensions, giving you maximum flexibility in your workshop. Ideal for professional fabricators, engineers and hobbyists, this kit ensures your welding table is ready for precise, efficient and safe fabrication work.

Images are for illustration only – table sold separately.

Price on Application
Enquire Now


In stock
SKU
D28KIT2
Be the first to review this product

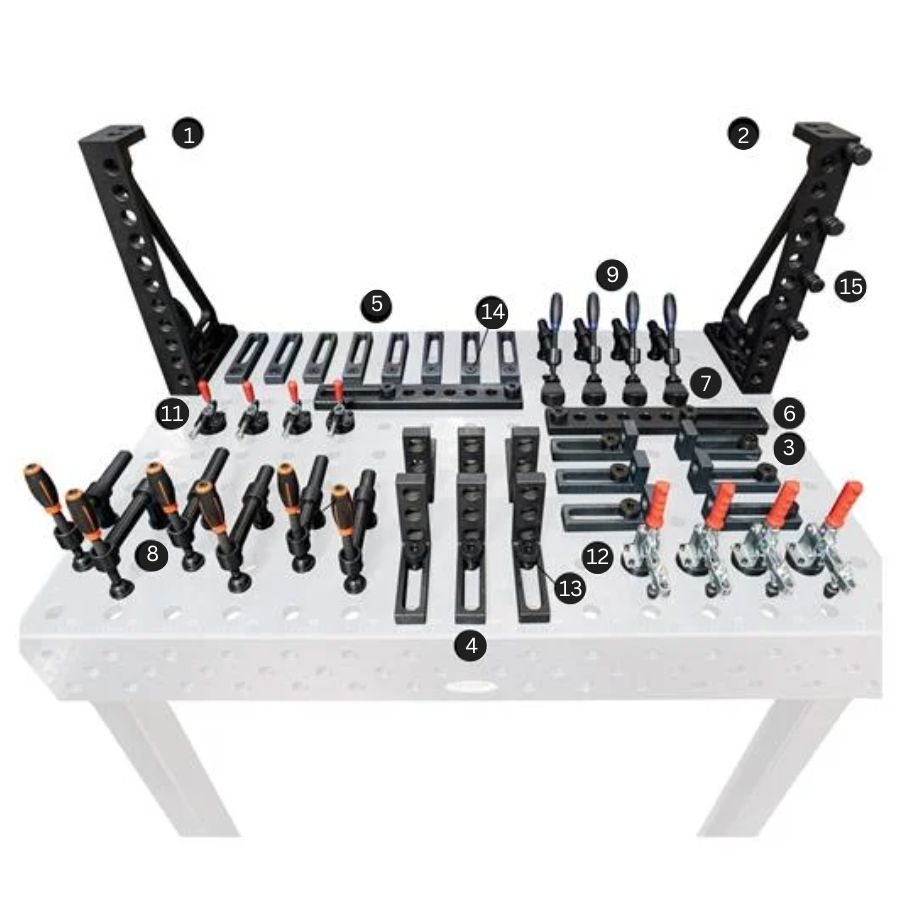

What’s Included in the Kit

Yahanda D28 3D Welding Table Accessories Kit-81 Pieces
Component Quantity
1 – Supporting Angle (Left) 1
2 – Supporting Angle (Right) 1
3 – Type B Locating Angle (YHD28JC175) 6
4 – Type C Locating Angle (YHD28JC175HS) 6
5 – Type C Locating Bar (YHD28PC225) 8
6 – Type F Locating Bar 2
7 – Type A V-Block 4
8 – Type A Telescopic Clamp(YHD28YSS300) 6
9 – Type A 45° Inclinable Clamp (YHD28YSQ300) 4
(Not shown) Type A Plain Square 2
11 – Type A Horizontal Toggle Clamp 4
12 – Type A Vertical Toggle Clamp (YHD28JY200S) 4
13 – Type A Quick Locking Bolt (YHD28KS2850) 20
14 – Type A Countersunk Locking Bolt 8
15 – Type A Magnetic Locking Bolt 4
(Not shown) Ground Connector(YHD28JD60) 1
Table Size 2000mm x 1000mm x 200mm
Total Height 800–850mm (50mm adjustment)
Weight 635kg
Table Thickness 25 ±1mm
Hole Diameter 28mm (D28 system)
Grid Pattern 100mm x 100mm
Hole Pitch Tolerance 100 ±0.02mm
Flatness ≤0.10mm/m²
Perpendicularity ≤0.1mm/m
Parallelism ≤0.10mm/m
Surface Roughness ≥Ra1.6, ≤Ra3.2
Support Legs 4 (standard)
Surface Features Chamfered edges & boreholes
Measurement Scale mm on two sides
Construction Reinforced rib design
Max Loading 5000kg
Uniformly Distributed Load (UDL) 2500kg/m²
Central Concentrated Load (CCL) 1600kg/m², Max deflection ≤0.3mm
