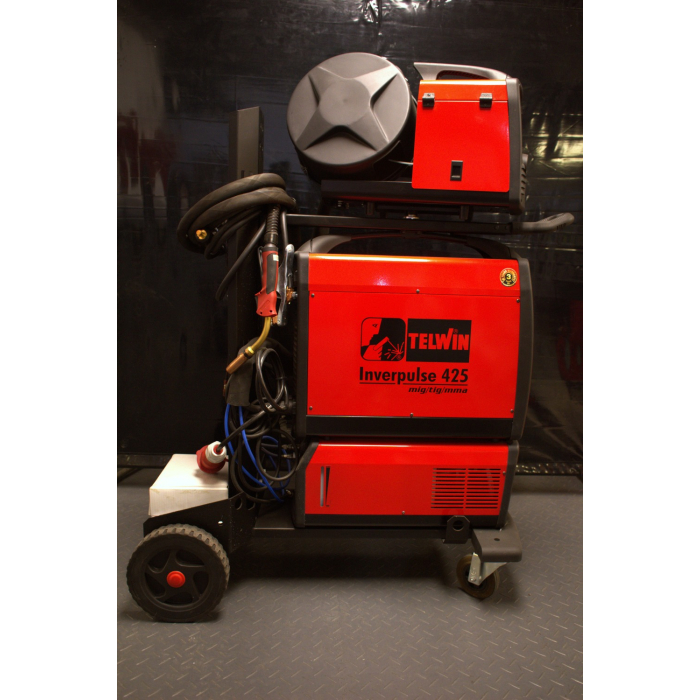

Ex-Demo Telwin Inverpulse 425 MIG Aqua Package
The Telwin Inverpulse 425 Aqua Package offers advanced multi-process welding capabilities, combining MIG/MAG, TIG-DC Lift, and MMA technologies in one high-performance system. Featuring innovative pulse and double-pulse welding modes, a microprocessor-controlled interface, and robust industrial features, this ex-demo unit delivers exceptional versatility across a wide range of materials.
Ex-Demo Telwin Inverpulse 425 MIG Aqua Package.
The Telwin Inverpulse 425 is an inverter-based welding machine designed to meet the demands of industrial workshops and fabrication environments. With the ability to handle materials including steel, stainless steel, HSS high-strength steels, aluminum, galvanized sheets, and their alloys, this machine is a versatile solution for diverse welding challenges. The SYNERGIC function simplifies setup by automatically optimizing welding parameters, ensuring precise control over the arc and weld quality. This ex-demo model is supplied complete with a trolley, water-cooling unit, and MIG/MAG welding accessories.
Key Features:
- Multi-Process Welding: Supports MIG/MAG (continuous, pulse, double pulse), TIG-DC Lift, and MMA modes (Optional TIG Torch / MMA Lead Required).
- Advanced Welding Modes: Includes pulse, double pulse, and SYNERGIC functions for consistent results across materials.
- Customization: Stores up to 40 custom welding programs and retains the last 10 alarm states.
- Industrial Compatibility: Connects to computer systems and robotic setups for seamless integration.
- Comprehensive Adjustments: Offers settings for bi-level, post-gas time, down slope, burn-back time, and more.
- Protection and Reliability: Built-in protections against overcurrent, undervoltage, overvoltage, and phase failure.
- Convenient Operation: Includes remote control capabilities, a four-roll wire feeder, and a robust trolley design.
Technical Data:
- Power Supply: 3-phase, 400V
- Max Current: 350 A @ 40% duty cycle
- Current at 60% Duty Cycle: 300 A
- Max No-Load Voltage: 83 V DC
- Power Consumption: 8-14 kW
- Efficiency: 87%
- Wire Diameters Supported:
- Steel: 0.6 – 1.6 mm
- Stainless Steel: 0.8 – 1.6 mm
- Aluminum: 0.8 – 1.6 mm
- Flux Cored: 1.0 – 1.6 mm
- Brazing: 0.8 – 1.2 mm
- Electrode Size Range: 1.6 – 6 mm (MMA)
- Dimensions: 113 x 58 x 146 cm
- Weight: 117 kg
- Protection Rating: IP23
Supplied with:
- 3mtr MB500 Water Cooled MIG Torch
- 0.8/1.0mm & 1.2/1.6mm Steel Roller
- 3mtr Earth Lead
- Regulator
- Gas Hose
- 2mtr Power Cable (Fitted with 5 pin 32 amp Plug)
As an ex-demo unit, this Telwin Inverpulse 425 provides premium welding performance at a reduced cost. Ideal for demanding industrial applications, it delivers precision, flexibility, and reliability in one package. Whether you’re welding structural steel or delicate aluminum, this machine is engineered to enhance productivity and deliver professional results every time.
| Brand | Telwin |
|---|
