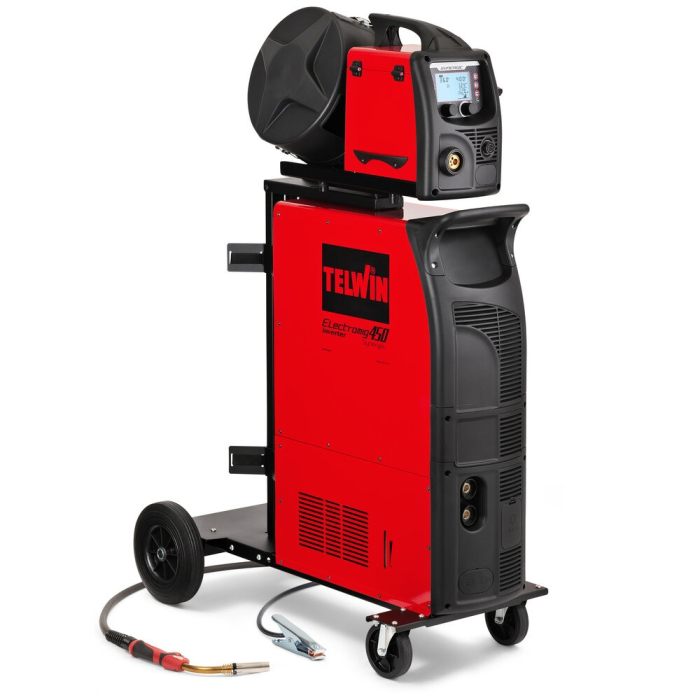

Telwin Electromig 450 Synergic Welder
The ultimate multiprocess welder for industrial and maintenance applications. The Telwin Electromig 450 Synergic + ACC combines advanced inverter technology with user-friendly controls, offering versatile welding options for MIG-MAG, Flux, TIG DC-Lift, MMA, and brazing. Designed for superior performance on materials like steel, stainless steel, aluminum, and galvanized sheets, it ensures exceptional results in various fields, including industry, installation, and bodywork.
Telwin Electromig 450 Synergic Welder.
The Telwin Electromig 450 is engineered to make professional welding accessible to operators of all skill levels. Thanks to its synergic adjustment and innovative ATC (Advanced Telwin Control) technology, it delivers precise arc control for outstanding weld quality, even on thin materials. Whether you're tackling heavy-duty industrial projects or intricate bodywork repairs, this welder adapts to your needs, ensuring optimal performance across diverse applications.
Key Feautures:
- Multi-process Capability: Supports MIG-MAG, Flux, TIG DC-Lift and MMA (Optional Torch & Leads Required for TIG/MMA)
- User-Friendly Controls: Choose between manual or synergic operation with 40 pre-set synergic curves for easy setup.
- Customisation: Create, save, and retrieve tailored welding programs for specific tasks.
- Advanced Adjustments: Includes MIG-MAG wire up slope, electronic reactance, burn-back, post-gas, and material thickness settings.
- MMA Features: Offers hot start, arc force, anti-stick, and VRD selection for reliable stick welding.
- Safety Protections: Equipped with thermostatic, overvoltage, undervoltage, and overcurrent safeguards.
- Generator Friendly: Compatible with engine-driven generators with ±15% voltage tolerance.
Technical Data:
- Mains Voltage: 400 V (three-phase)
- Frequency: 50/60 Hz
- No-Load Voltage: 106/73 V
- Current Range: 20–320 A (230V) / 20–400 A (400V)
- Max Current: 320 A @ 25% / 400 A @ 30%
- Absorbed Power at 60%: 6.4 kW (230V) / 9.4 kW (400V)
- Efficiency: 89%
- Power Factor: 0.9
- Wire Diameters:
- Steel: 0.6–2 mm
- Stainless Steel: 0.8–2 mm
- Aluminum: 0.8–1.6 mm
- Flux Cored: 1–2 mm
- Brazing: 0.8–1.2 mm
- Electrodes (DC): 1.6–8 mm
- Protection Degree: IP23
- Dimensions: 103 x 51 x 145 cm
- Weight: 73 kg
Supplied With:
- 3mtr MB36 Torch
- 0.8/1.0mm and 1.2/1.6mm Steel Rollers
- 3mtr Earth Lead
- Gas Hose
- 2mtr Power Cable (No Plug Fitted)
Whether you're welding for industry, maintenance, installation, or bodywork, the Telwin Electromig 450 Synergic + ACC is the dependable choice. With its advanced technology and versatile features, this welder ensures precision, efficiency, and ease of use, making it a valuable addition to any workshop. Get ready to elevate your welding capabilities with Telwin.
Please note: This is an ex-showroom machine with no box.
