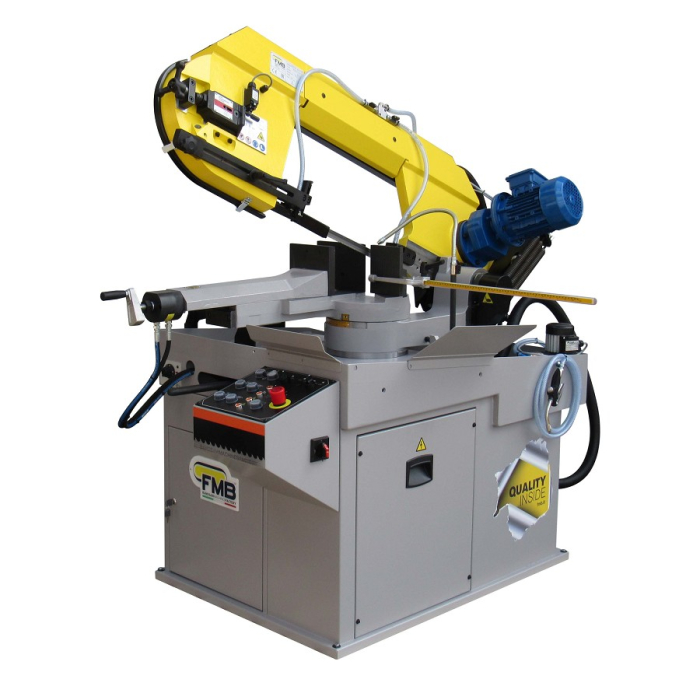

FMB Mercury Semi-Automatic Bandsaw
The FMB Mercury Semi-Automatic Bandsaw delivers precise, efficient, and reliable metal cutting with advanced features designed for ease of use. Built with high-quality materials such as aluminium alloy, steel, and cast iron, this bandsaw offers exceptional durability and performance. With variable blade speed control, hydraulic head feed, and a heavy-duty design, it’s ideal for demanding workshop environments.
FMB Mercury Semi-Automatic Bandsaw.
The FMB Mercury Semi-Automatic Bandsaw is a professional-grade metal cutting solution designed for accuracy, durability, and operator convenience. Capable of cutting angles from 0° to 60°, it is equipped with advanced features such as VHZ electronic blade speed control (16–120 m/min), hydraulic head feeding, and a precision clamping system. The combination of robust construction and innovative engineering ensures consistent, high-quality cuts across a wide range of applications. Whether you’re cutting mild steel, stainless steel, or other materials, the Mercury bandsaw offers the reliability and performance that FMB machines are renowned for.
Key Features:
- Semi-automatic operation with cutting capability from 0° to 60°.
- Rigid head structure with aluminium alloy, steel, and cast iron components for strength and durability.
- VHZ electronic blade speed control (16–120 m/min) for versatile cutting performance.
- Hydraulic head feeding system with adjustable descent via single-turn flow valve.
- Dynamometric blade tensioning for optimal cutting accuracy.
- Precision blade guide system with side bearings, carbide plates, and top bearing.
- Ergonomic working top and control panel for user-friendly operation.
- Heavy-duty cast iron vice with manual positioning and hydraulic locking cylinder.
- Graduated scale and locking lever for precise angle measurement and stops at 0°, 45°, and 60°.
- Robust material feeding roller and millimetres length stop (0–600 mm).
- 30-litre coolant tank and electric pump for efficient blade cooling.
- IP55 electrical cabinet with lockable main switch and short-circuit protection.
- Push-button control panel for full operational control and alarm detection.
- Heavy-duty base with chip collection system.
Technical Data:
- Cutting Capacity: 0° to 60° angles
- Blade Speed: 16–120 m/min (electronically controlled)
- Coolant Tank Capacity: 30 litres
- Motor Voltage Options:
- 400V/50Hz/3Ph (standard)
- 230V/50Hz/1Ph
- 230V/50Hz/3Ph
- 220V/60Hz/3Ph
- 440V/60Hz/3Ph
- Blade Tensioning: Dynamometric system
- Material Stop Length: 0–600 mm
- Protection Level: IP55
- Hydraulic Unit: Controls head and vice cylinder movements
- Construction: Aluminium alloy, steel, and cast iron head structure
At Welding Superstore, we pride ourselves on supplying a wide range of FMB bandsaws, including the Mercury model, which is engineered for precision and long-term performance. Whether you need a versatile semi-automatic bandsaw for fabrication, maintenance, or production, our team of experts can help you choose the ideal machine for your requirements. Contact us today to discuss your cutting applications and discover why FMB’s ethos of quality, reliability, and innovation sets them apart in the metal cutting industry.
Finance options available.
| Brand | FMB |
|---|
