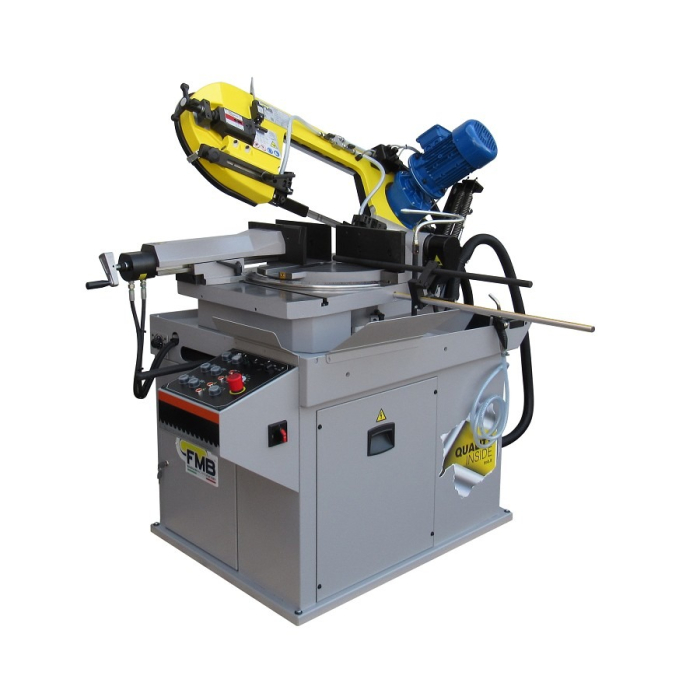

FMB Omega Semi-Automatic Bandsaw

FMB Omega Semi-Automatic Bandsaw.

The FMB Omega Semi-Automatic Bandsaw is designed for workshops and fabrication environments that require dependable performance and high cutting efficiency. Built with a solid aluminium alloy head structure and direct-drive gearbox, this bandsaw is engineered to handle heavy workloads while maintaining long-term reliability. Suitable for cutting angles from 0° to 60° right and up to 45° left, it offers versatility for complex jobs, all while maintaining clean, consistent cuts.

FMB’s focus on quality, strength, and reliability is clearly visible in the Omega's construction and design. With features such as a hydraulic head feeding system, integrated blade cleaning brush, and precision blade guides, the machine delivers excellent performance with minimal maintenance. It also includes a large ergonomic working surface and an intuitive control panel, ensuring comfortable, efficient operation for the user. Whether you're handling structural steel, pipes, or solid bar, the FMB Omega offers the cutting capabilities your workshop demands.

Key Features

• Semi-automatic operation for efficient cutting
• Cuts from 0° to 60° right and 45° left
• Head structure made from special aluminium casting alloy
• Hydraulic head feeding system with descent adjustment via front-mounted flow valve
• Dynamometric blade tensioning for optimal performance
• Integrated blade cleaning brush within head protection
• Robust blade guides with side bearings, carbide plates, and top bearing
• Direct-drive gearbox with hardened teeth and long-lasting grease lubrication
• Manual vice positioning with hydraulic locking
• Ergonomic working table and control panel
• Built-in head rotation stops at 0°, 45°, and 60°
• Graduated angle scale with rugged locking lever
• Millimetric length stop system for repeatable cuts
• Coolant system housed within the machine base (20L capacity)
• Heavy-duty sheet metal base with chip and coolant containment
• Safety-focused electrical cabinet (IP55 rating) with 24VAC and lockable main switch
• Sensor to memorise starting head position
• Suitable for a wide range of power supply configurations

Technical Data

• Cutting Angle Range: 0° to 60° right, up to 45° left
• Blade Speeds:
  • 2-speed version: 35 / 70 m/min
  • VHZ version: 16 – 120 m/min
• Cutting Length: 0 – 600 mm
• Gearbox Output Shaft Diameter: Ø 40 mm
• Coolant Tank Capacity: 20 litres
• Line Voltage Options:
  • Standard: 400V / 50Hz / 3Ph
  • Optional:
  • 230V / 50Hz / 1Ph
  • 230V / 50Hz / 3Ph
  • 110V / 60Hz / 1Ph
  • 220V / 60Hz / 3Ph
  • 440V / 60Hz / 3Ph
  • 575V / 60Hz / 3Ph
• Protection Rating: IP55
• Control Panel Functions:
  • Blade speed selection
  • Hydraulic head raise/lower
  • Coolant control
  • Alarm indicator lights
• Blade Guide System: Side bearings, carbide plates, top bearing
• Blade Tensioning: Dynamometric
• Head Descent: Hydraulic cylinder with flow valve adjustment
• Vice: Manual positioning with hydraulic locking
• Angle Stops: 0°, 45°, 60°
• Measuring System: Millimetric reference length stop
• Base Unit Features:
  • Sheet metal construction
  • Chip and coolant containment
  • Lockable door housing coolant and hydraulic systems
• Memory Sensor: Memorises head start position

The FMB Omega Semi-Automatic Bandsaw is an ideal solution for metalworkers, fabricators, and engineering workshops that demand a tough, precise, and user-friendly machine. With advanced features, solid construction, and FMB’s commitment to quality, this bandsaw stands out in its class.

At Welding Superstore, we offer a wide range of FMB bandsaws, backed by expert knowledge and support. If you're unsure which model suits your needs, contact us today and we’ll help match you with the right machine for your application.
