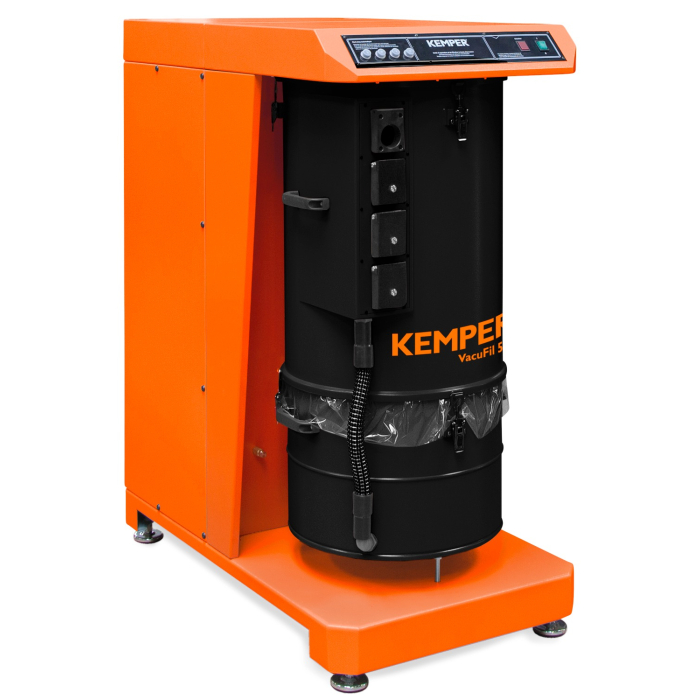

Kemper Welding Fume Extraction VacuFil 500

The Kemper Welding Fume Extraction VacuFil 500 is a high-performance solution designed for continuous welding smoke and dust extraction. Engineered for multiple workstations, it delivers robust, uninterrupted operation with automatic filter cleaning.

£14,701.50 £12,251.25

In stock

SKU

KEM-82755

Be the first to review this product

Details

Kemper Welding Fume Extraction VacuFil 500.

The VacuFil 500 is the ultimate high-vacuum extraction unit for demanding welding environments. With its powerful side channel compressor and KemTex® ePTFE filter cartridges, it effectively captures harmful particles, providing unmatched health protection for employees. Ideal for torch and robot extraction, this versatile unit supports up to four workstations and can integrate with a central pipe system, making it perfect for non-stop industrial use.

Applications:

High levels of smoke and particles
Non-stop operation
Torch extraction, robot extraction
Suction nozzles or high vacuum exhaust arms

Benefits:

High efficiency due to automatic filter cleaning
Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration
Uninterrupted continuous operation due to automatically controlled filter cleaning

Properties:

Automatic filter cleaning, pressure-controlled
Dust collection container
Filter monitoring
Side channel blower
KemTex® ePTFE filter cartridge
4 x 45mm and 1 x 100mm hose/duct connector

Filter:

Filter stages - 1
Filter method - Cleanable filter
Filter cleaning method - Rotating nozzle
Filter surface - 10 m²
Type of filter - Filter cartridge
Filter material - ePTFE membrane
Filter efficiency - 99.9 %
Dust classification - M

Technical Data:

Extraction capacity - 500 m³/h
Fan performance - 680 m³/h
Dimensions (w x t x h) - 655 x 1197 x 1377 mm
Weight - 270 kg
Motor power - 5,5 kW
Power supply - 3 x 400 V / 50 Hz
Rated current - 12.9 A
Noise level - 74 dB(A)

Additional Information:

Fan type - Side channel blower
Compressed air supply - 5 - 6 bar
Capacity Dust collection container - 40 l
