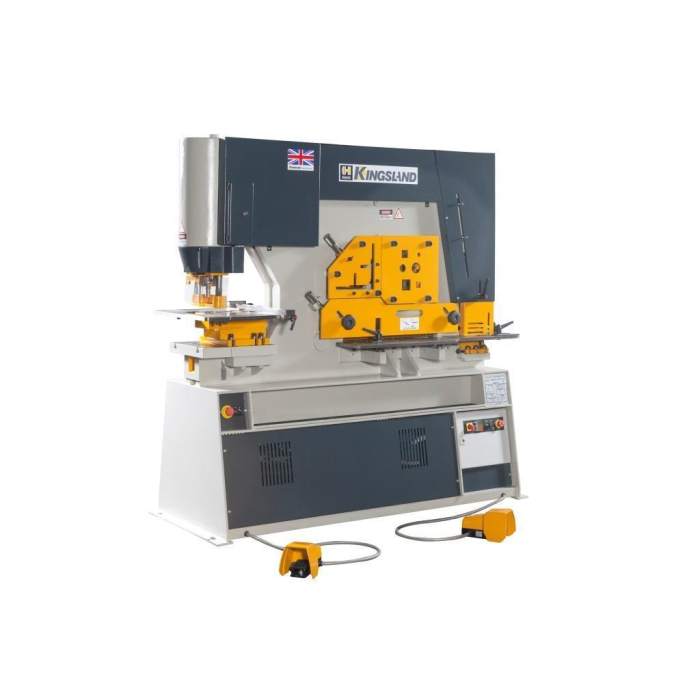

The Kingsland Multi 70 Steelworker 415V is a robust five-station machine designed to handle a wide variety of metalworking tasks. Equipped with dedicated stations for punching, shearing, angle and section cropping, and notching, this versatile machine comes standard with repetition support tables and adjustable hold-downs at each station.

Key Features and Functionality:

• Easy Setup: This freestanding machine only requires electrical connection and hydraulic oil to be ready for use on a solid, stable floor.
• Dual Operator System: The hydraulic system is operated by two foot pedals—one for the punch and cylinder, the other for the shear and cylinder—allowing two operators to work simultaneously.
• Precision Power Control: Power inching ensures safe and precise positioning across all five workstations, with adjustable stroke length via limit switches for optimal performance.
• Centralized Lubrication: A one-shot lubrication system minimizes maintenance requirements, ensuring smooth operation.
• Optional ‘Production Pack’ Available: For enhanced functionality, the optional pack includes a low-voltage halogen lamp, a ruled length stop, fine punch stroke adjustment, and measuring scales for the notch station.

Workstation Breakdown:

• Punch Station: Features a spacious punch bed with a removable front block for a wide range of applications. Standard rules and guides are included for repetitive tasks.
• Angle Station: Capable of cutting large angles at both 90° and 45°. Intermediate angles between 45° and 90° can be achieved by trimming the flange after a 90° cut.
• Section Cutting Station: Equipped with blades for cutting round and square bars. Additional equipment can be added to handle channels, T-sections, and other profiles.
• Shearing Station: Features an adjustable hold-down system for material thickness, a feed table with adjustable guides for precise material alignment, and a mitre cutting capability up to 45°.
• Notching Station: Comes with a rectangular notch table and adjustable back stops, making repetitive positioning easy.

Optional Attachments Available: Expand the machine's capabilities with additional accessories tailored to your needs.

Standard Equipment:

• Easy change Punch Holder, Ring and Adaptors
• Swing away Punch Stripper with simple adjustment
• Universal Die Bolster for the punching of flats, angle and flanges of Channel and I Beam
• Blades for cropping angle, round/square bar, flat bar
• Punch Support Table c/w Side Stops
• Shear Support Table
• Adjustable Hold Down for Shear, Angle and Section Stations
• Shielded Foot Pedal Control to both Punch and Shear ends
• Power Inching and Adjustable Stroke
• Remote Foot Pedal Control
• Machine painted in light grey RAL 7044, dark grey RAL 7031 and yellow RAL 1007
• NEW power saving mode electric box
• Automatic Overload Relief on Hydraulic System
• Electric I.P. 55 Class ‘F’ T.E.F.C. Motor
• Low volt electrical control circuit
• Comprehensive Safety Guards to all Work Stations
• Complete Service Tool Kit

Data Specifications:

Punching:

• Rated Capacity: 70 Ton
• Maximum Capacity: 26 x 20mm
• Diameter x Thickness: 57 x 9mm
• Stroke Length: 55mm
• Cycle/Min (20mm Stroke): 34
• Standard Throat Depth: 305mm
• Deep Throat Model: 625mm
• Largest Hole (Optional): 160mm
• Maximum Section: 305mm
• Working Height: 1030mm

Shearing:

• Flat Bar - Max. Thickness: 300 x 20mm
• Flat Bar - Max. Width: 375 x 15mm
• Angle Flange Trim - Max. 45°: 100 x 15mm
• Working Height: 890mm
• Flat Bar - Max Thickness - 300 x 20mm
• Flat Bar - Max Width - 375 x 15mm

Angle Cutting:

• 90° Cut: 130 x 13mm
• 45° Mitre (True Int./Ext.): 70 x 10mm
• Working Height: 1130mm

Notching:

• Material Thickness: 10mm
• Width – Rectangle: 45mm
• Depth – Rectangle: 90mm
• Depth - Vee (*): 60mm
• Angle Flange - Max. Profile: 100 x 10mm
• Working Height: 890mm

Section Cutting:

• Round – 45mm
• Square – 45mm
• Channel - 130 x 65mm
• Tee - 90 x 12mm

Corner Notching:

• Maximum Capacity: 250 sq x 6

Tube Notching:

• Max Outside Diameter: 83mm

Bending:

• Max Bar Bending - 250 x 13
• Max Sheet Bending - 500 x 3

Punching at Notch Station:

• Throat Depth: 125mm
• Maximum Capacity: 38 x 8mm

Technical Data:

• Motorpower: 5,5kW
• Net Weight - Std. Throat: 1620kg
• Gross Weight - Std. Throat: 1740kg
• Machine Dim. (L x W x H): 164 x 71 x 180cm
• Packed Dim. (L x W x H): 175 x 86 x 197cm

This multi-functional steelworker is an ideal investment for any workshop looking to boost efficiency, precision, and productivity.
