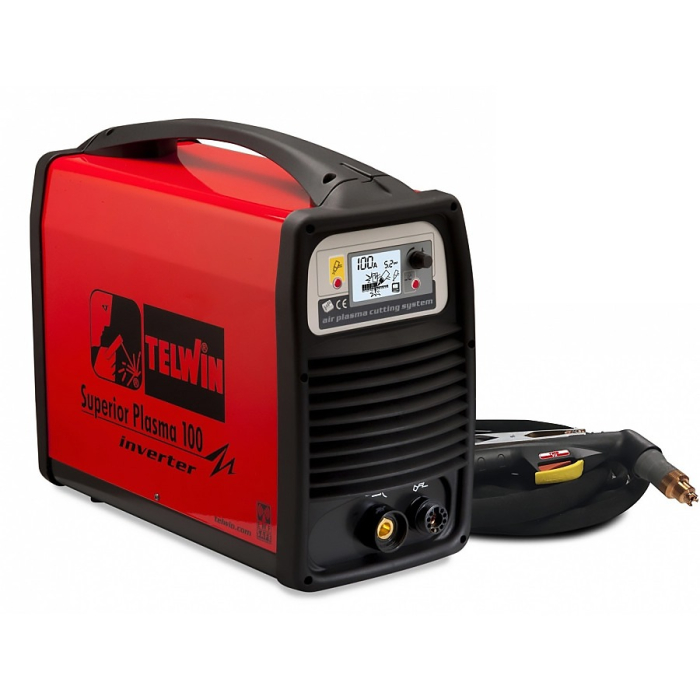

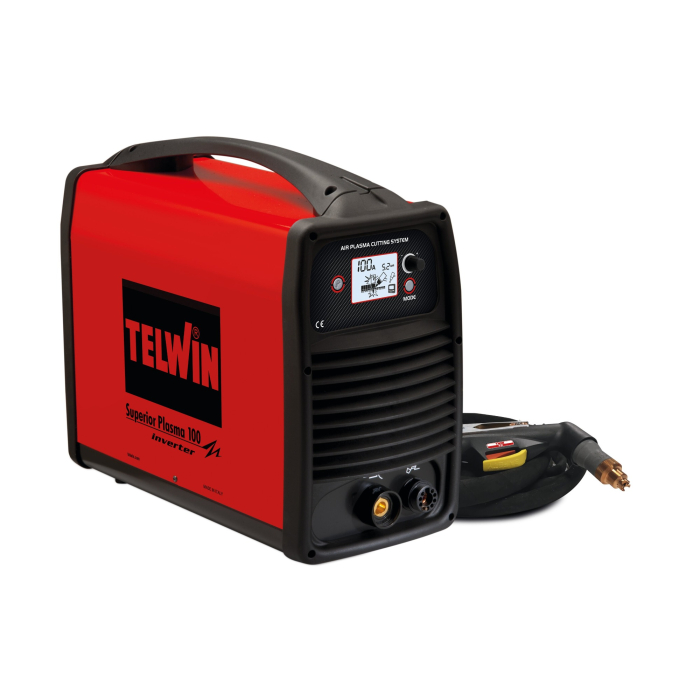

Telwin Superior Plasma 100 Plasma Cutter (816172)
The Telwin Superior Plasma 100 is a powerful three-phase plasma cutter designed for high-performance cutting of conductive materials up to 40mm thick. With inverter technology, digital controls, and a robust PX torch included, it's ideal for both manual and automated cutting applications in industrial environments.
Telwin Superior Plasma 100 Plasma Cutter.
The Telwin Superior Plasma 100 Plasma Cutter is a high-capacity, inverter-based plasma cutting system engineered for precision and durability. Operating on a 415V three-phase power supply, this advanced machine offers contact striking of the pilot arc and a cutting capacity of up to 40mm, making it the perfect solution for cutting through steel, stainless steel, aluminium, copper, brass, and galvanised materials. Whether you're working in heavy fabrication, industrial maintenance, or automated production, this plasma cutter ensures fast, clean, distortion-free cuts every time.
Designed for demanding workshop environments, the Telwin Superior Plasma 100 features a stable, adjustable cutting current and an easy-to-use digital control panel. It’s equipped with essential safety features such as thermostatic, overvoltage, undervoltage, overcurrent, and torch short circuit protections. Supplied with a 6m PX plasma torch and a 5m earth lead, it’s ready to go right out of the box.
Key Features:
- Inverter-based plasma cutting technology
- Maximum cutting capacity: 40mm
- Suitable for all conductive metals including steel, stainless, aluminium, copper, and brass
- Contact pilot arc ignition for fast starts
- High stability cutting current
- Easy-to-read and adjust digital control panel
- Compatible with automated cutting systems
- Built-in safety protections: overvoltage, undervoltage, overcurrent, thermal protection, and torch short circuit
- Lightweight and portable at only 28kg
- Supplied with PX torch and earth lead
Technical Data:
- Input Voltage: Three-phase 230V / 400V
- Frequency: 50 / 60 Hz
- Current Range: 30–70 A / 30–100 A
- Max Output Current: 70 A @ 30% / 100 A @ 30%
- Open Circuit Voltage: 357V / 315V
- Max Absorbed Current: 23.7 A / 20.8 A
- Max Absorbed Power: 8.6 kW / 13.5 kW
- Efficiency: 87%
- Power Factor (cos φ): 0.9
- Max Cutting Thickness: 40mm (recommended 30mm)
- Compressed Air Requirement: 290 L/min at 4–5 bar
- Protection Rating: IP23
- Dimensions: 53 x 24 x 45 cm
- Weight: 28 kg
- EAN: 8004897990309
- Warranty: 3 years
Kit Includes:
- 6m PX plasma torch
- 5m earth lead
If you need a high-powered, precise, and reliable plasma cutting solution, the Telwin Superior Plasma 100 delivers outstanding results across a wide range of conductive materials. Whether you're operating in a manual or automated setup, this robust machine ensures consistent performance and clean cuts, backed by Telwin's trusted engineering. Order now and take your cutting capabilities to the next level.
| Brand | Telwin |
|---|
