Telwin Superior Plasma 70 Plasma Cutter (816170)
The Telwin Superior Plasma 70 is a professional-grade 70A inverter plasma cutter designed for precise, high-speed cutting of conductive materials up to 30mm thick. With advanced functions, digital controls, and compatibility with automated cutting systems, it’s the ideal solution for demanding workshop and industrial environments.

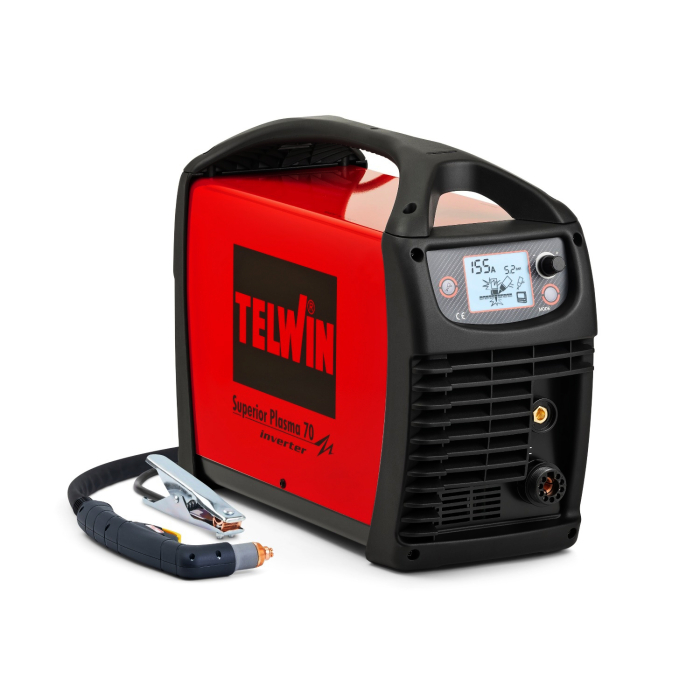

Telwin Superior Plasma 70 Plasma Cutter.
The Telwin Superior Plasma 70 Plasma Cutter (816170) is a high-performance three-phase inverter plasma cutting system designed for use with compressed air and pilot arc contact start. Built for precision, power, and ease of use, it’s equipped with advanced features including grid cutting, gouging, and compatibility with automated cutting systems. Whether you're cutting stainless steel, aluminium, copper, or galvanised steel, this machine delivers distortion-free, clean cuts even at high thicknesses—making it perfect for professional fabricators, workshops, and industrial applications.
Key Features:
- 70A cutting capacity with max cut thickness of 30mm
- Inverter-based technology for efficient, stable cutting
- Strike-on-contact pilot arc for fast arc initiation
- Grid cutting, gouging, and 4T operation modes
- Compatible with automated cutting systems
- LCD digital control panel for easy adjustments
- High current stability ensures consistent performance
- Multiple safety protections: thermal, voltage, overcurrent, air and torch circuit
- Remote control compatibility
- Lightweight and portable (15.8 kg)
Technical Data:
- Code: 816170
- Input Voltage: 230 / 400V (Three Phase)
- Frequency: 50 / 60 Hz
- Max Cutting Current (EN60974-1): 70A @ 30%
- Current Range (DC): 20 – 70A
- Cutting Current @ 60%: 50A
- Cutting Current @ 100%: 40A
- Max Absorbed Current: 13A
- Output Voltage Range: 80 – 210V
- Max No Load Voltage: 325V
- Max Absorbed Power: 8.5 kW
- Fuse: 10A
- Efficiency: 90%
- Max Cutting Thickness: 30mm
- Compressed Air Requirement: 200 l/min @ 4–5 bar
- Power Cable Length: 2.5 m
- Protection Class: IP23
- Standards: EN 60974-1 / -10
- Dimensions: 47 x 19 x 35.5 cm
- Weight: 15.8 kg
- Warranty: 3 Years
Kit Includes:
- 6m PV Plasma Torch
- 5m Earth Lead
Engineered for versatility and built to last, the Telwin Superior Plasma 70 is a powerful and compact plasma cutting system designed to meet the needs of professional metalworkers. From heavy-duty cutting to automation integration, it provides the reliability, control, and safety you need to take on complex cutting tasks with confidence. Backed by a 2-year warranty and complete with essential accessories, it’s a smart investment for any serious welding and fabrication setup.
| Brand | Telwin |
|---|
