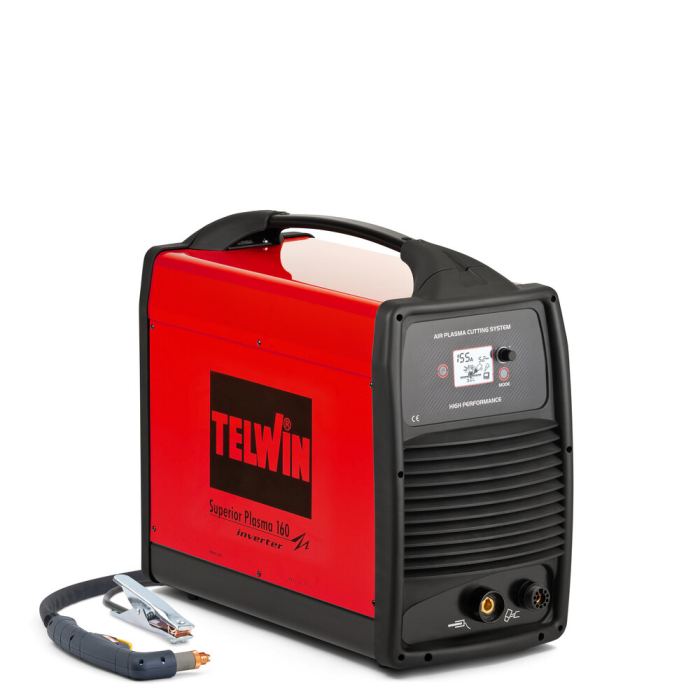

Telwin Superior Plasma 160 Plasma Cutter (816174)
The Telwin Superior Plasma 160 Plasma Cutter is a powerful, three-phase inverter system delivering up to 160A for high-precision cutting. With a maximum cut thickness of 50mm, advanced pilot arc technology, and compatibility with automated systems, it’s built for demanding industrial and workshop applications.
Telwin Superior Plasma 160 Plasma Cutter.
Engineered for performance, the Telwin Superior Plasma 160 Plasma Cutter is the ideal solution for professionals who demand precision, speed, and reliability. This high-capacity inverter-based plasma cutting system operates on a 3-phase 230/400V power supply and delivers clean, distortion-free cuts on conductive materials up to 50mm thick. Whether cutting stainless steel, aluminium, copper, or galvanized steel, it’s designed to perform in even the most challenging environments.
Features:
- Inverter plasma cutting system with compressed air operation
- Contact-strike pilot arc for quick, clean starts
- Maximum cutting thickness of 50mm on conductive materials
- Digital LCD display for easy parameter adjustment and monitoring
- High stability cutting current for consistent results
- Compatible with automated cutting systems via integrated interface
- Supports remote control operation
- Grid cutting and gouging functions
- Compact and portable design
- Built-in protection against overvoltage, undervoltage, overheating, overcurrent, air supply failure, and torch circuit faults
Technical Data:
- Product Code: 816174
- Mains Voltage: 3ph 230/400 V
- Mains Frequency: 50 / 60 Hz
- Cutting Current Range (DC): 30 - 160 A
- Max Cutting Current (EN60974-1): 150 A @ 30%
- Cutting Current @ 60% Duty Cycle: 120 A
- Cutting Current @ 100% Duty Cycle: 100 A
- Max Absorbed Current: 40 A
- Max Absorbed Power: 25 kW
- Output Voltage Range: 80 - 220 V
- No Load Voltage: 348 V
- Fuse Rating: 25 A
- Efficiency: 86%
- Max Cutting Thickness: 50 mm
- Compressed Air Capacity: 290 l/min
- Compressed Air Pressure: 4 - 5 bar
- Supply Cable Length: 3 m
- Protection Class: IP23
- Standards Compliance: EN 60974-1 / -10
- Dimensions: 67 x 31 x 56 cm
- Weight: 46 kg
- Warranty: 3 years
Kit Includes:
- 6m PX plasma cutting torch
- 5m earth lead
The Telwin Superior Plasma 160 is a professional-grade plasma cutter designed to meet the demands of heavy-duty cutting jobs with precision and control. Its compatibility with CNC and automated systems, combined with advanced cutting features and robust safety protections, makes it the go-to choice for metal fabricators, workshops, and industrial users. Get cleaner cuts, faster performance, and greater reliability—all from a trusted brand in welding and cutting technology.
| Brand | Telwin |
|---|
