Telwin Technology Plasma 60 XT Plasma Cutter (816148)
The Telwin Technology Plasma 60 XT is a high-performance 60A plasma cutter designed for precision cutting of all conductive materials using compressed air. With advanced features such as grid cutting, gouging, and a digital interface, this compact yet robust plasma cutter delivers professional-grade results in a wide range of workshop and on-site applications.

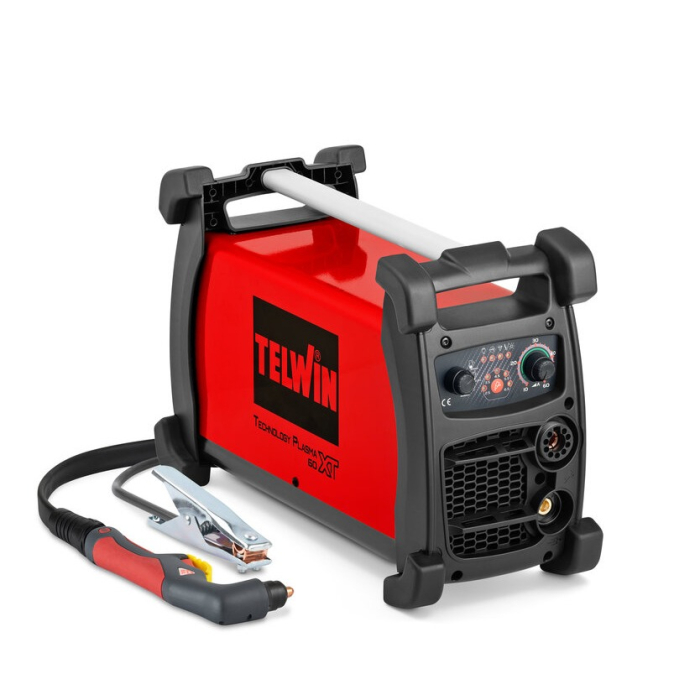

Telwin Technology Plasma 60 XT Plasma Cutter.
Built for professionals who demand speed, accuracy, and reliability, the Telwin Technology Plasma 60 XT Plasma Cutter offers cutting-edge performance in a compact, impact-resistant design. This inverter-based plasma cutting system uses compressed air and contact striking of the pilot arc to ensure smooth, distortion-free cuts up to 20mm on steel, stainless, aluminium, copper, brass, and more. Its advanced features, intuitive digital display, and integrated safety protections make it an excellent choice for fabrication shops, repair work, or mobile site use.
Key Features:
- Inverter plasma cutter with 60A output
- Maximum cutting thickness: 20 mm
- Pilot arc with contact strike for clean starts
- Suitable for all conductive materials: steel, stainless steel, galvanised steel, aluminium, copper, brass
- Advanced modes: grid cutting, 4T cut, and gouging
- Digital air pressure gauge on the front panel
- LED indicators for live voltage, torch protection, and consumables change
- Torch automatic cooling for longer life and improved performance
- Built-in safety systems: thermostatic, overvoltage, undervoltage, overcurrent, and no-air protection
- Rugged, impact-resistant construction with compact design for easy transport
Technical Data:
- Product Code: 816148
- Input Voltage: 230 V (Single Phase)
- Frequency: 50 / 60 Hz
- Current Range: 10 – 60 A
- Max Cutting Current (EN60974-1): 50 A @ 30%
- No Load Voltage: 313 V
- Max Absorbed Current: 34 A
- Max Absorbed Power: 5.5 kW
- Efficiency: 90%
- Power Factor: 0.7
- Cutting Current @ 60% Duty Cycle: 35 A
- Cutting Current @ 100% Duty Cycle: 30 A
- Max Cutting Thickness: 20 mm
- Compressed Air Capacity: 100 L/min
- Compressed Air Pressure: 4 – 5 bar
- Protection Rating: IP23
- Dimensions (L x W x H): 50.6 x 18.2 x 29.2 cm
- Weight: 10.3 kg
Kit Includes:
- 4m PH plasma torch
- Earth lead
Whether you're in a fabrication shop or out on-site, the Telwin Technology Plasma 60 XT offers everything you need for high-quality plasma cutting. With its compact design, intuitive controls, and full range of safety features, it delivers dependable performance across all conductive materials. Invest in power, precision, and portability.
