Telwin Technology Plasma 54 XT Kompressor (816147)
The Telwin Technology Plasma 54 XT Kompressor is a 40A inverter plasma cutter with an integrated compressor—no external air supply required. Designed for distortion-free cutting of all conductive materials, this compact yet robust machine delivers powerful performance with minimal setup.

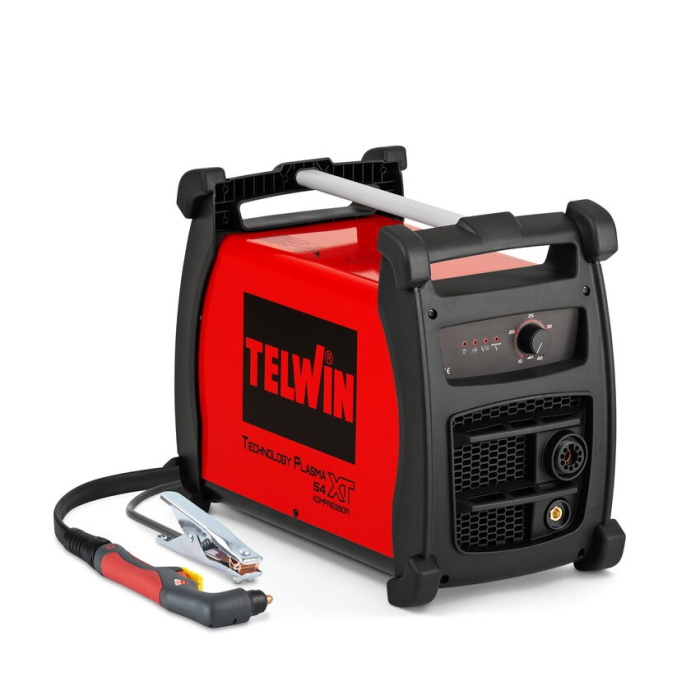

Telwin Plasma 54 XT Kompressor Plasma Cutter.
Take your cutting capabilities to the next level with the Telwin Technology Plasma 54 XT Kompressor (816147). This high-performance 40A inverter plasma cutter comes with a built-in compressor, eliminating the need for an external air supply. Whether you're working with mild steel, stainless, aluminium, or copper, the Plasma 54 XT delivers precise, clean cuts up to 12mm thick. Engineered for speed, reliability, and portability, it's an ideal solution for workshops, on-site work, or any environment where efficiency and mobility matter.
Features:
- Inverter plasma cutting system with built-in air compressor
- Cuts all conductive materials including steel, stainless, aluminium, brass, and copper
- Striking of pilot arc on contact for easy starts
- Compact, lightweight, and highly portable
- Robust, impact-resistant construction
- Integrated warning LEDs for torch voltage and consumables replacement
- Automatic torch cooling system
- Full protection against overcurrent, over/undervoltage, overheating, and air failure
- No external air compressor required
Technical Data:
- Product Code: 816147
- Power Supply: 230V (Single Phase)
- Frequency: 50 / 60 Hz
- Current Range: 10 – 40 A
- Max Cutting Current (EN60974-1): 35 A @ 30% Duty Cycle
- Max No-Load Voltage: 313 V
- Max Absorbed Current: 27.5 A
- Max Absorbed Power: 4.5 kW
- Efficiency: 82%
- Power Factor: 0.7
- Max Cutting Thickness: 12 mm
- Protection Degree: IP23
- Dimensions (LxWxH): 47 x 26 x 37.8 cm
- Weight: 17.8 kg
Kit Includes:
- 4m PK Plasma Torch
- Earth Lead
The Telwin Technology Plasma 54 XT Kompressor is a reliable, self-sufficient solution for professionals who need clean, fast, and portable cutting power. With no need for an external air source, it’s perfect for mobile use, quick setups, and confined workshops. Whether you're cutting steel structures or fabricating components, this plasma cutter delivers precision and durability every time.
Brand | Telwin |
---|
