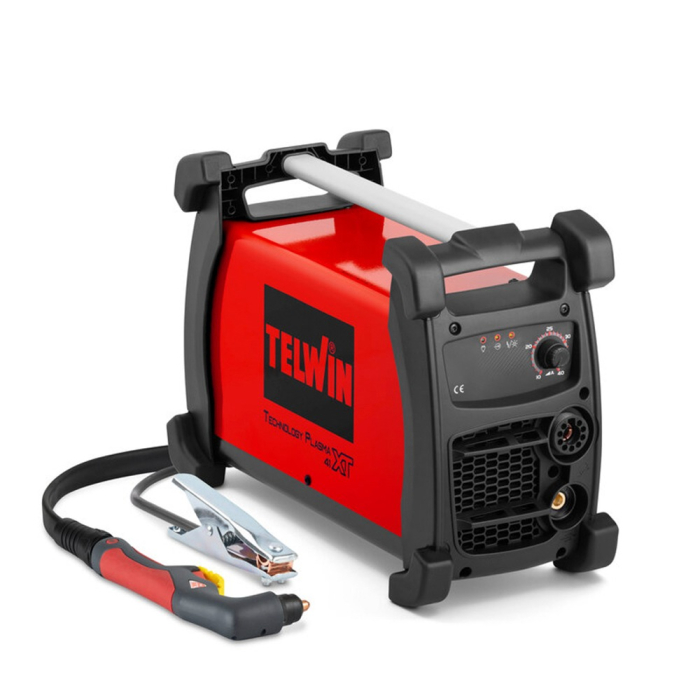

Telwin Technology Plasma 41 XT Plasma Cutter (816146)

Telwin Technology Plasma 41 XT Plasma Cutter.

The Telwin Technology Plasma 41 XT Plasma Cutter (816146) is a high-performance, compact inverter plasma cutting system designed for fast, precise, and distortion-free cutting of conductive metals. With a powerful 40A single-phase output, compressed air operation, and pilot arc striking, it delivers clean, consistent results across steel, stainless steel, aluminium, galvanised metals, copper, and more. Engineered for efficiency and versatility, this lightweight yet rugged plasma cutter features advanced built-in protection systems, making it a reliable choice for professional use in bodyshops, maintenance, and industrial environments.

Key Features:

• 40A inverter plasma cutting system with pilot arc striking
• Clean, rapid cuts without material deformation
• Cuts steel, stainless steel, aluminium, copper, and other conductive materials
• Compact, lightweight design for easy handling
• Rugged, impact-resistant casing for workshop and field use
• Visual air pressure gauge with metal protective cage
• Warning LED for torch voltage and consumable changes
• Automatic cooling for torch longevity
• Multiple built-in protections: thermostatic, overvoltage, undervoltage, overcurrent, and air failure
• Ideal for cutting hollow square tubing and sheet metal

Technical Data:

• Product Code: 816146
• Input Voltage: 230V (Single Phase)
• Mains Frequency: 50 / 60 Hz
• Current Range: 10 – 40 A
• Max Cutting Current (EN60974-1): 35A @ 30%
• Max No Load Voltage: 313V
• Max Absorbed Current: 25A
• Max Absorbed Power: 4kW
• Efficiency: 85%
• Power Factor: 0.7
• Max Cutting Thickness: 15 mm
• Compressed Air Capacity: 100 l/min
• Compressed Air Pressure: 4 – 5 bar
• Protection Rating: IP23
• Dimensions: 47.5 x 18.2 x 29.2 cm
• Weight: 9 kg

Kit Includes:

• 4m PH Plasma Torch
• Earth Lead

The Telwin Technology Plasma 41 XT Plasma Cutter is the ideal solution for professionals who require portability, performance, and precision. Its compact build, advanced safety features, and high cutting capacity make it a valuable addition to any workshop or on-site toolkit. Designed by Telwin, a trusted name in welding and cutting technology, this plasma cutter ensures maximum efficiency and superior results across a wide range of applications.
