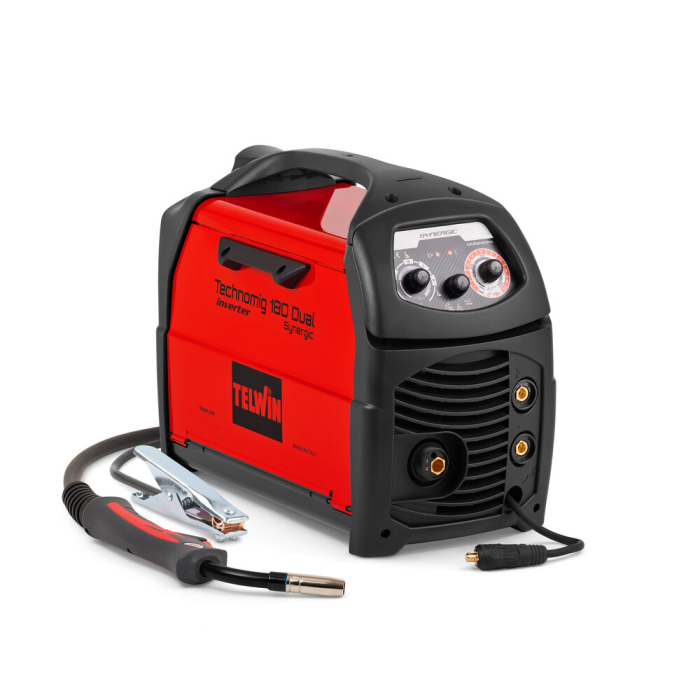

Telwin Technomig 180 Dual Synergic MIG Welding Machine

Telwin Technomig 180 Dual Synergic MIG Welding Machine.

The Telwin Technomig 180 Dual Synergic MIG Welding Machine is a compact and versatile multi-process inverter welder designed for MIG/MAG, FLUX, BRAZING, MMA and TIG DC-Lift welding applications. Ideal for fabrication workshops, vehicle body repair, maintenance work and on-site installation jobs, this intelligent welding machine delivers reliable performance on steel, stainless steel and aluminium. Featuring advanced ONE TOUCH synergic control, the Technomig 180 automatically adjusts welding parameters for smooth arc stability and consistent weld quality.

Features

• Multi-process inverter welder for MIG-MAG, FLUX, BRAZING, MMA and TIG DC-Lift welding
• Advanced microprocessor-controlled technology for precise welding performance
• ONE TOUCH synergic adjustment automatically sets welding parameters
• Suitable for welding steel, stainless steel and aluminium
• Ideal for fabrication, maintenance, installation and automotive body repair
• Manual arc length adjustment allows weld customisation to suit operator preference
• Compact and lightweight design for easy transport and site work
• Polarity reversal for GAS MIG-MAG and brazing applications
• Arc-force adjustment in MMA mode for improved electrode welding performance
• Euro torch connection for flexibility and easy torch replacement
• Protection systems include thermostatic, overvoltage, undervoltage and motorgenerator protection (+/-15%)
• Stable and intelligent arc control for consistent weld quality
• Suitable for indoor and outdoor welding applications

Technical Data

• Product Code: 816075
• Input Voltage: 230V Single Phase
• Mains Frequency: 50 / 60 Hz
• Maximum No Load Voltage: 44V
• Current Adjustment Range: 20 - 170A
• Maximum Current EN60974-1: 140A @ 20%
• Current at 35% Duty Cycle: 100A
• DC Current: 80A
• Maximum Absorbed Current: 22A
• Absorbed Current at 60%: 11A
• Maximum Absorbed Power: 3.2 kW
• Absorbed Power at 60%: 1.6 kW
• Fuse Requirement: 16A
• Efficiency: 86%
• Power Factor: 0.7
• Usable Electrode Diameter: 1.6 - 3.2mm
• Steel Wire Diameter: 0.6 - 0.8mm
• Stainless Steel Wire Diameter: 0.8mm
• Aluminium Wire Diameter: 0.8 - 1.0mm
• Flux Cored Wire Diameter: 0.8 - 1.2mm
• Brazing Wire Diameter: 0.8mm
• Protection Rating: IP23
• Dimensions: 460 x 240 x 360mm
• Weight: 11kg

Supplied Accessories

• MT15 3m MIG Torch
• Toledo 250A Work Clamp
• 1.8m Cable with Atlas Plug
• Disposable or refillable gas cylinder kit (depending on selected option)

The Telwin Technomig 180 Dual Synergic is an excellent choice for welders looking for a portable yet powerful synergic MIG welding machine with multi-process capability. Combining user-friendly controls with intelligent arc management, it delivers professional welding results across a wide range of materials and applications. Whether for workshop fabrication, automotive repair or site maintenance, the Technomig 180 offers flexibility, efficiency and dependable welding performance.
