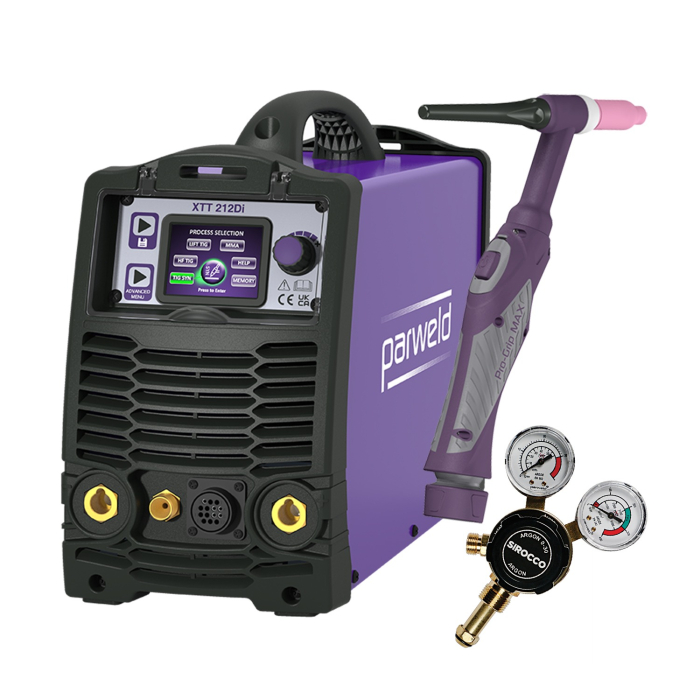

Parweld XTT 212DI AC/DC Pulsed TIG Inverter Welder Package
Versatile, portable, and packed with advanced features, the XTT 212DI AC/DC Pulsed TIG Welder is your all-in-one solution for high-precision welding. Designed for both workshop and on-site use, this dual voltage inverter delivers exceptional performance across HF TIG, Lift TIG, and MMA welding applications.
Package includes PRO26 TIG Torch, Argon/CO2 Regulator and other accessories.
Parweld XTT 212DI AC/DC Pulsed TIG Inverter Welder.
The XTT 212DI AC/DC Pulsed TIG Inverter Welder is a professional-grade welding machine built for precision, portability, and productivity. Whether you're tackling aluminium, stainless steel, or mild steel up to 6mm thick, this compact yet powerful 200A TIG welder adapts to your needs. Operating on both 110V and 230V input, it's ideal for both site work and workshop setups. The intuitive digital control panel with a multi-language interface makes configuration quick and easy—even for users with minimal process knowledge. With synergic TIG control, pulse functionality, and up to six memory slots for storing job parameters, this machine helps streamline workflow and improve weld quality.
Key Features
- Dual voltage operation (110V and 230V) for flexibility on-site and in the workshop
- AC/DC TIG welding with HF TIG, Lift TIG, and MMA capability
- Pulse TIG function for enhanced arc control and precision
- Synergic control simplifies TIG welding setup
- Square wave AC TIG for optimal performance on aluminium
- Adjustable pulse frequency (0.5–200Hz) and AC frequency (50–250Hz)
- Compact, lightweight design for portability
- Advanced front panel settings for customisation
- Memory function stores up to 6 welding jobs
- Optional water cooling with XTS 908 Unit Attachment
- Energy-efficient inverter technology
Technical Data
- Input Voltage: 110V / 230V, Single Phase
- Output Current (230V): 5–200A DC, 10–200A AC
- Output Current (110V): 5–140A DC, 10–140A AC
- Duty Cycle (230V): 200A @ 30%
- Duty Cycle (110V): 140A @ 40%
- Max Welding Current: 200A
- Pulse Frequency: 0.5–200Hz
- AC Frequency: 50–250Hz
- Cooling Type: Air-cooled (fan-forced) or optional water cooling
- KVA: 6.4
- Generator Requirement: 9 KVA (with AVC)
- Fuse Rating: 16A (230V) / 32A (110V)
- Weight: 12 kg
- Dimensions: 460 x 170 x 320 mm
- IP Rating: IP23S
- Compliance: ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS
- Warranty: 5 Years
Supplied With
- Pro-Grip Max 200A Air-Cooled TIG Torch (12.5ft)
- Parweld Argon/CO₂ Single Stage 2 Gauge Gas Regulator (E700123)
- 3m Input Power Cable
- 3m Earth Lead
- Gas Hose
Whether you're fabricating in the workshop or welding on-site, the XTT 212DI gives you the control and flexibility to produce high-quality results every time. Its dual voltage compatibility, compact size, and extensive features make it the perfect choice for professionals working with aluminium, stainless steel, and more. With advanced pulse TIG and synergic control modes, achieving precision welds has never been easier.
| Brand | Parweld |
|---|
