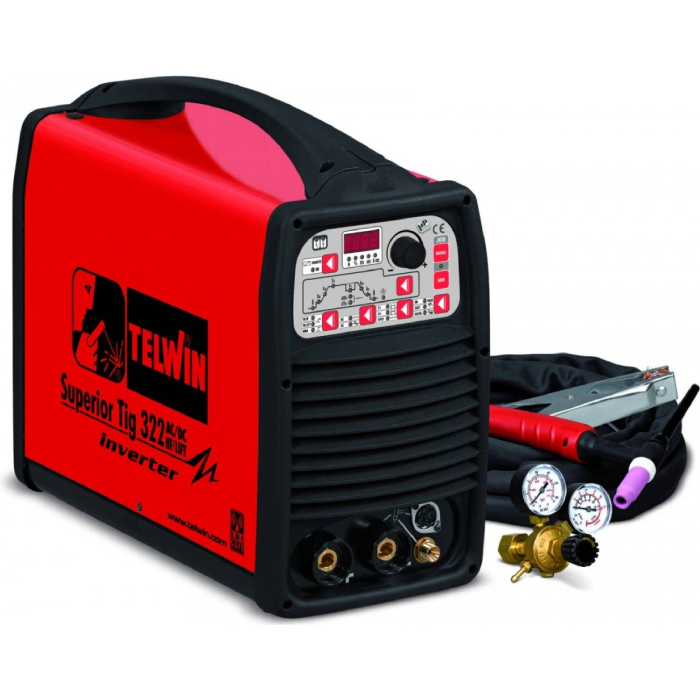

Telwin Superior TIG 322 AC/DC - HF/Lift Welder 415v
Achieve precise, professional results with the Telwin Superior TIG 322 AC/DC welder. This microprocessor-controlled welding machine delivers versatility and reliability for TIG and MMA welding in both direct and alternating currents. Ideal for use with materials like steel, stainless steel, aluminium, and more, it’s a go-to solution for a variety of welding applications.
Telwin Superior TIG 322 AC/DC - HF/Lift Welder 415v.
The Telwin Superior TIG 322 AC/DC is engineered for versatility and precision. With advanced features like pulse and EASY pulse operations, it offers customizable options for tackling complex welding tasks. Whether you’re working on aluminium, titanium, or alloys, this three-phase inverter welder ensures exceptional efficiency and performance. Equipped with a high-frequency or Lift TIG start, it supports smooth operation across a range of welding styles. Robust protective features and convenient controls make it a reliable choice for workshops and demanding job sites alike.
Key Features:
- TIG and MMA versatility: High-frequency (HF) or Lift TIG striking options.
- Wide material compatibility: Ideal for welding steel, aluminium, copper, titanium, and alloys.
- Advanced TIG functionality: Includes bi-level, start-up/end current, spot welding, pre/post gas control, and AC/DC balance.
- Enhanced MMA options: Features arc force and hot start settings tailored to electrode type.
- EASY pulse operation: Simplifies pulse welding for added precision.
- Programmable memory: Store up to 9 custom welding programs and view the last 10 alarms on the onboard E2PROM.
- Safety and reliability: Protected against overvoltage, undervoltage, overheating, phase failure, and dirt contamination.
- Cooling compatibility: G.R.A. water cooling connector for optimal temperature management.
- Remote control capability: Supports remote operation for enhanced convenience.
Technical Specifications:
- Phase: Three-phase
- Frequency: 50/60 Hz
- Voltage: 400V
- Efficiency: 85%
- Protection Class: IP23
- No-Load Voltage: 64V
- Current Regulation Range: 5–270A
- Electrode Diameter: 1.6–5mm
- Welding Types: MMA / TIG
- Max Welding Current: 270A
- Dimensions (L x W x H): 530mm x 240mm x 450mm
- Weight: 34kg
Whether you're a professional fabricator or a workshop technician, the Telwin Superior TIG 322 AC/DC welder is built to deliver outstanding performance every time. With advanced features, robust construction, and precise controls, this machine ensures reliability and ease of use. Tackle demanding tasks with confidence and take your welding capabilities to the next level with Telwin.
| Brand | Telwin |
|---|
