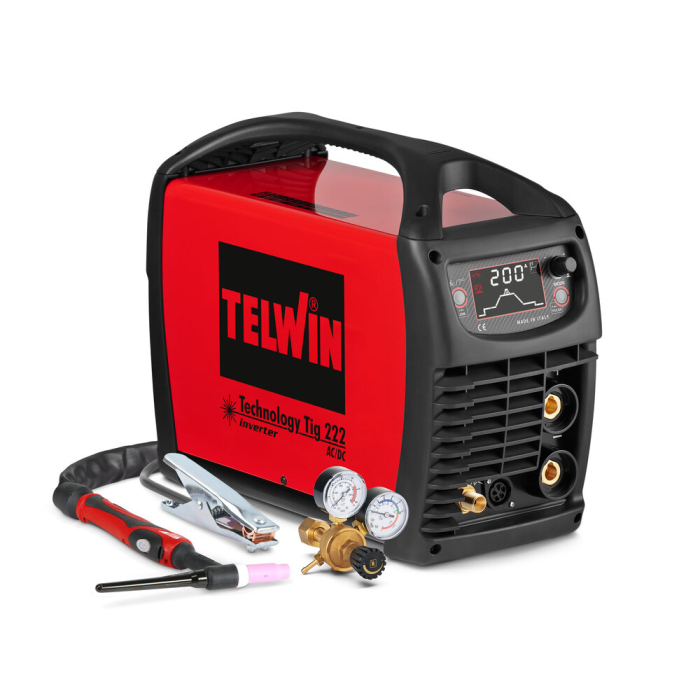

Telwin Technology TIG 222 AC/DC + ACC Inverter Welder
The TECHNOLOGY TIG 222 AC/DC + ACC. is a versatile TIG and MMA inverter welding machine designed for precise, reliable welding across various materials. With advanced features like PULSE, EASY PULSE, THINSPOT, and MIX AC-DC, it ensures exceptional performance on both thin and heavy workpieces. Compact, durable, and packed with user-friendly functionality, it’s the perfect solution for professional welders.
Telwin Technology TIG 222 AC/DC + ACC Inverter Welder.
The TECHNOLOGY TIG 222 AC/DC + ACC. is a state-of-the-art TIG and MMA inverter welding machine engineered to deliver outstanding results across a wide range of materials, including steel, stainless steel, aluminium, titanium, and more. Equipped with advanced welding technologies such as PULSE and EASY PULSE modes, this machine guarantees superior arc stability, minimal material deformation, and excellent precision even on the thinnest sheets. Its robust construction and innovative cooling system make it ideal for demanding workshop environments, while the intuitive LCD display ensures effortless control over welding parameters.
Features:
TIG Welding:
- Operates in standard PULSE and EASY PULSE modes.
- Adjustable settings: pre-heating electrode, initial/final current, spot time, pre/post gas, current ramps, DC/AC balance, and square wave frequency.
- Advanced functions:
- THINSPOT for precise spot welding of thin sheet metal.
- MIX AC-DC to heat and prepare workpieces for AC welding.
- 10 customizable welding programs for convenience.
- Supports PRO torches and remote controls.
- Optimized low-current start-up for HF/LIFT operations.
MMA Welding:
- Operates in continuous and PULSE (MMA PULSE) modes.
- Features hot start, arc force adjustment, and anti-stick protection.
- Includes VRD (Voltage Reduction Device) for added safety.
Other Features:
- Intuitive LCD screen for easy interaction and parameter adjustment.
- Robust cooling system with a dedicated air tunnel to protect against dust and dirt.
- Operates efficiently under voltage fluctuations (±15%).
- Compact and durable design for portability and reduced workspace requirements.
- Built-in protections: thermostatic, overvoltage, undervoltage, and overcurrent.
Technical Data:
- Input Voltage: 230V (Single Phase)
- Frequency: 50/60 Hz
- Current Range: 5–200 A
- Max Current: 200 A @ 35%
- DC Current: 125 A
- Max No-Load Voltage: 66 V
- Power Consumption at Max: 5.2 kW
- Efficiency: 82%
- Power Factor: 0.69
- Electrode Size Range: 1.6–4 mm (DC mode)
- Protection Degree: IP23
- Dimensions: 47 x 19 x 35 cm
- Weight: 16.55 kg
Whether you're working on thin sheet metal, intricate welding projects, or heavy-duty applications, the TECHNOLOGY TIG 222 AC/DC + ACC. offers unparalleled versatility, precision, and reliability. Its advanced features and robust design make it a valuable addition to any professional workshop. Invest in a welding solution that combines performance, durability, and ease of use to meet the highest industry standards.
