Argon Disposable Gas Cylinder & Regulator Package

Argon Disposable Gas Cylinder & Regulator Package.

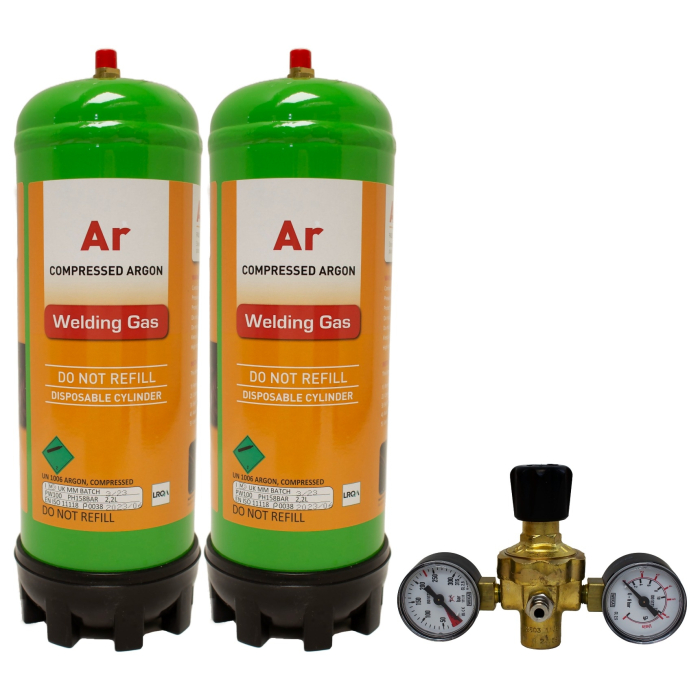

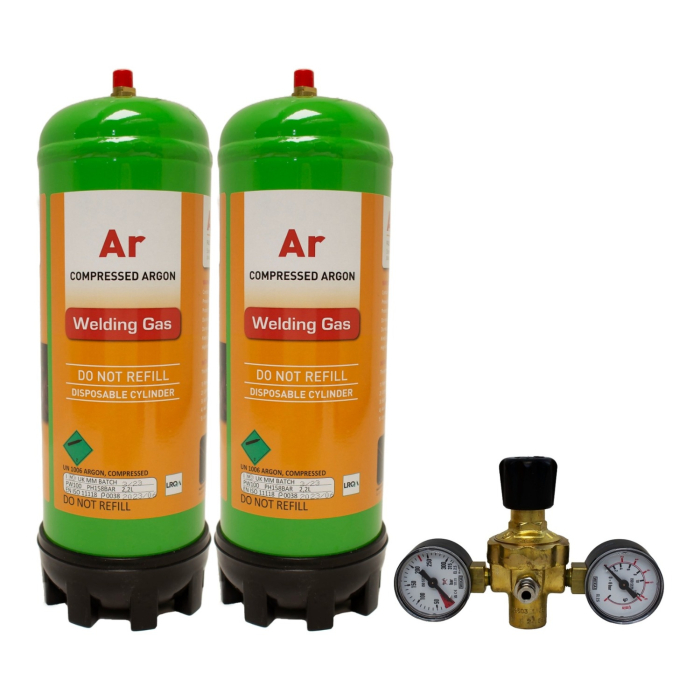

Package includes two cylinders and a twin gauge regulator showing contents and gas flow in LPM.

Argon disposable gas bottles are suitable for most portable TIG and MIG welding machines for welding Aluminium & Stainless. Disposable Argon gas bottles are a handy, cost effective alternative to stationary industrial size gas cylinders.

Ordering for your Zapp Permanent Jewellery Welder? You may need an adaptor kit:

Hose Adaptor Kit (weldingsuperstore.co.uk)

Cylinder Details

Disposable Argon gas bottles are ideal for those situations where you don't use a lot of gas but need to have it for a particular job, or people who don't want to be tied into a gas contract. Ideal for taking on site for small odd jobs.

2.2Ltr Argon gas bottle (220 Litre) offers up to 55 minutes of welding time at 4Ltr/Min (gas flow rate)or 30minutes use at 6ltr/Min.

Most important factor when using the disposable gas bottles is to set the gas flow to the bare minimum, to obtain the maximum gas usage & welding time

• Volume: 2,2 Litres
• Pressure to +20C: 100 bar (220 Litre)
• Test Pressure (Ph): 120bar
• Dimension (mm): Diam. 102 x Length 300
• Weight/Tare (gr): 1745
• Material: Steel P355NB EN 10120
• Valve: Uni EN 10297 - UNI EN 13340
• Non Refillable Gas Bottle: EN 12205 TPED

Regulator Details

• Features:

  • Twin gauges for cylinder contents and outlet pressure.
  • Fitted with 4mm push fit hose connector (additional adaptor available, see related products)
  • Reliable and safe, fitted with a relief valve which ensures safe venting of pressures.

  Data Specifications:

  • Inlet Pressure 150 bar
  • Outlet pressure 0-6 bar
  • Standard delivery flow <1m3/h
  • Connection M10x1Rh
