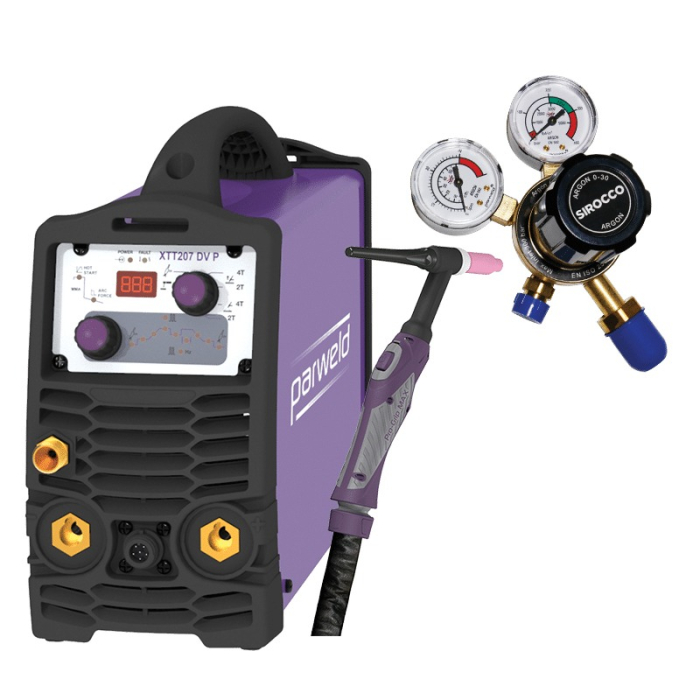

Parweld XTT 207 DV Pulsed TIG Inverter Package

Parweld XTT 207 DV Pulsed TIG Inverter Package.

Engineered for versatility and control, the Parweld XTT 207 DV Pulsed TIG Inverter Package delivers reliable welding performance for professionals working with steel, stainless steel, alloys, and titanium. Its dual-voltage capability (110V/230V), combined with a pulsed TIG function, ensures superior arc control, reduced heat input, and improved weld penetration. Compact, lightweight, and generator-friendly, the XTT 207 DV is designed to withstand demanding workshop and site environments while maintaining consistent output and weld quality.

Key Features

• Dual Voltage – 110V / 230V single-phase input
• 200A @ 35% duty cycle for demanding applications
• TIG welds steel and stainless steel up to 6mm thickness
• Advanced pulse function for better arc control and reduced heat distortion
• MMA mode supports electrodes up to 4.8mm
• Lightweight and portable – only 8kg with carry handle and strap
• Generator-friendly operation (requires 13 KVA with AVC)
• Adjustable TIG parameters for precision welding
• Latching trigger option (TIG mode)
• Adjustable down slope function for cleaner weld finishes
• Rugged metal case for workshop and site durability

Technical Data

• Weight: 8kg
• Dimensions: 376 × 136 × 240mm
• Machine Style: Compact Inverter
• Phase: Single Phase
• Output Current (230V): 5-200A DC
• Output Current (110V): 5-160A DC
• Maximum Current: 5-200A DC
• Duty Cycle: 160A @ 40% / 200A @ 35%
• Input Voltage: 110V 1P, 230V 1P
• Input Current (Eff): 16A (110V), 28.5A (230V)
• Minimum Fuse Rating: 16A / 32A
• KVA Requirement: 10
• Generator Size (AVC Required): 13 KVA
• Pulse Frequency: 0.5–100Hz
• Pre-Flow Function: 0–10s
• Post-Flow Function: 0–10s
• Cooling: Air, Fan, Forced
• Enclosure Protection: IP23S
• Conforms To: IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS compliant
• Warranty: 5 Years

Supplied With

• PRO-grip MAX 26 TIG torch
• Argon regulator
• 3m input cable
• 3m earth lead
• Gas hose

The Parweld XTT 207 DV Pulsed TIG Inverter Package is an excellent choice for welders needing portability, flexibility, and precision in one durable machine. Whether for light industrial manufacturing, site use, or sheet metal applications, this inverter provides consistent performance with advanced TIG and MMA functionality. Backed by a 5-year warranty, it’s a dependable investment for professional welding setups.
